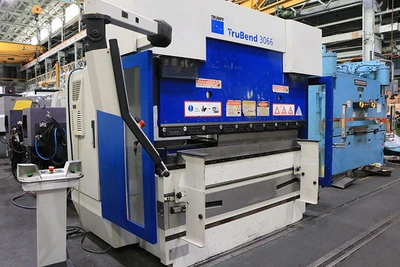

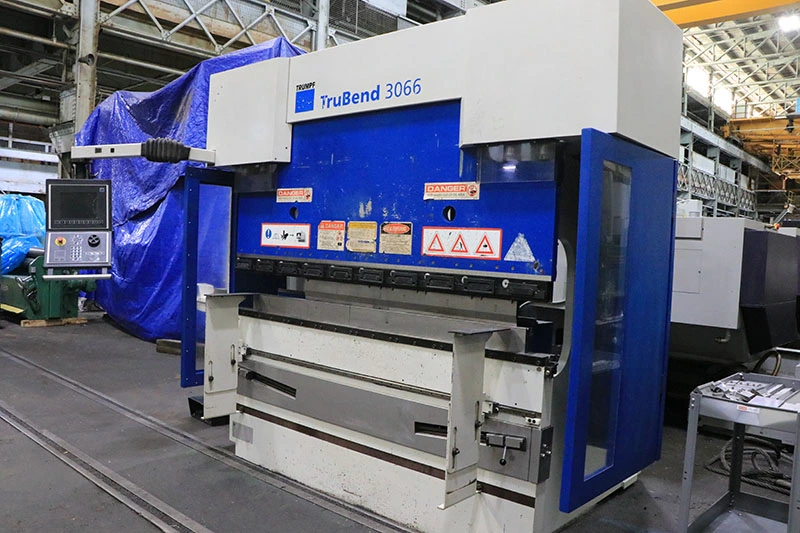

USED 2006 Trumpf TRUBEND 3066

73 Ton 80" Bed Trumpf TRUBEND 3066 PRESS BRAKE

73 TON X 80" TRUMPF HYDRAULIC PRESS BRAKE

MODEL TRUBEND 3066        S/N B0203A0096        NEW 2006

TONNAGE ......................... 73

BED LENGTH .. ................... 80"

DISTANCE BETWEEN HOUSINGS ....... 69"

LENGTH BETWEEN THE HOUSINGS ..... 93"

STROKE .......................... 7.87"

OPEN HEIGHT ..................... 14"

CLOSED HEIGHT ................... 5.9"

Y-AXIS RAPID DOWNWARD MOVEMENT .. 200 MM / SEC.

Y-AXIS OPERATIONAL SPEED MAX .... 15 MM /SEC.

PRESS SPEEDS: RAPID ADVANCE ..... 472 IPM

              BENDING ........... 35 IPM

              RETURN ............ 472 IPM

MAIN MOTOR HP ................... 10

MAX OPERATING PRESSURE  ......... 4,466 PSI

MOTOR SPECS ..................... 3 PH / 460 V

APPROX. WEIGHT: 12,500 LBS.

APRROX DIMENSIONS: 102" X 69" X 92" H

EQUIPPED WITH:

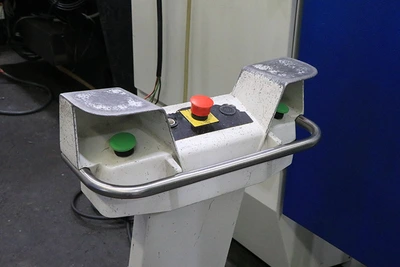

- PALM BUTTONS MOUNTED ON PEDISTAL STATION WITH FOOT PEDAL

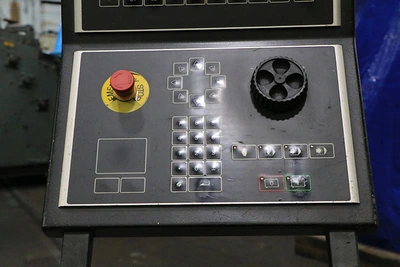

- DELEM DA-65TW GRAPHIC CONTROL

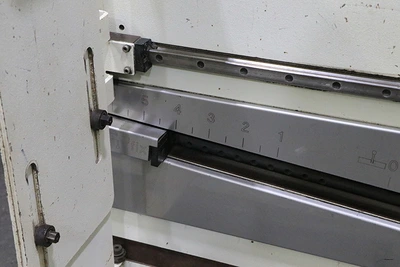

- TRUMPF CNC MULTI-AXIS BACK GAUGE (X, Y, R, Z1, Z2)

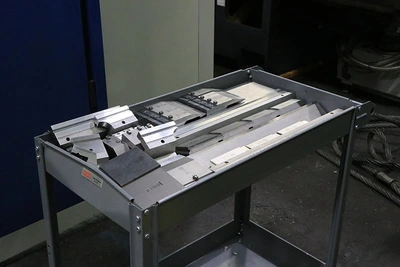

- MISC. TOOLING

FOR MORE INFORMATION: Call Rick at 973-497-7560
