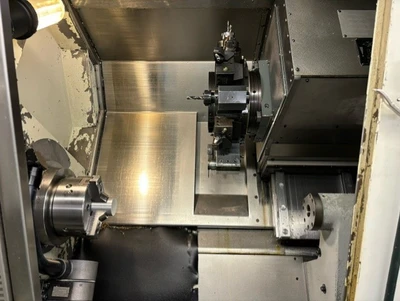

USED 2005 Gildemeister CTX-320

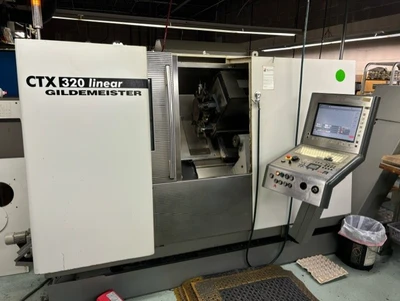

Gildemeister CTX-320 CNC LATHE, Heidenhain

GILDEMEISTER CTX-320 MULTI-AXIS TURNING CENTER

NEW: 2005

SPECIFICATIONS:

SWING OVER BED ................. 15.74"

SWING OVER CROSS SLIDE ......... 11.81"

MAX. TURNING DIAMETER .......... 9.68"

DISTANCE BETWEEN CENTERS ....... 23.6"

BAR CAPACITY ................... 1.96"

X-AXIS TRAVEL .................. 8.26"

Z-AXIS TRAVEL .................. 17.71"

MAX. SPINDLE SPEED ............. 6000 RPM

SPINDLE POWER .................. 16kW

TAILSTOCK TRAVEL ............... 15.74"

TURRET TYPE .................... SAUTER 05.456.416

NUMBER OF TOOLS ................ 12 (ALL STATIONS DRIVEN)

TOOL SYSTEM .................... VDI 30 (AXIAL)

DRIVEN TOOLS SPEED ............. 5000 RPM

C-AXIS INDEXING ................ 0.001 DEGREE

APPROX. DIMENSIONS ............. 153" X 62" X 75"

APPROX. WEIGHT ................. 9,000 LBS

EQUIPPED WITH:

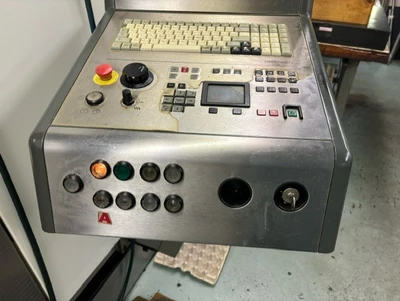

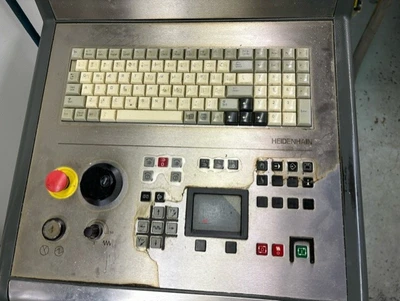

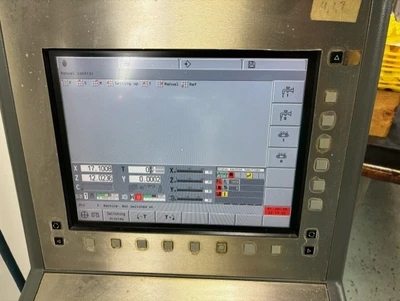

  - HEIDENHAIN CNC CONTROL

  - C & Y AXES

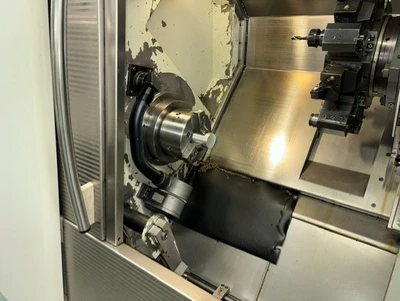

  - 8" SMW HYD. CHUCK

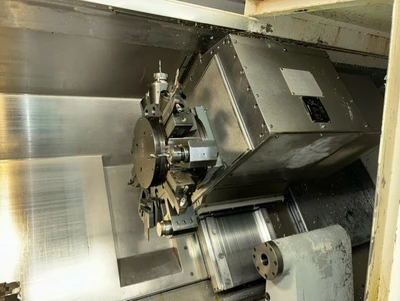

  - 12 POSITION TURRET

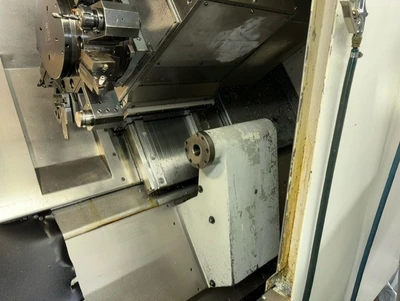

  - TAILSTOCK

  - CHIP CONVEYOR

  - LIVE TOOLHOLDERS

  - ALL AVAILABLE STANDARD TOOLHOLDERS

  - ALL AVAILABLE MANUALS

  - LNS QUICKLOAD 60 BARFEED

* SAUTER TURRET LEAKS, IT INDEXES BUT MAY NEED TO BE REBUILT *

Video Links: https://youtube.com/shorts/OoMH6qKjqrs?si=KHR3IZoH-GnrC0XW

Video Link: https://youtu.be/VmthM_SDogk?si=HoWMCyUxzlzyoBUS

Video Link: https://youtube.com/shorts/H87xUQR7Fb4?si=udCsVQiEvlq-Zl2r

FOR MORE INFORMATION: Call Mike at 973-497-7540
