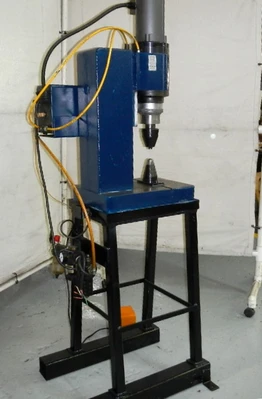

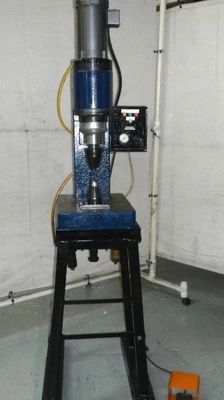

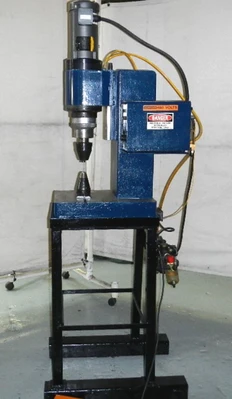

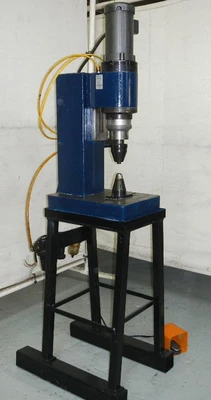

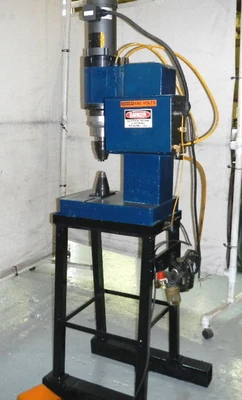

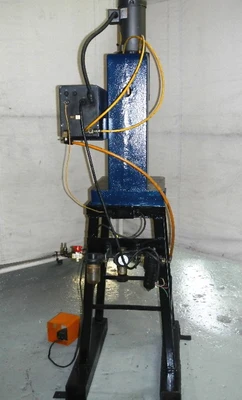

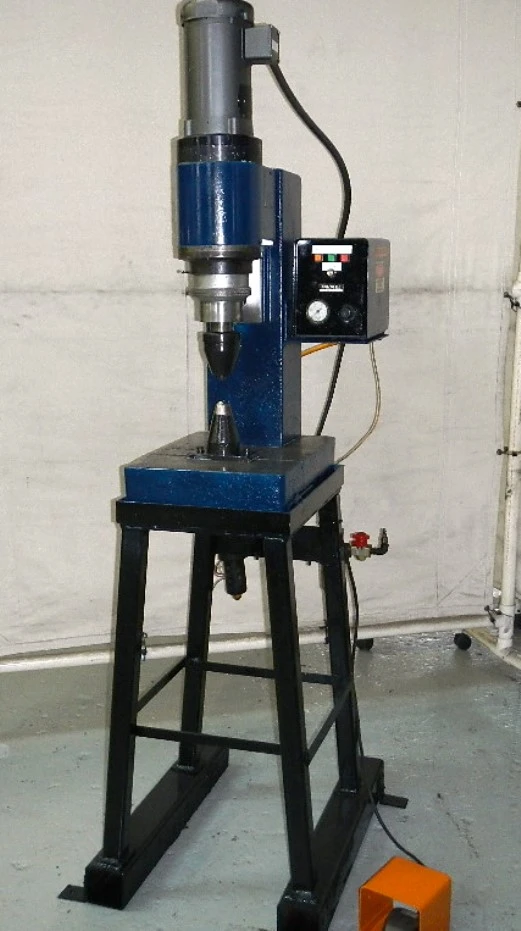

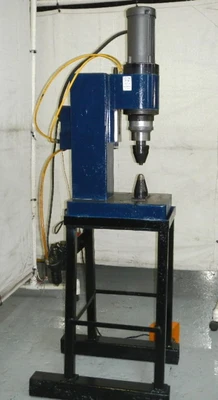

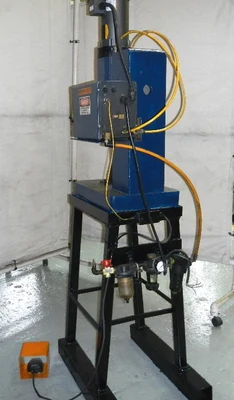

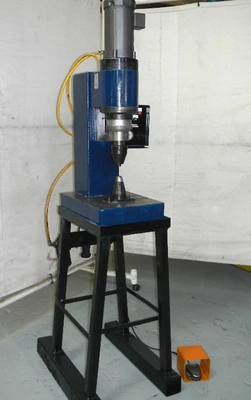

USED 2000 Taumel T-501

0.55" Rivet Cap 6.6" Throat Taumel T-501 RIVETER

.55" TAUMEL ORBITAL HEAD FORMING MACHINE*

MODEL T-501        S/N MAJ-115       NEW 2000

Stroke ................... 0-1.50" by .001" Increments

Force .................... 5,300 lbs @ 100% PSI

Capacity ................. .55"

Throat ................... 6.6"

Bed Size ................. 14" Deep x 18" Wide

Cycle Time Programmable .. 0-5.0 Seconds

Floor to Table Distance .. 42 1/2"

Air Supply ............... 10-100 PSI

Motor .................... 3/4 HP

Weight 600 Lbs.

Dimensions 24" x 31" x 80" H

Machine is equipped with:

- Remote foot pedaL

- Infinitely adjustable cycle time

- Infinitely adjustable headforming pressure

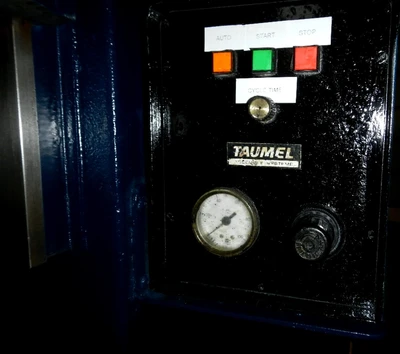

- Built-in pressure indicator

- Integral micrometer stroke adjustment

- Height (coarse) adjustment

- Fully automatic or semi-automatic cycling

- Built-In circuitry for two-handed safety controls

- Choice of proximity touch pads for cycle activation

- Simple tooling set-up

- Long tool life

*PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION

** Located in our Harrison,NJ Warehosue **

FOR MORE INFORMATION: Call Rick at 973-497-7560
