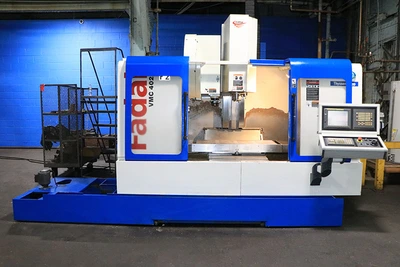

USED 2004 Fadal VMC 4020HT

40" X Axis 20" Y Axis Fadal VMC 4020HT VERTICAL MACHINING CENTER, Fanuc 18i-MB5 Control, 24 ATC, CT40, Box Ways,

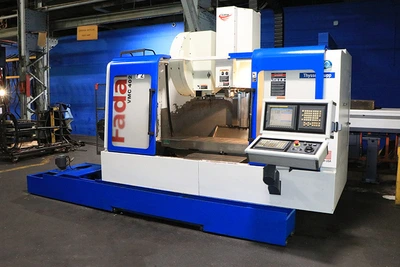

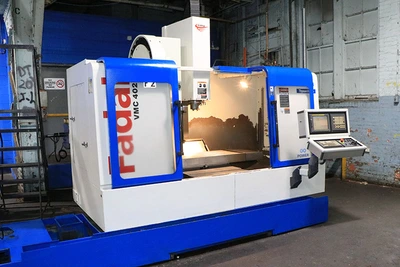

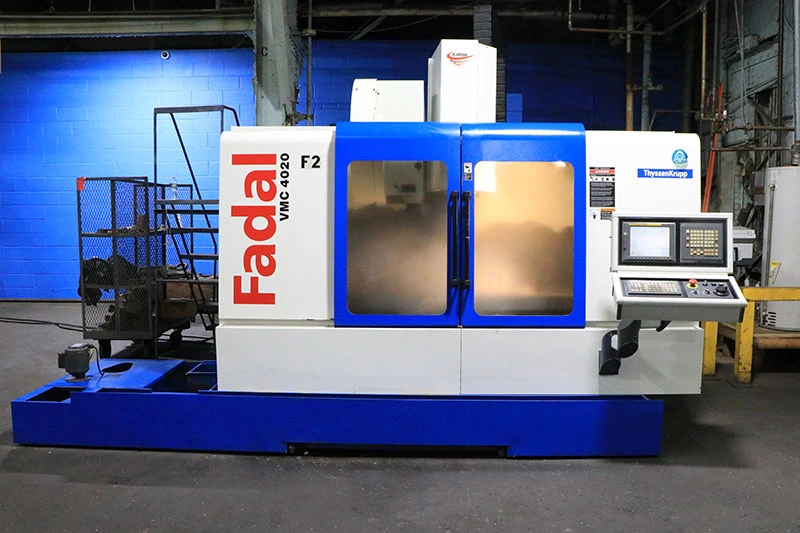

FADAL VERTICAL MACHINING CENTER

MODEL: VMC 4020 HT, S/N: 012004086731, NEW: 2004

SPECIFICATIONS:

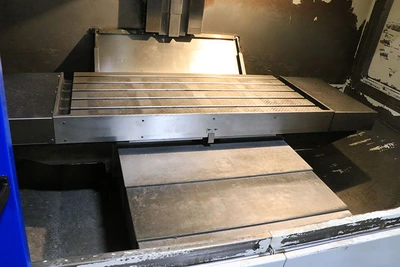

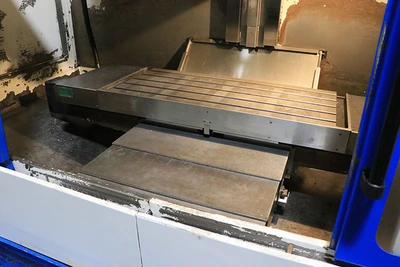

TABLE WORKING SURFACE ................. 20" X 48"

FLOOR TO TABLE SURFACE ................ 32"

T-SLOTS (# X WIDTH X SPAN) ............ 5 X .709" X 3.75"

MAXIMUM WEIGHT ON TABLE ............... 3,641 LBS.

TABLE TRAVEL, X-AXIS (LONGITUDINAL) ... 40"

TABLE TRAVEL, Y-AXIS (CROSS) .......... 20"

VERTICAL COLUMN TRAVEL (Z-AXIS) ....... 20"

MIN/MAX DISTANCE, SPINDLE NOSE TO TABLE 4"/24"

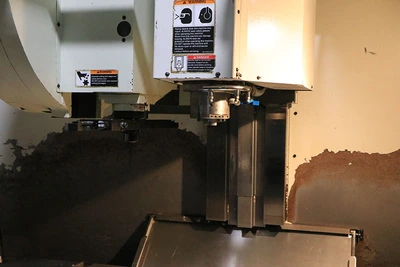

SPINDLE TAPER ......................... CAT 40

NUMBER OF TOOLS ....................... 30

SPINDLE SPEEDS, TWO GEARED RANGES ..... 10 TO 10,000 R.P.M.

SPINDLE CENTER TO COLUMN WAYS ......... 20"

SPINDLE TORQUE ........................ 220 FT./LBS.

CUTTING FEED RATES, (X,Y, & Z AXES) ... 0.01 TO 400 I.P.M.

RAPID FEED RATE, (X & Y AXES) ......... 900 I.P.M.

RAPID FEED RATE (Z-AXIS) .............. 600 I.P.M.

MAXIMUM TOOL DIAMETER ................. 3"

...W/O ADJACENT TOOLS ................. 6"

MAXIMUM TOOL LENGTH ................... 15"

MAXIMUM TOOL WEIGHT ................... 15 LBS.

APPROX DIMS ........................... 117" x 94" x 100"

APPROX WEIGHT ......................... 11,000 Lbs.

EQUIPPED WITH:

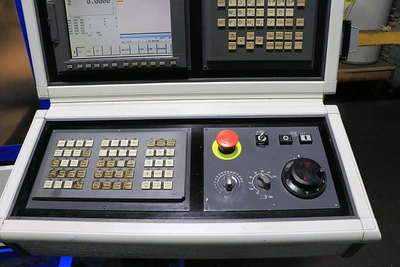

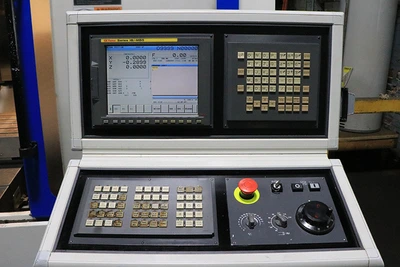

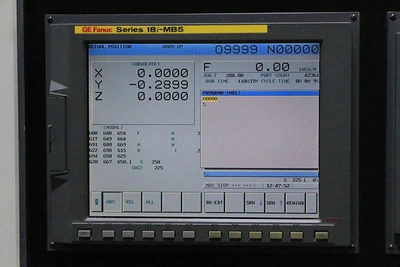

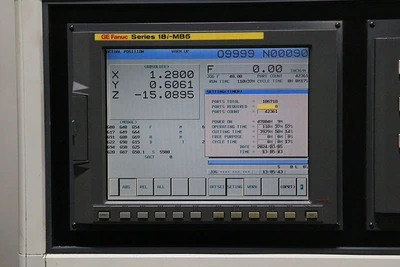

- FANUC MODEL: 18i-MB5 CNC CONTROL

    HIGH SPEED CPU

- 10,000 R.P.M. HIGH TORQUE SPINDLE OPTION

- AUTOMATIC TOOL CHANGER (24) STATIONS

- RIGID TAPPING

- BOX WAYS ON ALL AXES

- AC SERVO MOTORS ON ALL AXES

- BIJUR AUTOMATIC LUBRICATION SYSTEM

- EXTERNAL COOLANT PUMP AND TANK

- 24 HORSE POWER AC DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call Sales at 973-497-7510
