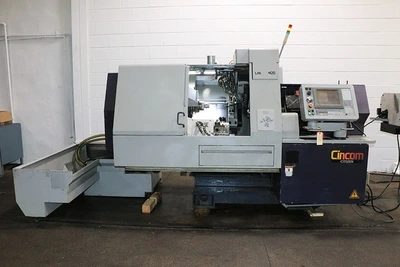

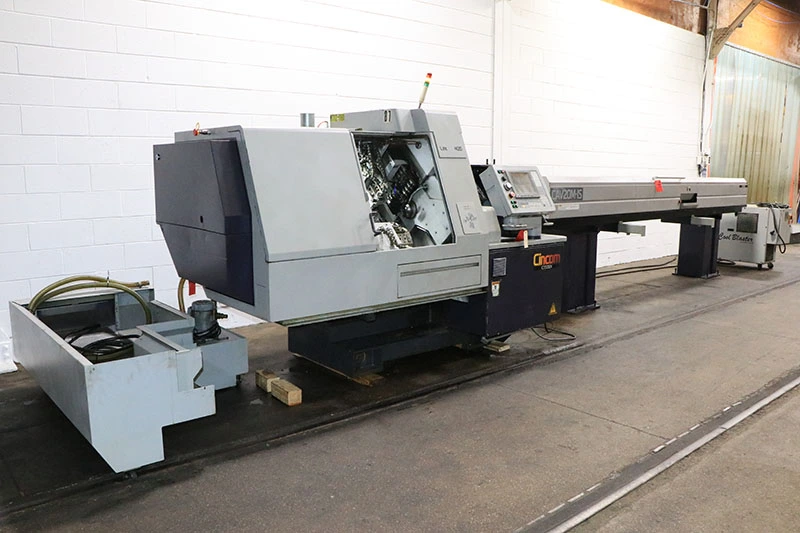

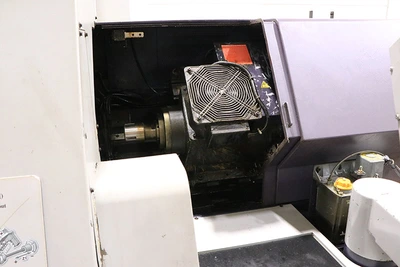

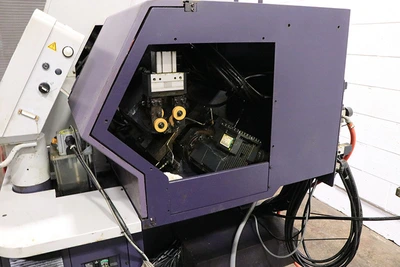

USED 2003 Citizen M-20 III

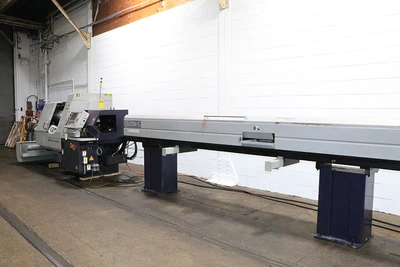

0.75" Dia. Citizen M-20 III CNC SWISS TYPE LATHE, Cool Blaster High Pressure, CAV 20M-IS Barloader

CITIZEN M-20III SWISS TYPE CNC LATHE

NEW: 2003

VIDEO LINK: https://youtu.be/-lrG0bDapSg?si=y9FPyQKmd91Abro3

General Specifications from Citizen M20 Type 3 (3M3) from Brochure

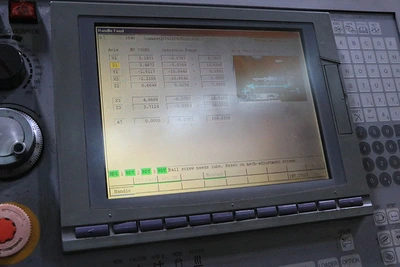

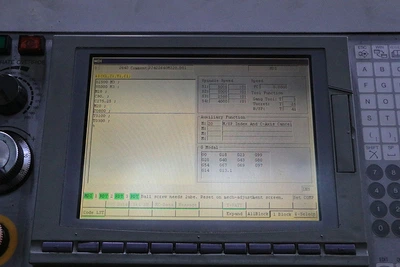

CNC Control: Cincom M6B (Mitsubishi 635LCC)

Axes: X1,Y1,Z1,C1,X2,Z2,C2,X3,Z3 (misc Axes: TI, A1,A2,A3)

Max. machining diameter: 3/4" (20mm)

Max. machining length per chucking: 12.59" (320mm)

Main spindle speeds: 200 - 10,000 rpm

Rotary tool speeds: (turret & gang plate): 200 - 5000 rpm

Backworking: Max. chucking dia: 3/4" (20mm)

Max. backwork length: 5.70" (145mm)

Max. drilling/tapping: M8

Back spindle speeds: 200 - 8000 rpm

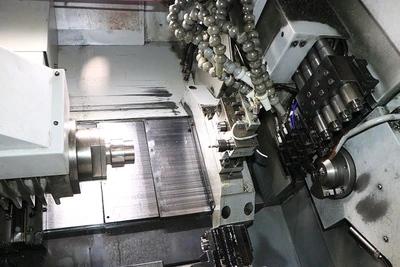

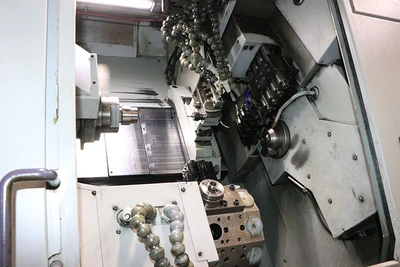

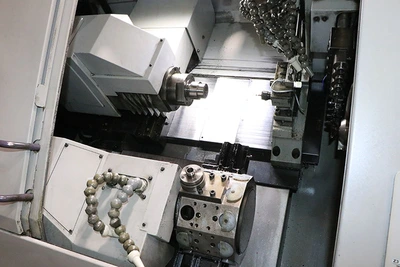

Tooling Set-up: Turret tooling: 12 (24 in half index mode)

Gang-tool tooling: 5 turning 4 rotary

Back Spindle tool post: 3 (rear facing tools)

Tool sizes: Gang tooling / turret: 16 x 16 x 130mm / 16 x 16 x 90mm

Motors: Main spindle drive: 5 / 7.5 hp

Rotary tool / Back Spindle Motors: 2 hp / 3HP

Weight & Dimensions (approx.): 6100 lbs / 110" x 50" x 72"h

Equipped With:

 - CINCOM M6B CNC CONTROL

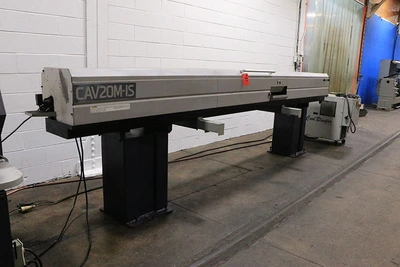

 - CAV 20M-IS MAGAZINE BARFEED

 - COOLBLASTER HIGH PRESSURE COOLANT

 - FULL C-AXIS MAIN & SUBSPINDLES

FOR MORE INFORMATION: Call Mike at 973-497-7540
