USED 2013 Ganesh CYCLONE NCY-32

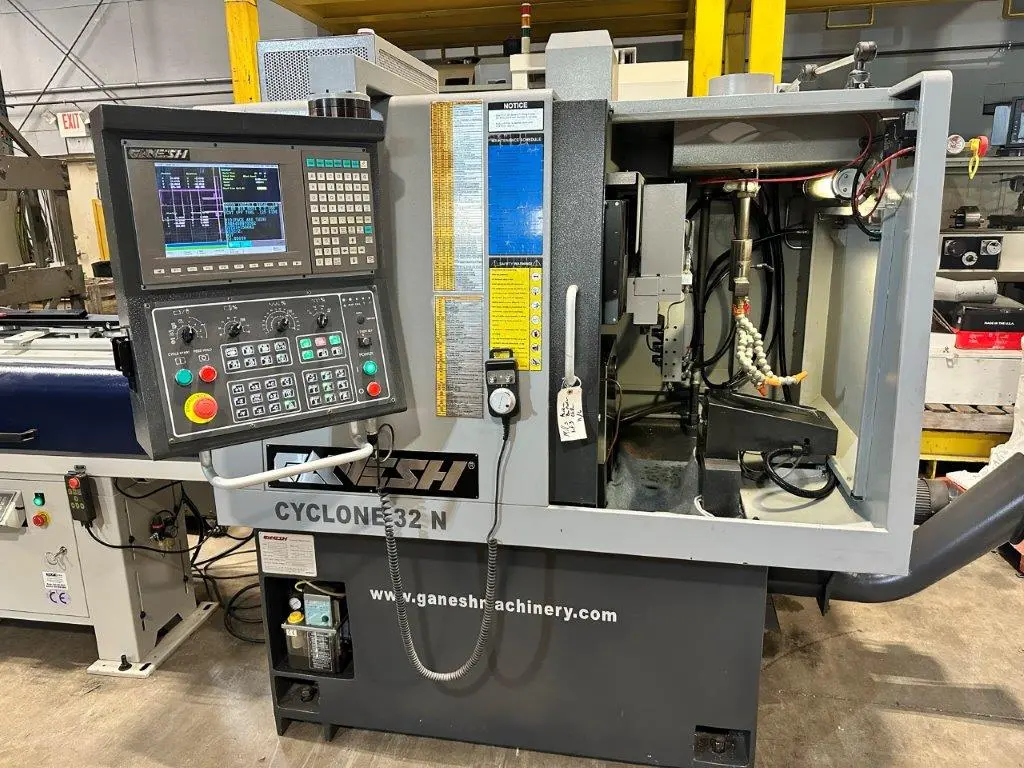

Ganesh CYCLONE NCY-32 CNC LATHE

GANESH CYCLONE 32-NCY CNC TURNING CENTER

NEW: 2013

VIDEO LINK: https://youtu.be/CWjkkYRdw_c?si=HtKzoZMt8qNH5HMv

SPECIFICATIONS:

AXIS CONTROLS:

CNC CONTROLLED AXIS ................... 4-Axis(X,Y,Z,C)

X-AXIS TRAVEL (Vertical Tool) ......... 7.5" Linear Ways

Y-AXIS TRAVEL (Cross Tool) ............ 19.3" Linear Ways

Z-AXIS TRAVEL (Sliding Headstock)...... 6.5" Linear Ways

C-AXIS TRAVEL (Rotational Axis) ....... 360 Degrees

SPINDLE:

DRAW TUBE ID .......................... 1.456"

TRAUB A-32 COLLET CAPACITY ............ 1.25"

SPINDLE SPEED RANGE ................... 100-6,000 RPM

SPINDLE HORSEPOWER .................... 10 HP (7.5kW)

SPINDLE CENTER HEIGHT ................. 38"

RIGID TAPPING ON MAIN SPINDLE ......... YES

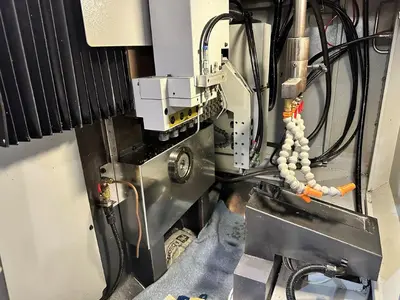

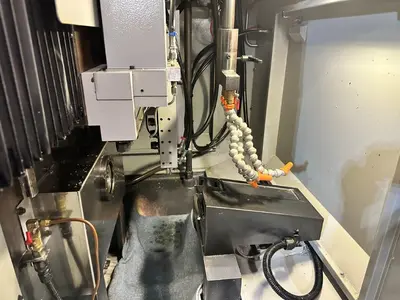

TOOLING SYSTEM:

NUMBER AND SIZE OF TOOLING STATIONS ... 6 TOOLS of 1/2"

NUMBER OF INTERNAL STATIC TOOLS ....... 5 ID TOOL STATIONS

ID TOOL BORES (Round Shank) ........... 25mm Bore for ER-20

DRIVEN TOOL SYSTEM:

NUMBER OF CROSS WORKING DRIVEN TOOLS .. 4-Cross Driven

NUMBER OF END WORKING LIVE TOOLS ...... 3-Axial Driven

SIZE OF DRIVEN TOOLS (Round Shank) .... ER-20, 1/16"-1/2"

RIGID TAPPING w/DRIVEN TOOLS .......... Included

DRIVEN TOOL PROGRAMMABLE RANGE ........ 0-4000 RPM

DRIVEN TOOL HP ........................ Radial 2.0HP

AXIS DRIVES

RAPID TRAVERSE RATE X,Y & Z Axis ...... 1181 IPM

C-AXIS RESOLUTION ..................... 0.001 Degrees

SYSTEM REQUIREMENTS:

ELECTRICAL REQUIREMENTS ............... 16 KVA - 42 Amps

MACHINE DIMENSIONS:

FLOOR SPACE ........................... 86" x 74" x 76"

MACHINE NET WEIGHT .................... 6,175 LBS.

EQUIPPED WITH:

 - MITSUBISHI CNC CONTROL

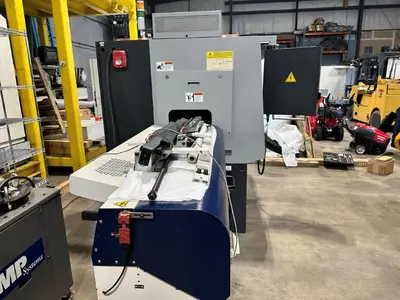

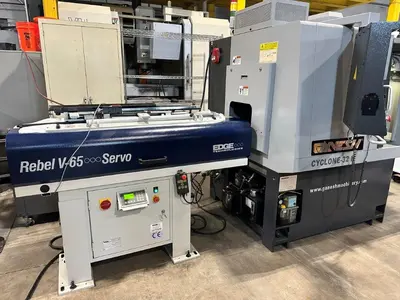

 - EDGE REBEL V65 MAGAZINE BARLOADER

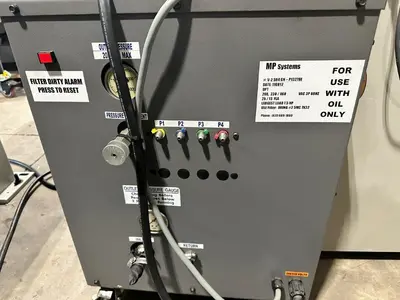

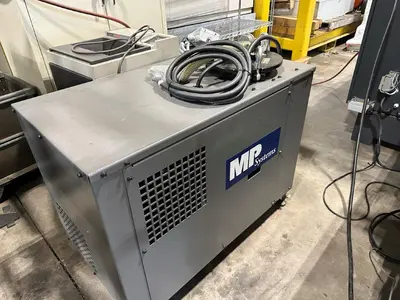

 - MP 1000 PSI HIGH PRESSURE COOLANT

 - PARTS CATCHER

FOR MORE INFORMATION: Call Mike at 973-497-7540
