USED 1980 Wysong 150-6

150 Ton 96" Bed Wysong 150-6 PRESS BRAKE

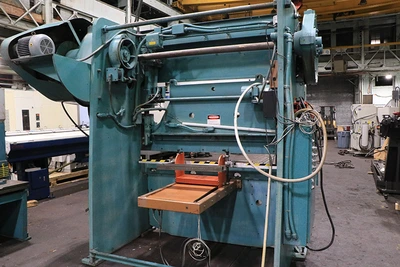

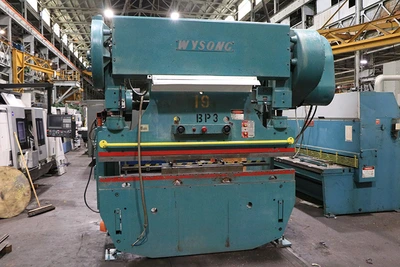

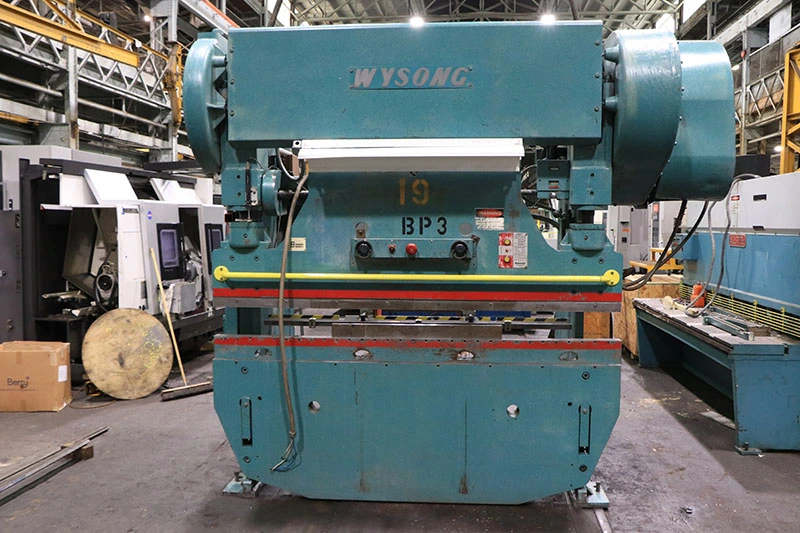

8' x 150 Ton WYSONG Mechanical Press Brake

MODEL 150-6        S/N PB21-124         NEW 1980

Overall length of bed and ram ........ 8'

Clear distance between housings ...... 6'6"

Bending capacity ..................... 8' x 1/4"

Tonnage at mid stroke ................ 100 ton

Tonnage near bottom of stroke ........ 150 ton

Stroke of ram ........................ 3"

Motorized ram adjustment ............. 5"

Speed ................................ 30 S.P.M.

Die space ............................ 12"

Throat depth ......................... 8-1/2"

Motor ................................ 10 HP

Equipped with:

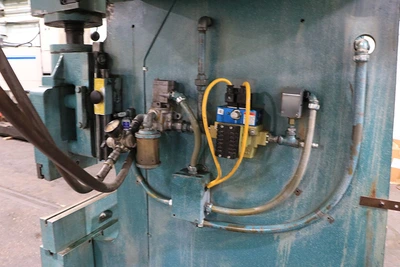

- Air Clutch

- Automatic speed selector with Hi-Lo speed cycle

control

- Motorized ram adjustment w/1-1/2 HP Motor

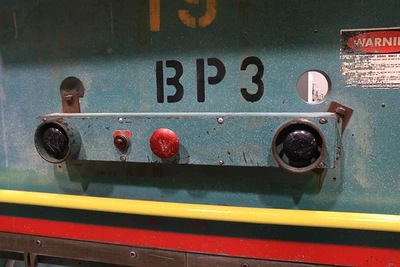

- Ram mounted dual electric palm buttons

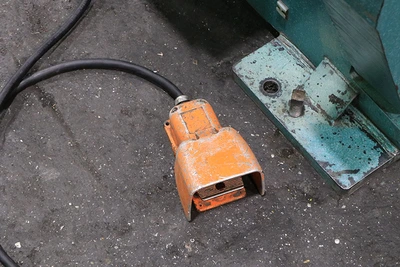

- Electric foot pedal

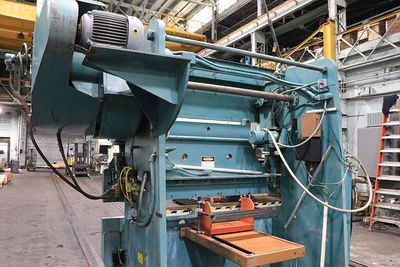

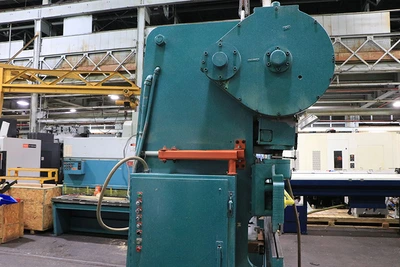

- Totally enclosed twin gear drive

- Manual lubrication system w/grease fittings

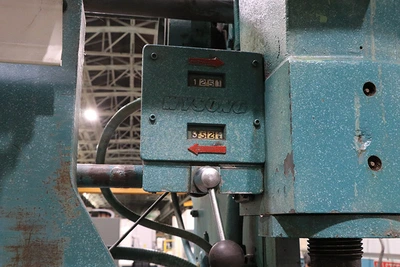

- Individual ram depth readouts for each side

- Lower die rail

- Sectional ram clamping bar with all clamps

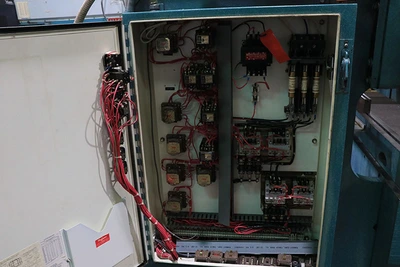

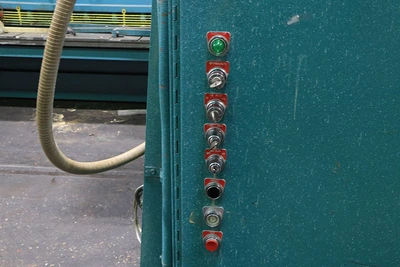

10 H.P. 3/60/220-440 volt main drive motor and

electrical controls

Machine is wired for 220 volt operation.

Approximate Weight: 21,000 Lbs

Approximate Dimensions: 141" L x 80" W x 114" H

FOR MORE INFORMATION: Call Rick at 973-497-7560
