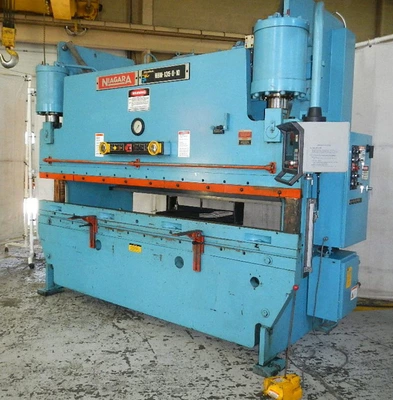

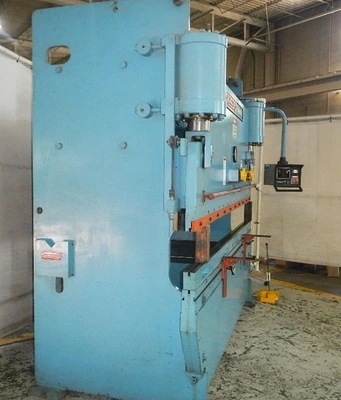

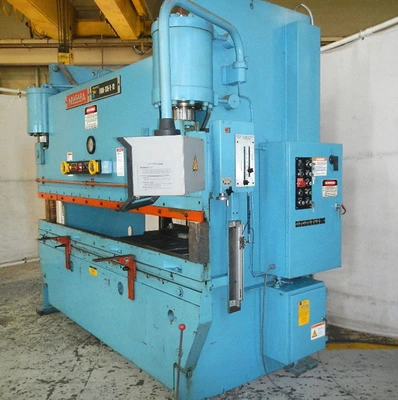

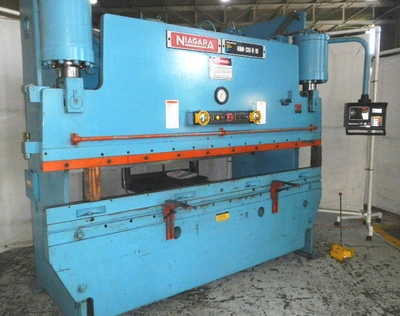

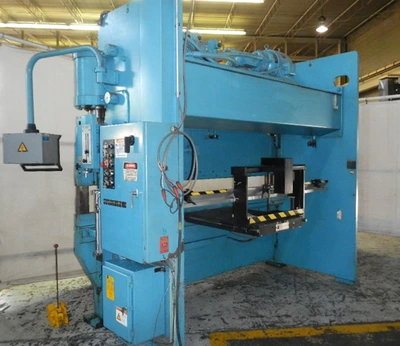

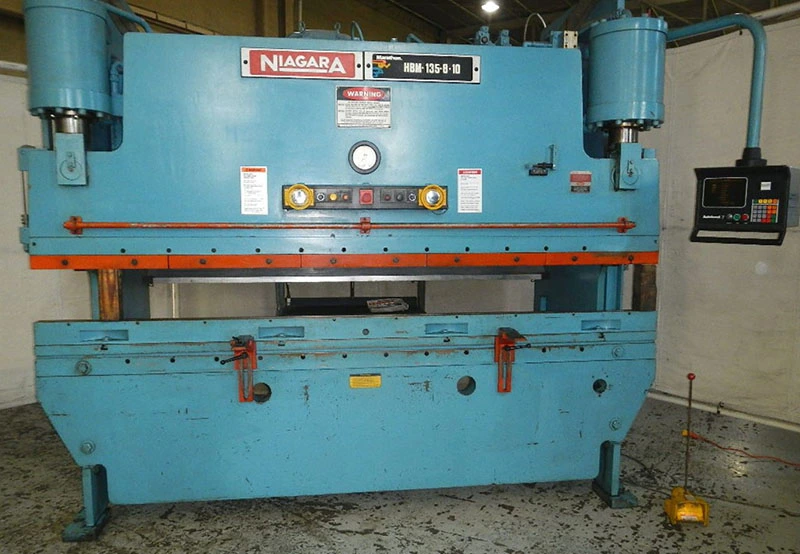

USED 1992 Niagara HBM-135-8-10

10' X 135 TON NIAGARA HYD. PRESS BRAKE

MODEL HBM-135-8-10          S/N P-53579         NEW 1992

Capacity ........................ 135 ton

Rated to bend ................... 6' x 5/16"

                                  7'6" x 1/4"

Overall length of bed and ram ... 10'

Distance between housings ....... 8'6"

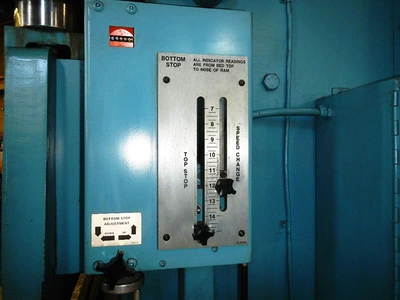

Stroke (adjustable) ............. 8" (maximum)

Open height ..................... 15"

Closed height ................... 7"

Throat depth .................... 8"

Ram Speeds: Rapid Advance ....... 153 IPM

            Anti-Back Bend ...... 17 IPM

            Rapid Return ........ 153 IPM

Oil capacity .................... 140 gallons

Main drive motor ................ 25 HP

Approximate overall dimensions: 130"W x 54"D x 108"H

Approximate weight: 17,000 lbs.

Machine is equipped with:

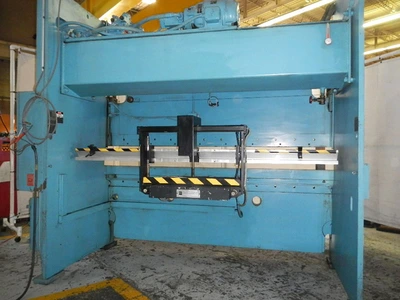

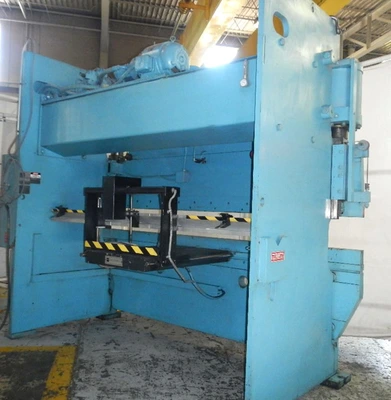

- Hurco 7 3-axis (X, Y & R) CNC back gauge

- Inch / single stroke modes

- Hand / foot actuation

- Rapid / slow speeds

- Adjustable pressure with tonnage gauge

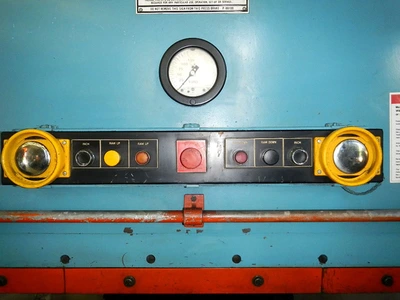

- Press mounted palm buttons with mode controls & E-stop

- Remote foot pedal

- (2) adjustable front support arms

- Lower die rail

- Full set of manuals & schematics

*PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION
