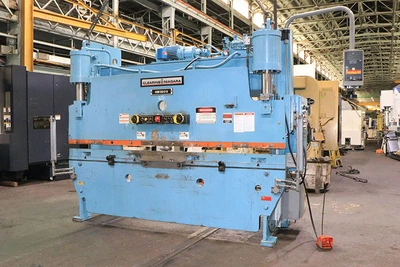

USED 1996 Niagara HBM-100-8-10

100 Ton 120" Bed Niagara HBM-100-8-10 PRESS BRAKE

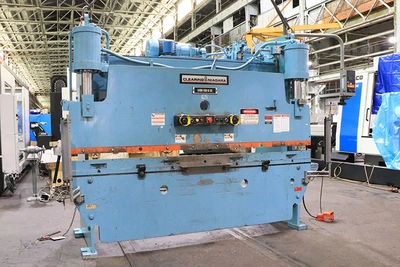

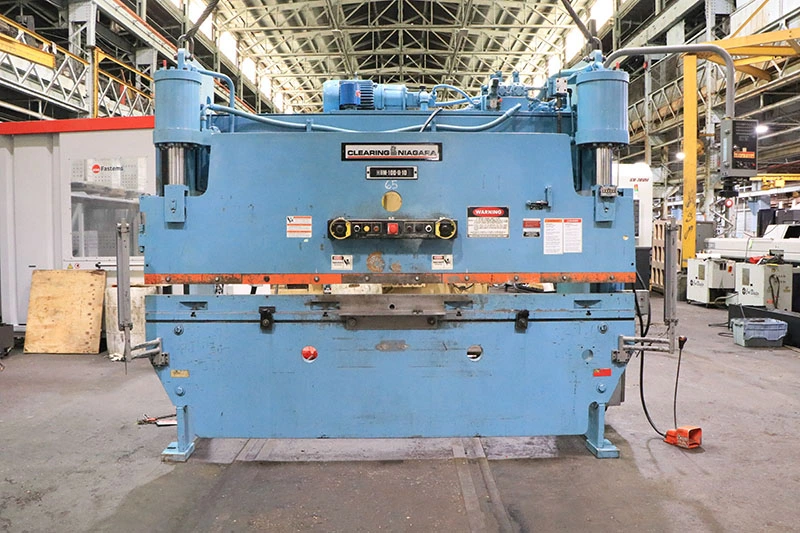

100 TON x 10' NIAGARA HYDRAULIC PRESS BRAKE

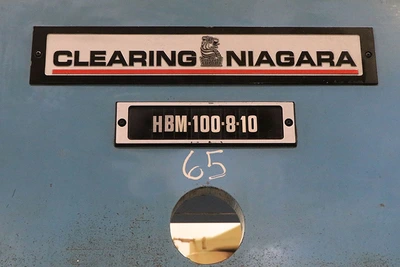

MODEL HBM-100-8-10          S/N P-54413           NEW 1996

CAPACITY (AT OR NEAR BOTTOM OF STROKE) ... 100 TON

LENGTH OF BED ............................ 120"

BENDING CAPACITY ......................... 5/16" x 4'6"

                 ......................... 1/4" x 5'6"

                 ......................... 3/16" X 8'

                 ......................... 10 GA. X 10'

DISTANCE BETWEEN HOUSINGS ................ 102"

STROKE ................................... 7"

OPEN HEIGHT .............................. 14"

CLOSED HEIGHT ............................ 7"

THROAT DEPTH ............................. 7"

SPEED (ADVANCE) .......................... 117 IPM

      (ANTI BACKBEND ..................... 15 IPM

      (RAPID RETURN) ..................... 117 IPM

MOTOR .................................... 7.5 HP 230/460

DIMENSIONS: .............................. 132" L x 50" W x 102" H

WEIGHT ................................... 12,000 LBS.

EQUIPPED WITH:

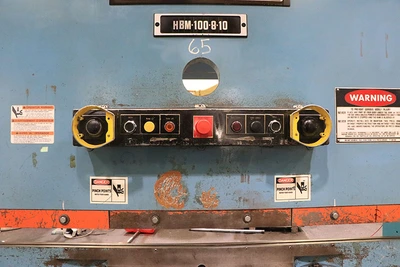

- RAM MOUNTED OPERATOR'S STATION W/2 SINGLE STROKE PALM

BUTTONS, 2 INCH BUTTONS, RAM STOP, UP-DOWN DIRECTIONAL

CONTROL LIGHTS, AND RAM UP AND DOWN BUTTONS.

- PORTABLE FOOT SWITCH

- DUAL SPEED OPERATING MODES: ANTI-BACKBEND THROUGHOUT

WORKING STROKE OR RAPID ADVANCE WITH AUTOMATIC CHANGE TO

ANTI-BACKBEND (THE POINT IN THE STROKE IS FULLY

ADJUSTABLE)

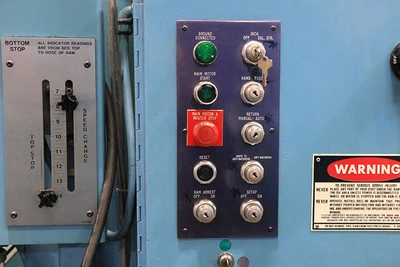

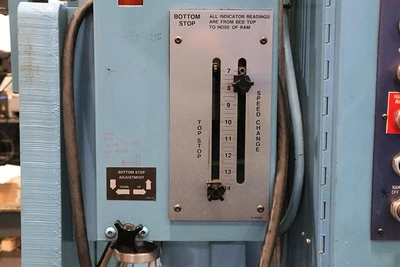

- ELECTROMECHANICAL STROKE CONTROL (BED REFERENCED) WITH

BOTTOM STROKE LIMIT DISPLAYED BY A DRO CALIBRATED IN .001"

INCREMENTS

- MICROMETER TYPE RAM TILT ADJUSTMENT GRADUATED TO .001"

PERMITTING RAM TILT ADJUSTMENTS UP TO 1/2" IN EITHER

DIRECTION

- RAM ARREST FEATURE WHICH STOPS THE RAM AT ANY PRESELECTED

POINT PRIOR TO MATERIAL CONTACT

- NON-METALIC WAYS

- NARROW-TYPE CROWN FILLER BLOCK

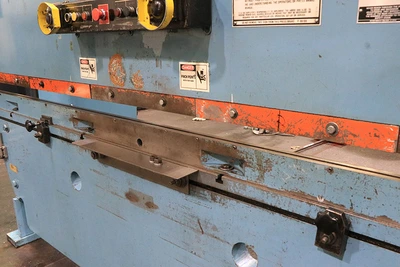

- FULL COMPLIMENT OF UPPER DIE CLAMPS

FOR MORE INFORMATION: Call Rick at 973-497-7560
