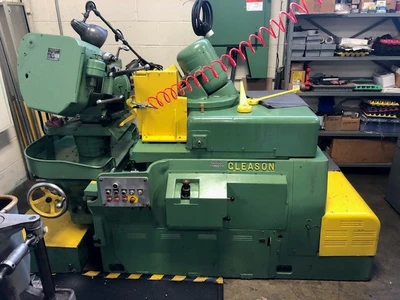

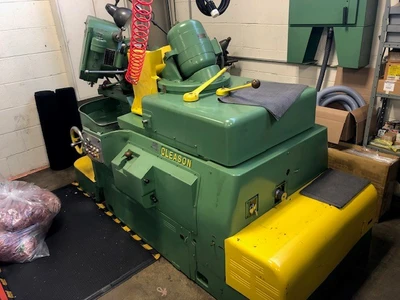

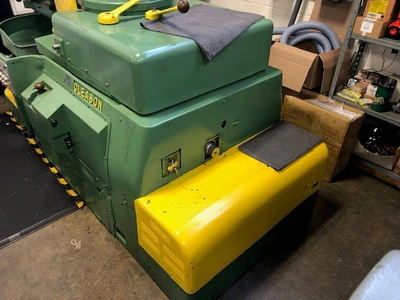

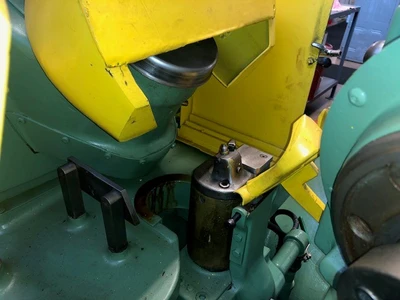

USED Gleason 13A

Gleason 13A GEAR MACHINE

GLEASON "HYPOID" 13A GEAR CUTTER SHARPENER

Video Link: https://youtu.be/Hf9b8iEWGCw

Diameter of spiral bevel cutters 3.5” to 18” (89 to 457mm)

Diameter of revacycle cutters 16” & 18”   (406, 457mm)

Diameter of Coniflex cutters 9” & 15” (229, 381mm)

Stock removed per cycle(roughing) .007" (0.18mm)

Stock removed per cycle (finishing) .002”  (0.05mm)

Grinding time per blade   5 seconds

Type of wheel utilized   Disc-Type 30-degree bevel

Size of wheel  12"x .75"           (305x19mm)

Grinding wheel bore diameter  4"  101.6mm)

Wheel drive motor  2 HP - 1800 rpm

Feed drive motor   1 HP - 1800 rpm

Coolant pump motor .25 HP - 3600 rpm

Hydraulic unit motor  2 HP - 1200 rpm

Floor space required  48"x 91"    (1240x2310mm)

Machine approximate net weight 9,000 Lbs.   (4083 kGs)

FOR MORE INFORMATION: Call Mike at 973-497-7540
