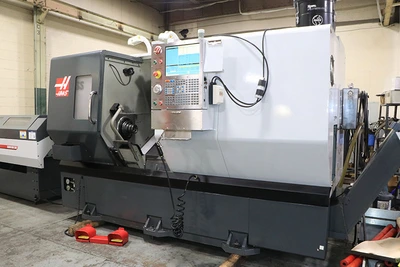

USED 2012 Haas DS-30SS

31.75" Swing 26.1" Centers Haas DS-30SS CNC LATHE, Haas CNC, Servo 300 Barfeed, Subspindle, Chip Conv

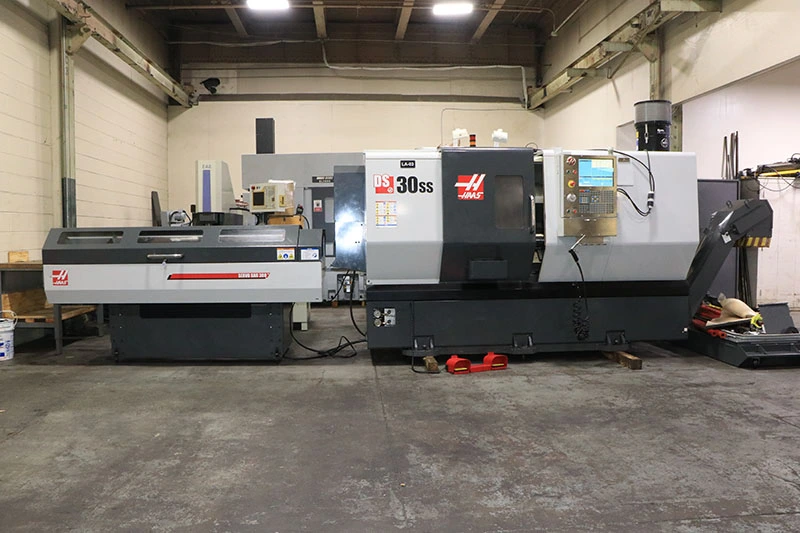

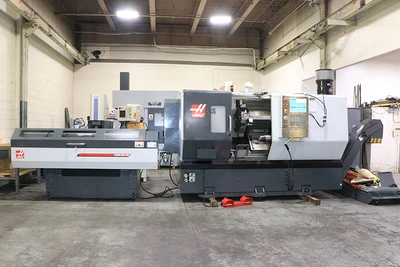

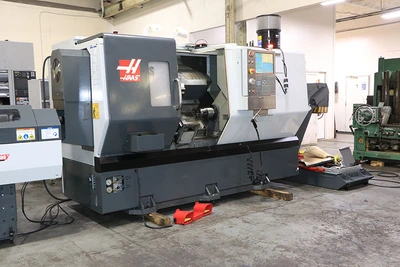

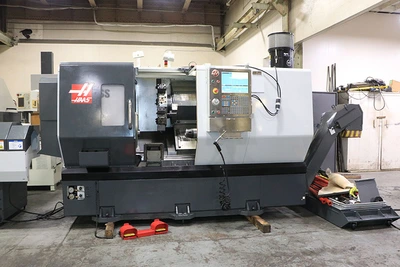

HAAS DS-30SS CNC LATHE w/SUBSPINDLE and BARFEED

S/N: 3081580    BUILT: 2012

VIDEO LINK: https://youtu.be/OS7QkQAuMRU

SPECIFICATIONS:

SWING OVER BED ........................ 31.75"

SWING OVER CROSS SLIDE ................ 20.75"

MAXIMUM TURNING DIAMETER .............. 16"

MAXIMUM TURNING LENGTH ................ 26.11"

X-AXIS TRAVEL ......................... 12.5"

Z-AXIS TRAVEL ......................... 26"

SPINDLE SPEED, MAIN/SUB SPINDLE ....... 4,800 RPM

SPINDLE BORE .......................... 2.44"

SPINDLE NOSE, MAIN .................... A2-6

SPINDLE MOTOR, MAIN ................... 30 HP

SPINDLE NOSE, SUB ..................... A2-5

SPINDLE MOTOR, SUB .................... 20 HP

EQUIPPED WITH:

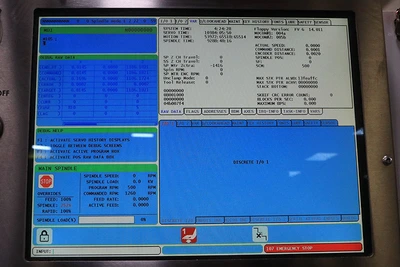

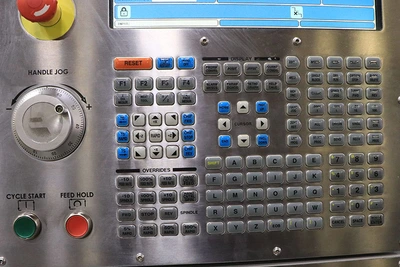

HAAS CNC CONTROL

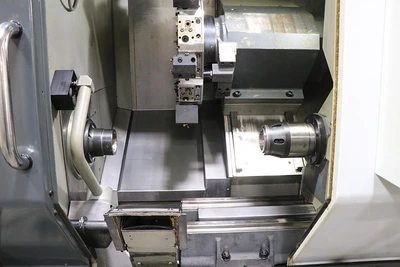

MAIN SPINDLE & SUB-SPINDLE

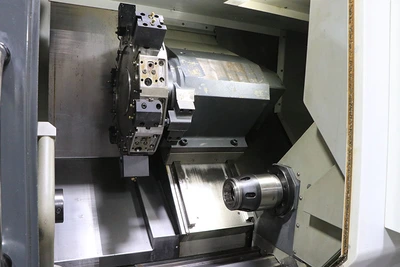

12-STATION TURRET WITH 24-TOTAL POSITIONS

HAAS BARFEEDER - MODEL BAR 48B

TOOLSETTER

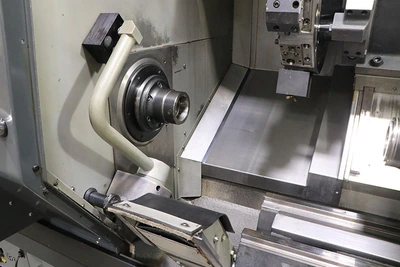

ROYAL QUICK-GRIP 42, A2-6 COLLET CHUCK ON MAIN SPINDLE

ROYAL QUICK-GRP. 42, A2-5 COLLET CHUCK ON SUBSPINDLE

AUTO CHIP BLAST

HIGH PRESSURE COOLANT

RIGID TAPPING

SPINDLE ORIENTATION

PARTS CATCHER

HENNIG CHIP CONVEYOR

ROYAL MIST MIST FILTER

MISCELLANEOUS TOOLING

SPINDLE LINERS

FOR MORE INFORMATION: Call Mike at 973-497-7540
