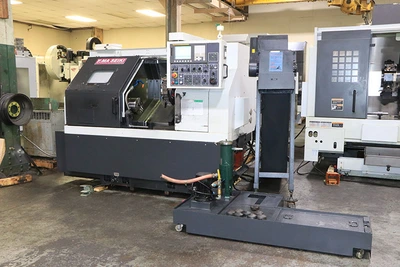

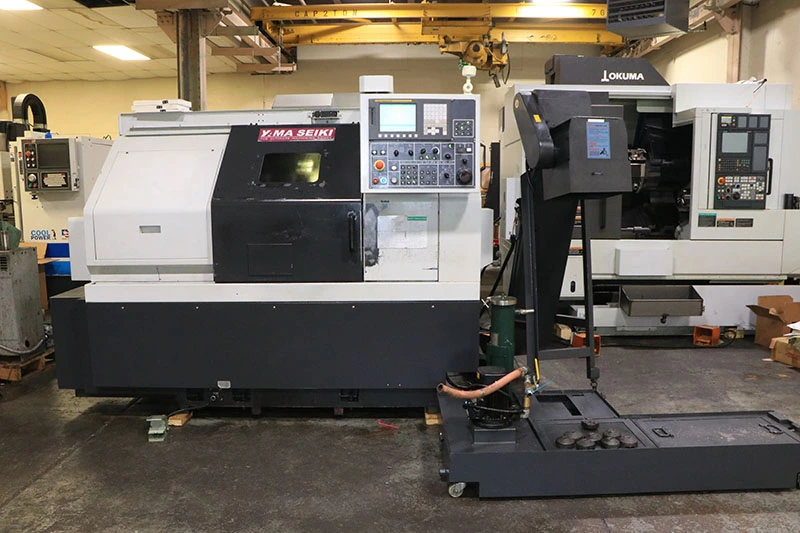

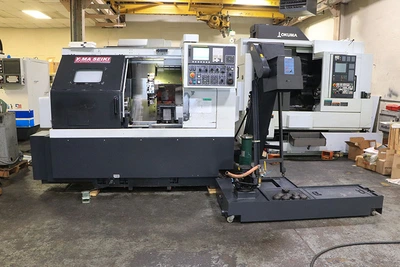

USED 2011 Yama Seiki GA-2000

22.83" Swing 23.6" Centers Yama Seiki GA-2000 CNC LATHE, Fanuc 0iTD, 8"chk., Tailstock, Chip Conv

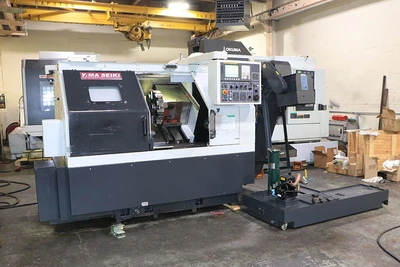

Yama Seiki GA-2000 CNC TURNING CENTER

NEW: 2011

VIDEO LINK: https://youtu.be/ITu7unqt8zg

SPECIFICATIONS:

SWING OVER BED .............. 22.83"

SWING OVER SADDLE ........... 15.75"

MAX. TURNING DIA. ........... 13.78"

MAX. TURNING LENGTH ......... 23.6"

MAX. WORKPIECE WEIGHT ....... 517.6 lbs. w/TAILSTOCK

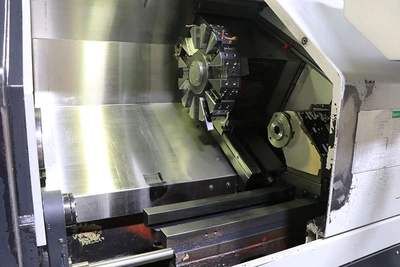

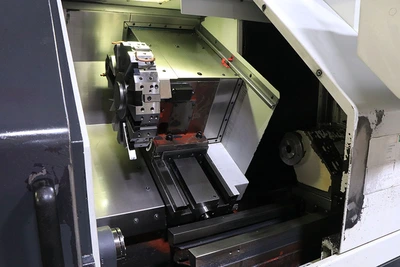

TURRET HEAD TYPE ............ DRUM

NO. OF TOOL STATIONS ........ 12

TOOL SIZE, SQUARE ........... 1"

TOOL SIZE, ROUND ............ 1.5"

SPINDLE SPEED ............... 4800 RPM

SPINDLE DRIVE MOTOR ......... 20/15 HP

BAR CAPACITY ................ 2.0"

SPINDLE NOSE ................ A2-6

X-AXIS TRAVEL ............... 8.07"

Z-AXIS TRAVEL ............... 24.4"

TAILSTOCK QUILL CENTER ...... MT#4

TAILSTOCK QUILL STROKE ...... 5.91"

TAILSTOCK QUILL DIA. ........ 2.76"

APPROX. MACHINE WEIGHT ...... 8,900 lbs.

EQUIPPED WITH:

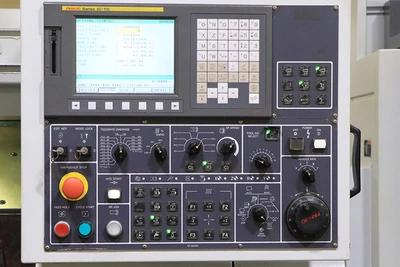

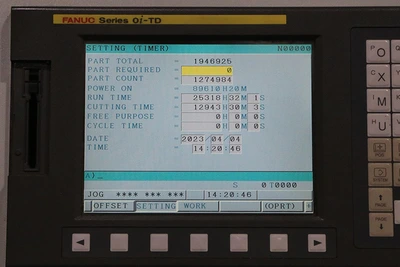

FANUC 0iTD CNC CONTROL

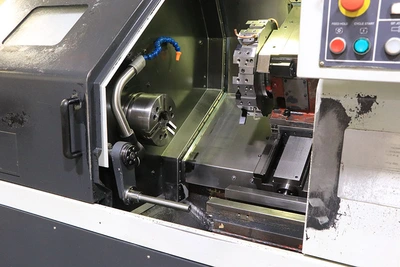

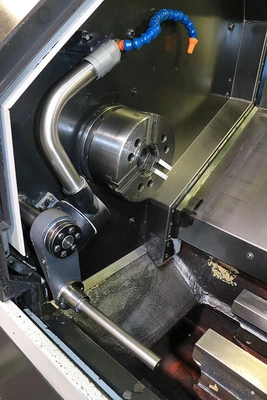

8" 3-JAW HYDRAULIC CHUCK

PARTS CATCHER ARM (Missing Basket)

TAILSTOCK

CHIP CONVEYOR

FOR MORE INFORMATION: Call Mike at 973-497-7540
