USED 2004 Gildemeister CTX-320 Linear

Gildemeister CTX-320 Linear CNC LATHE, Fanuc 180i

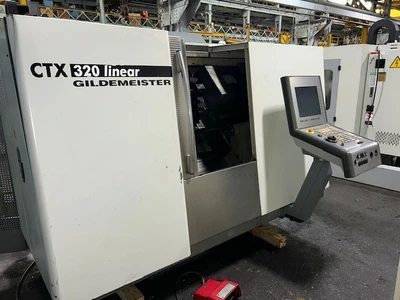

GILDEMEISTER CTX-320 LINEAR MULTI-AXIS CNC TURNING CENTER

NEW: 2004

VIDEO LINK: https://youtu.be/ItkKslTDlTc

SPECIFICATIONS:

SWING OVER BED ................. 15.74"

SWING OVER CROSS SLIDE ......... 11.81"

MAX. TURNING DIAMETER .......... 9.68"

DISTANCE BETWEEN CENTERS ....... 23.6"

BAR CAPACITY ................... 1.96"

X-AXIS TRAVEL .................. 8.26"

Z-AXIS TRAVEL .................. 17.71"

MAX. SPINDLE SPEED ............. 6000 RPM

SPINDLE POWER .................. 16kW

TAILSTOCK TRAVEL ............... 15.74"

TURRET TYPE .................... SAUTER 05.456.416

NUMBER OF TOOLS ................ 12 (ALL STATIONS DRIVEN)

TOOL SYSTEM .................... VDI 30 (AXIAL)

DRIVEN TOOLS SPEED ............. 5000 RPM

C-AXIS INDEXING ................ 0.001 DEGREE

APPROX. DIMENSIONS ............. 153" X 62" X 75"

APPROX. WEIGHT ................. 9,000 LBS

EQUIPPED WITH:

  - FANUC 180i CNC CONTROL

  - C& Y AXES

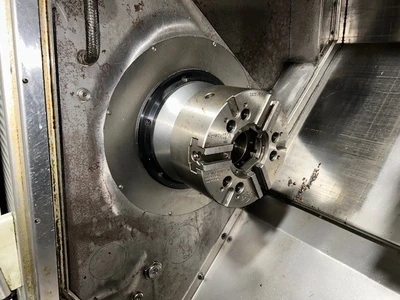

  - 8" SMW HYD. CHUCK

  - 12 POSITION TURRET

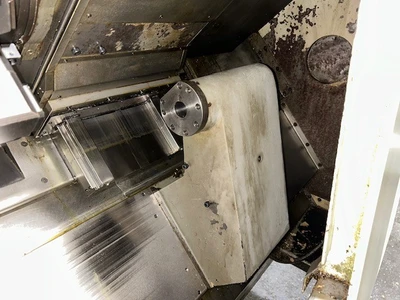

  - TAILSTOCK

  - CHIP CONVEYOR

  - LIVE TOOLHOLDERS

  - ALL AVAILABLE STANDARD TOOLHOLDERS

  - ALL AVAILABLE MANUALS

FOR MORE INFORMATION: Call Mike at 973-497-7540
