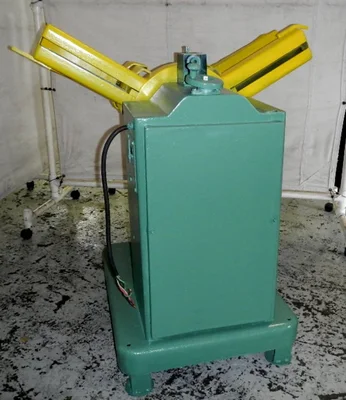

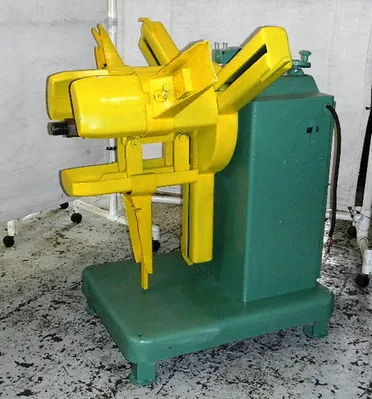

USED 1973 American Steel Line 60
Overview
Description

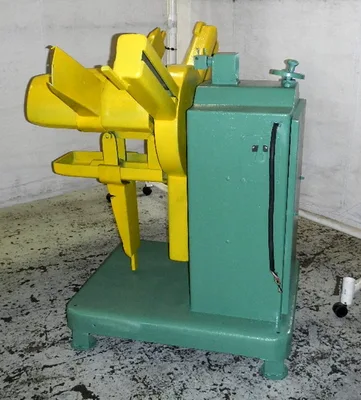

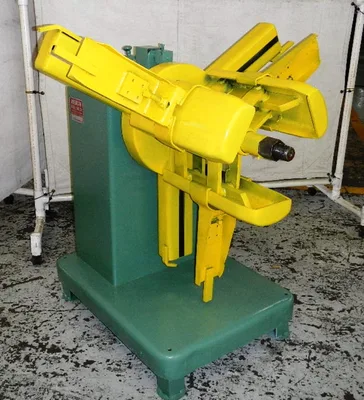

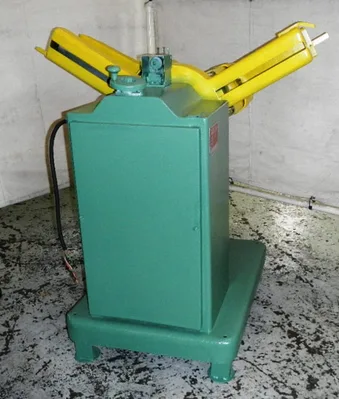

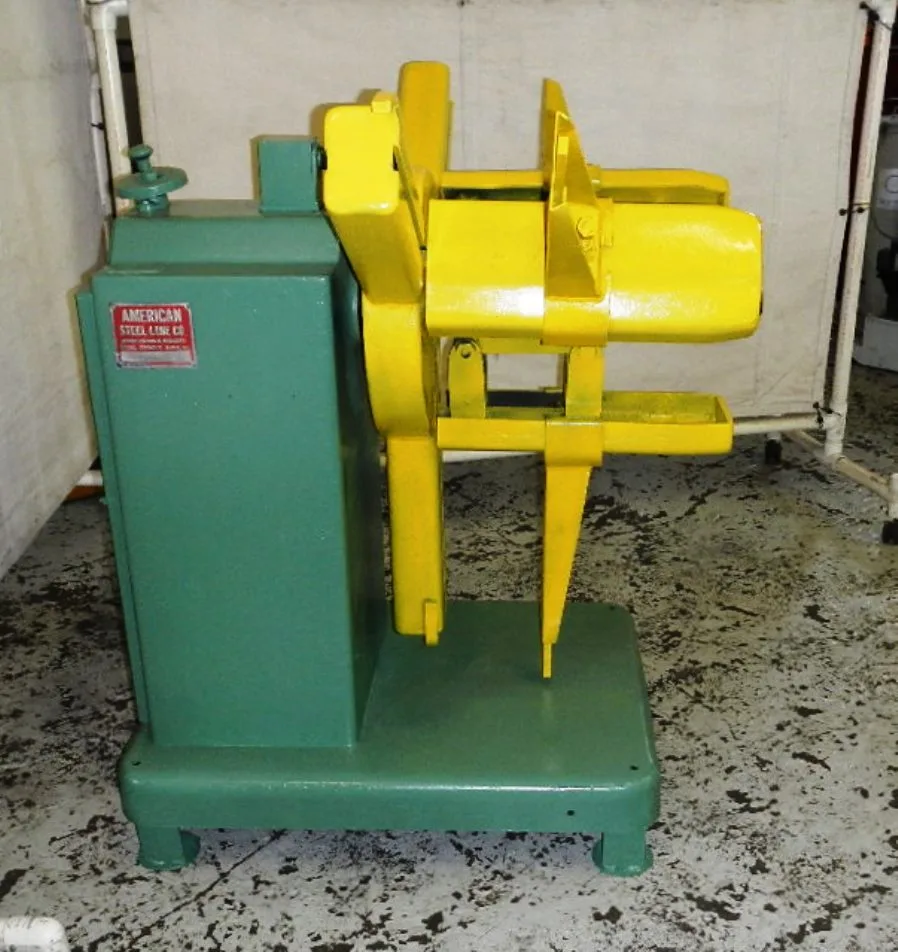

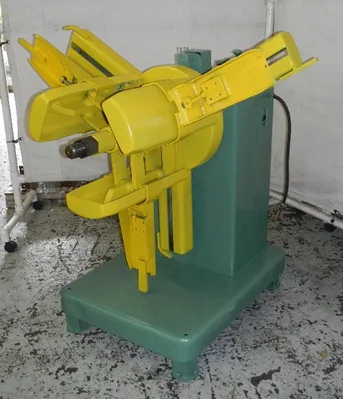

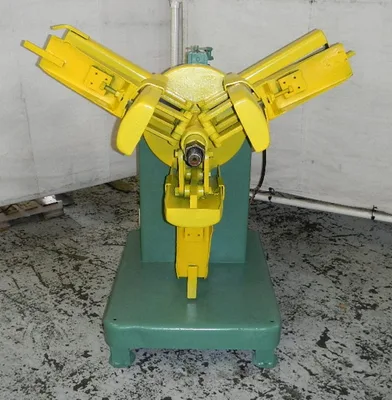

2500Lb Cap. 12" Width American Steel Line 60 UNCOILER, Motorized
Specifications
2,500 LB.X 12" AMERICAN STEEL LINE MOTORIZED COIL REEL*

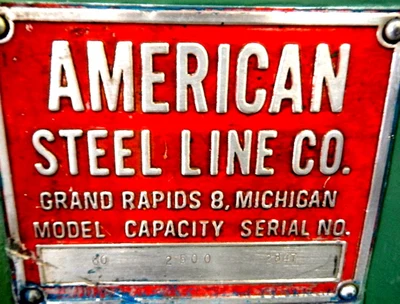

MODEL 60 S/N 2847 Year 1973
Capacity .......................... 2,500 lbs
Width ............................. 12"
Actual width of face .............. 20-1/2"
Inside diameter range ............. 14" - 21"
Maximum outside diameter .......... 60"
Floor to centerline of mandrel .... 37-1/2" (mounted on 9" beams)
Speed ............................. 25 - 65 fpm
Motor ............................. 1 HP
Dimensions 54" x 46" x 62" high
Weight 1,500 lbs
Machine is equipped with:
- Fixed back support arms (3)
- Loop control
- Variable speed
- Manual / auto modes
- Jog forward / reverse
- Keepers (3)
- Machine is currently bolted to 9" high channels.
*PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION
** Located in our Harrison,NJ Warehosue **
FOR MORE INFORMATION: Call Rick at 973-497-7560
