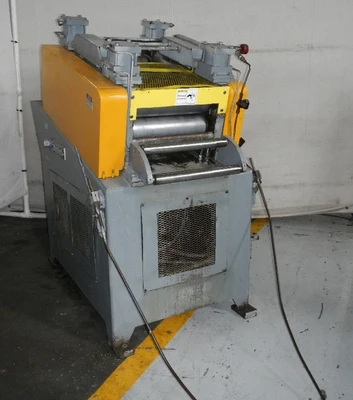

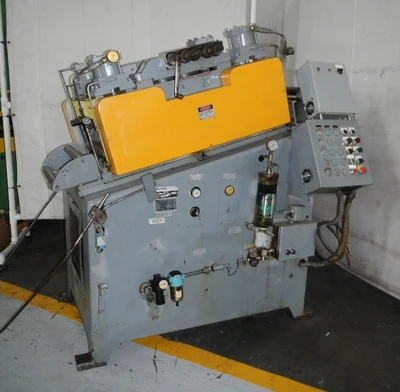

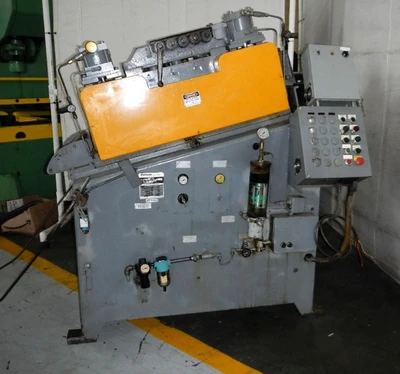

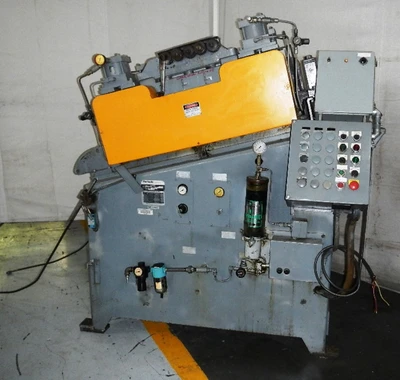

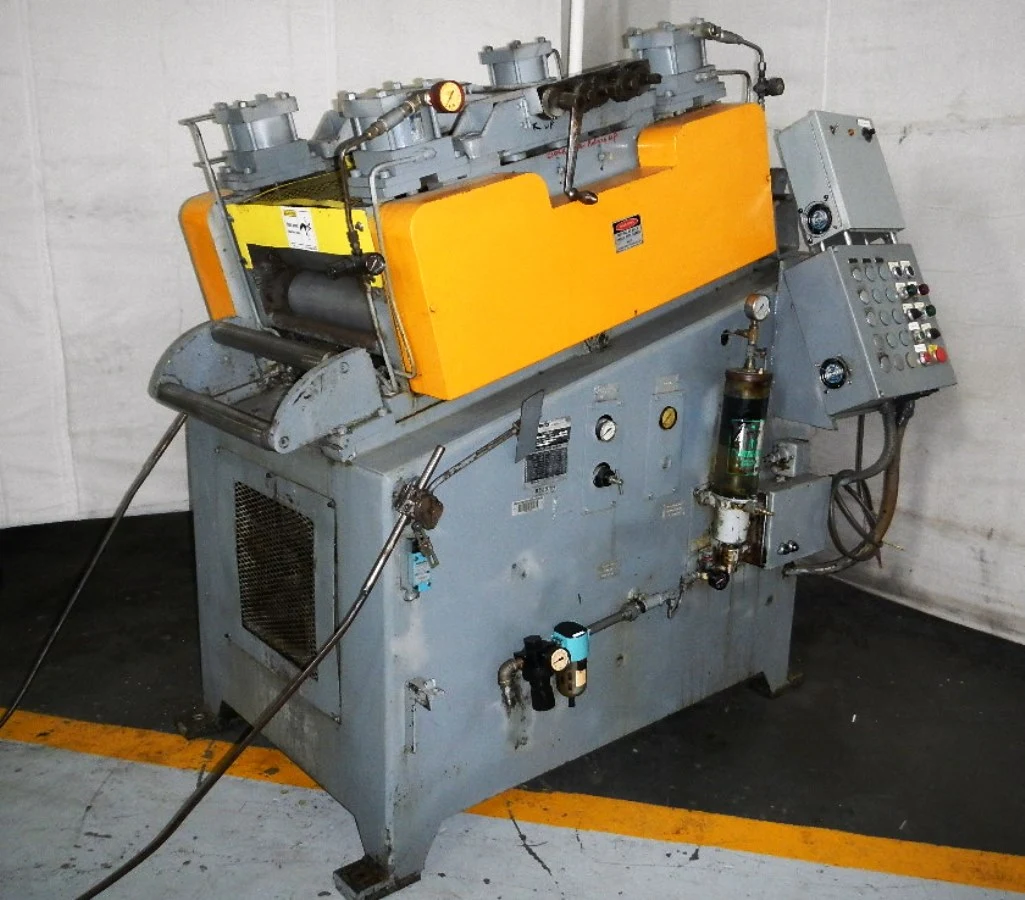

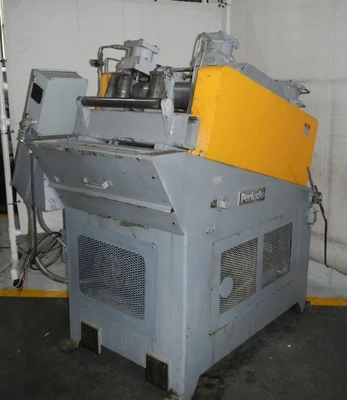

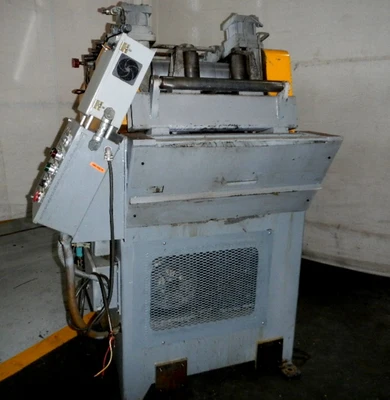

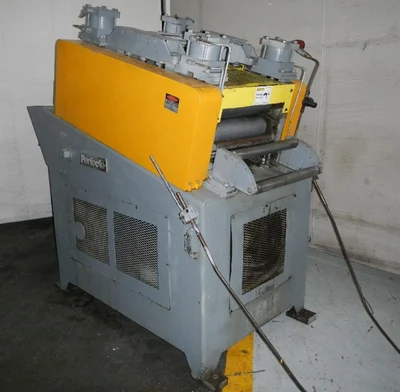

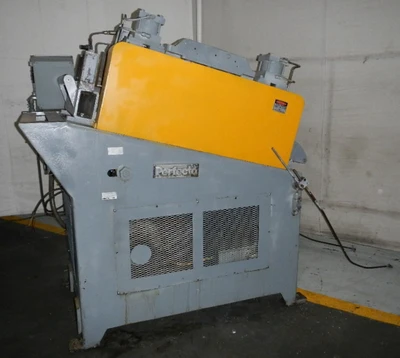

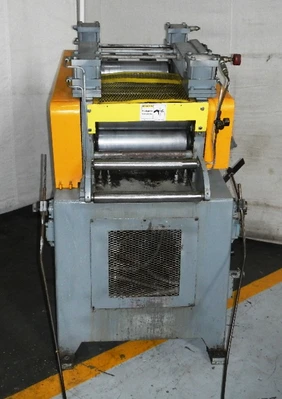

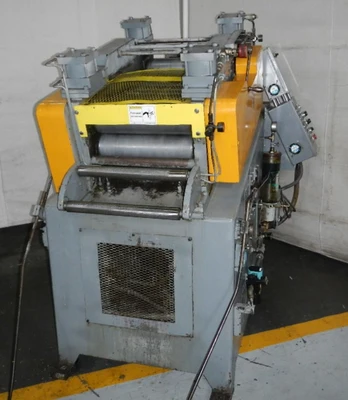

USED 1985 Perfecto 3.8-18-7
Overview
Description
18" Width 0.125" Cap. Perfecto 3.8-18-7 STRAIGHTENER
Specifications
18" X .125" PERFECTO STRAIGHTENER*
MODEL 3.8-18-7 S/N SS-4520 NEW 1985
Maximum width ......................... 18"
Maximum thickness ..................... .125"
Minimum thickness ..................... .040"
Speed ................................. 0 - 360 IPM
Number of straightening rolls ......... 7 (3 over 4)
Dia. of straightening rolls ........... 3.8"
Dia. of pinch rolls (entry & exit) .... 6"
Motor ................................. 10 HP / 460V
Entrance passline ..................... 60"
Exit passline ......................... 48"
Dimensions: 60" x 49" x 72" high
Approximate Weight: 4300 Lbs.
Right To Left Line Direction
Machine is equipped with:
- Canted head design
- Updated Eaton Dynamatic vari-speed drive system
- Updated Direct Logic PLC control
- Lincoln lube system
- Air clutch & brake
- Pneumatic lift pinch rolls
- Adjustable roller side guides on entrance
- Exit cascade rolls
- Forward / reverse & hand / auto mode selector
- Loop control
*PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION
** Located in our Harrison, NJ Warehosue **
FOR MORE INFORMATION: Call Rick at 973-497-7560
