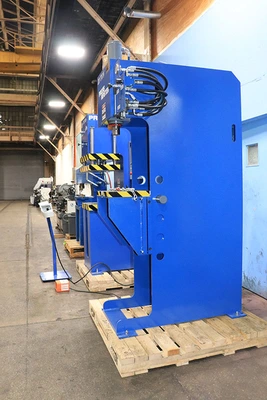

USED Pressmaster BP-20

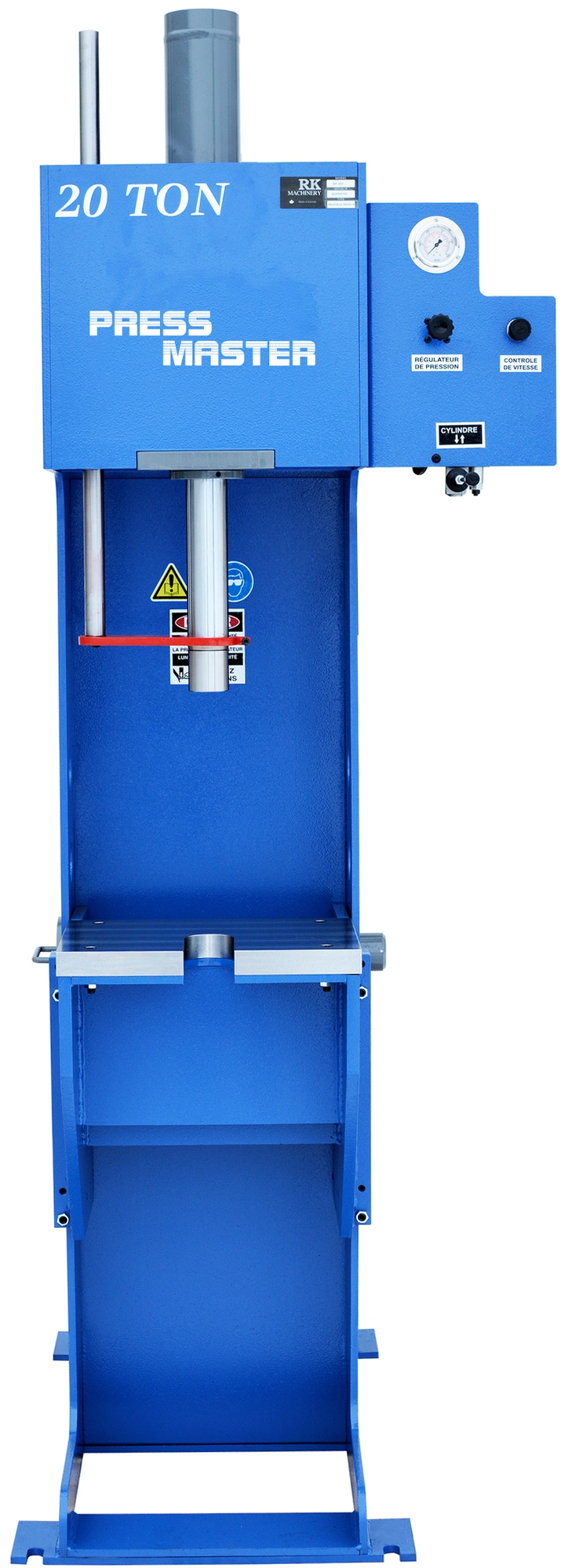

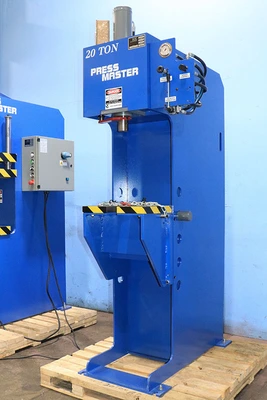

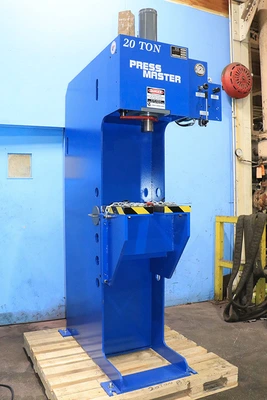

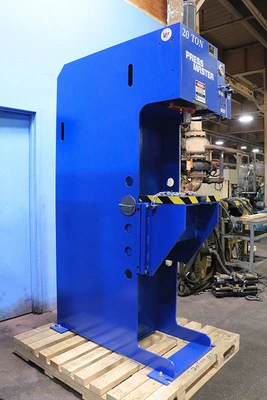

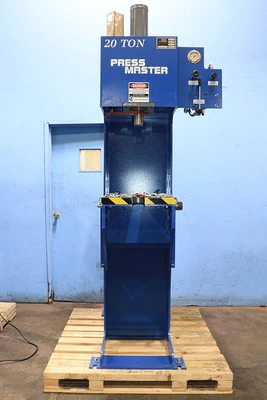

20 TON PRESSMASTER HYDRAULIC BROACHING PRESS

  MODEL BP-20

RATED CAPACITY ............................. 20 TONS

RAM SPEED ..........(PRESSING).............. 22.5 IPM*

          ..........(RETURN)................ 74 IPM

BORE ....................................... 4"

TABLE ..............(LR X FB)............... 18" X 13"

TABLE SLOT ................................. 3"

DAYLIGHT ................................... 36"

STROKE ADJUSTABLE .......................... 0 - 20"

THROAT ..................................... 8"

FLOOR TO TABLE ............................. 26-1/2"

FRONT TO BACK .............................. 46"

MOTOR SPECES ..................... 5 HP / SINGLE PHASE

(MOST VOLTAGES AVAILABLE, PLEASE SPECIFY)

DIMENSIONS: 56" X 40" X 101"

WEIGHT: 2,200 LBS.

STANDARD FEATURES:

* FACTORY SPEED SET TO 22.5 IPM WHICH IS OSHA STANDARD.

MACHINE IS CAPABLE OF UP TO 45 IPM, WE RECOMMEND USING PROPER SAFETY GUARDING

- ELECTRIC OVER HYDRAULIC OPERATION FOR SMOOTH CONSISTENT PRESSING ACTION

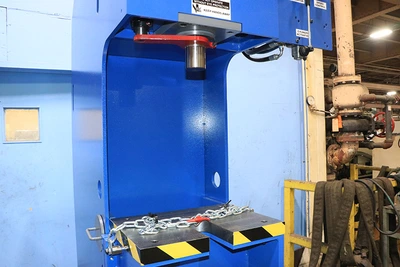

- FLAT RAM NOSE CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT THE PRESS TO A SPECIFIC JOB.

- QUALITY BALDOR MOTOR, LOW SPEED

- LOW SPEED PUMP FOR QUIET DEPENDABLE OPERATION

- HYDRAULIC POWER LIFT FOR VERTICAL DISPLACEMENT OF TABLE

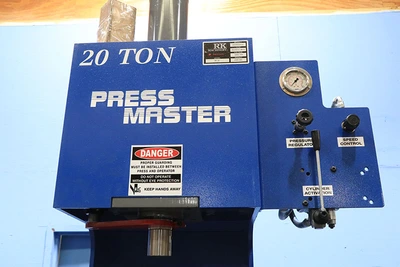

- PRESSURE REGULATOR

- SPEED CONTROL LIMITS THE MAXIMUM SPEED OF RAM TRAVEL, THIS ALLOWS THE OPERATOR TO SELECT THE PROPER SPEED FOR THE TASK

- CYLINDER ACTIVATION IS FINGER TIP CONTROLLED THE MORE THE HAND LEVER IS ENGAGED THE FASTER THE RAM MOVEMENT.

- HIGH CAPACITY 15 GAL HYDRAULIC OIL RESERVOIR

- LOW PRESSURE HYDRAULIC SYSTEM MAINTAINS LOWER OIL TEMPERATURES, RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION

- ALL HYDRAULIC AND MECHAINCAL PARTS ARE STANDARD IN THE INDUSTRY, AND AVAILABLE THROUGHOUT NORTH AMERICA

- ONE YEAR WARRANTY

- MFG. IN NORTH AMERICA

- CUSTOM DESIGNS AVAILABLE, WE BUILD THEM YOUR WAY!

AVAILABLE OPTIONS:

- FRONT & SIDE SAFETY GUARDING ......... $1,100

- STOP / START W/EMERGENCY STOP WIRED DIRECTLY TO THE MOTOR ...... $900

- FPS-20 FOOT PEDAL ELECTRIC SOLENOID VALVE FOR HANDS-FREE

OPERATION, COMPLETE WITH ELECTRIC CONTROL PANEL ........... $3,600

FOR MORE INFORMATION: Call Rick at 973-497-7560
