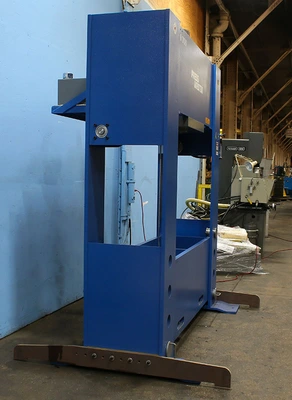

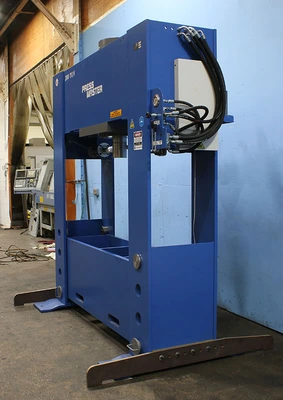

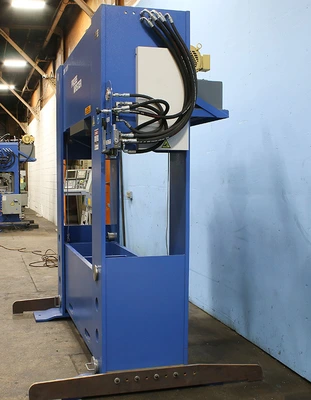

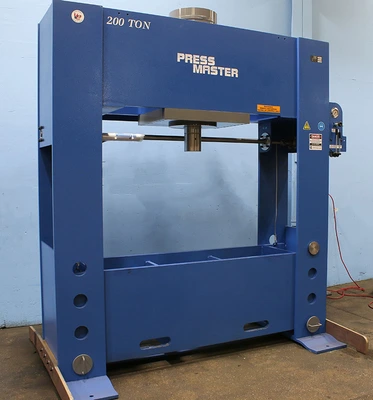

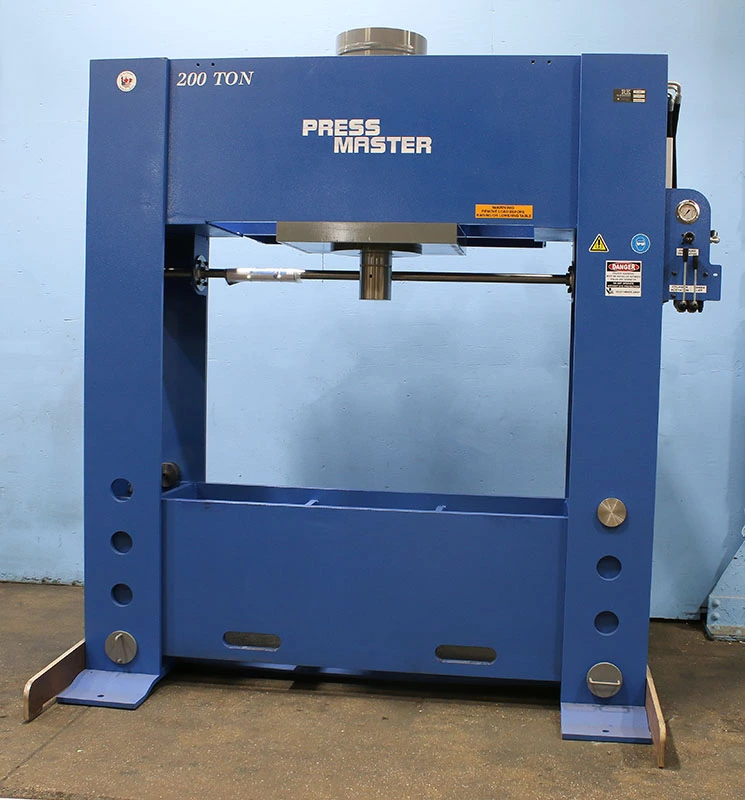

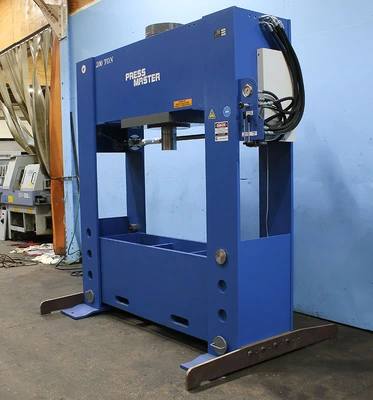

200 Ton 20" Stroke Pressmaster HFP-200 H-FRAME HYDRAULIC PRESS
200 TON PRESSMASTER H-FRAME HYD. PRESS

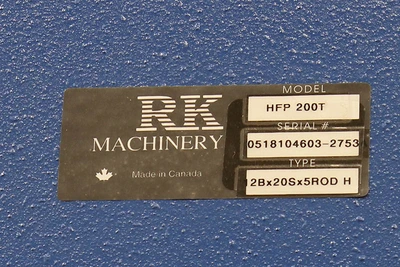

MODEL HFP-200 BRAND NEW
RATED CAPACITY, TONNAGE .......................... 200
STROKE ........................................... 20"
BORE ............................................. 12"
RAM SPEED PRESS................................... 6 IPM
RAM SPEED (Inches/minute) ADVANCE................. 24
RAM SPEED (Inches/minute) RETURN ................. 29
DISTANCE BETWEEN POSTS (RIGHT TO LEFT)............ 60"
DISTANCE BETWEEN POSTS (FRONT TO BACK)............ 20"
MAXIMUM DISTANCE FROM BED TO RAM ................. 30.5"
SHIPPING DIMENSIONS
OVERALL HEIGHT ................................... 94"
OVERALL WIDTH .................................... 84"
OVERALL DEPTH .................................... 42"
WEIGHT ........................................... 7,400 LBS.
NOT A CHEAP IMPORT -
MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS
EQUIPPED WITH:

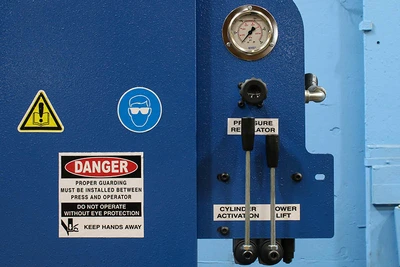

- PRESSURE REGULATOR TO LIMIT RAM PRESSURE
- CYLINDER ACTIVATION IS FINGER TIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT INCREASES, ALLOWING THE OPERATOR TO USE THE PROPER SPEED FOR THE TASK.
- DOUBLE ACTING CYLINDER PERMITS PULLING AS WELL AS PRESSING RAM ACTION
- HYDRAULIC POWER LIFT TABLE CONTROLLED WITH A HAND LEVER
- ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT PRESSING ACTION
- OPEN SIDES TO FACILITATE WORK ON LONG PIECES
- SELF LOCKING TABLE DESIGN ELIMINATES LATERAL MOVEMENT

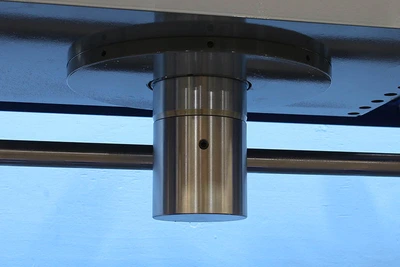

- FLAT RAM NOSE TO ALLOW USER TO ADAPT THE PRESS TO A SPECIFIC JOB
- LOW PRESSURE HYDRAULIC SYSTEM MAINTAINS LOWER OIL TEMPERATURES, RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION
- HIGH CAPACITY 20 GALLON HYDRAULIC OIL RESERVOIR
- LOW SPEED, 10 HP, 3 PHASE BALDOR MOTOR-STANDARD VOLTAGES AVAILABLE
- FULL ONE YEAR WARRANTY
- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY AND READILY AVAIABLE THROUGH OUT NORTH AMERICA.
AVAILABLE OPTIONS:
- SET OF V-BLOCKS ............................ $1,700
- STOP / START & EMERGENCY STOP .............. $1,000
- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000
- SIDE SAFETY GUARD ..............(PER SIDE).. $ 750
- FOOT PEDAL ................................. $4,500
- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $6,500
- PRESS PLATE ................................ $4,600
- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND
LEXAN GUARDING ............................... $9,500
- HANDHELD REMOTE CONTROL .................... $9,500
FOR MORE INFORMATION: Call Rick at 973-497-7560
