USED 2006 LNS QUICK SIX

3.125" Dia. 6' Length ft LNS QUICK SIX BAR FEED

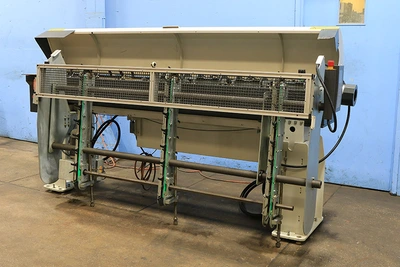

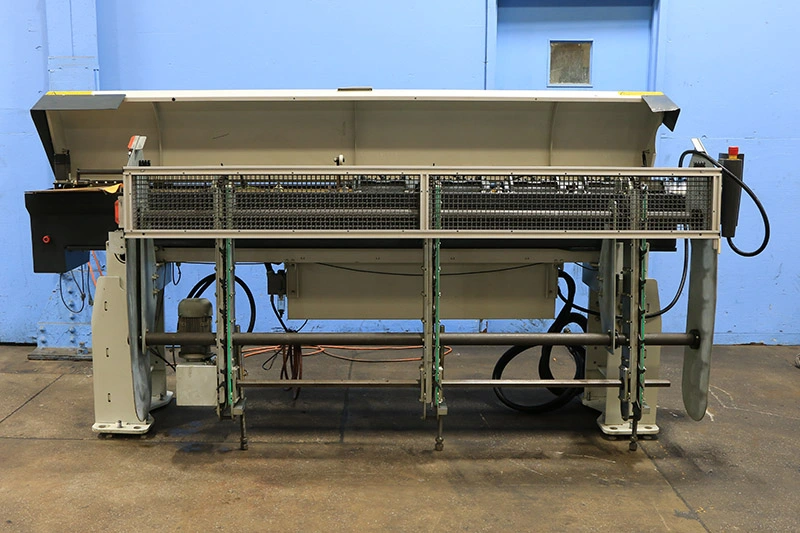

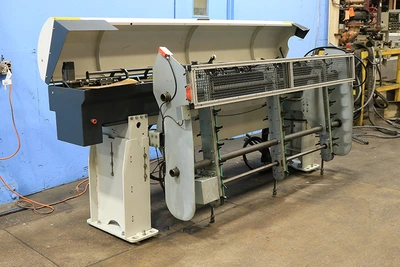

LNS QUICK SIX MAGAZINE BARFEED

NEW: 2006

SPECIFICATIONS:

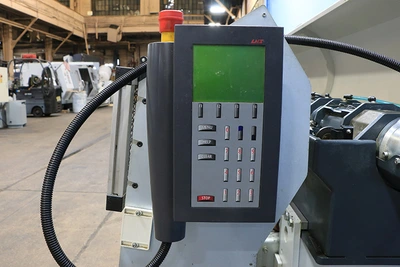

Hand Held Control:                    LNS PLC / Siemens Step 7 Diameter

capcity:                              5/16" - 3-1/8"

Bar Length:                           18" - 6'

Loading System:                       Chain Loading Rack with fingers

Loading Rack Capacity:                8 Barstocks Vertical Elevator Rack

Safety:                               Light beam barrier

Headstock:                            Fixed

Z-Axis Retraction:                    35" permits spindle access to lathes for

                                      spindle liner changes and maintenance

Total Capacity Set Changeover:        Less than 4 min

Motor:                                Servo

Drive:                                Notched Belt

Bar Guiding:                          Blocks

FOR MORE INFORMATION: Call Mike at 973-497-7540
