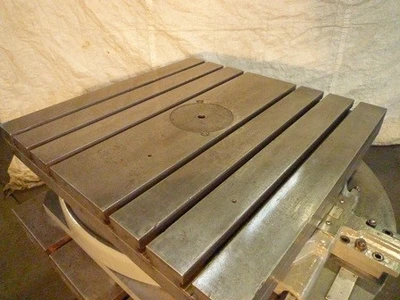

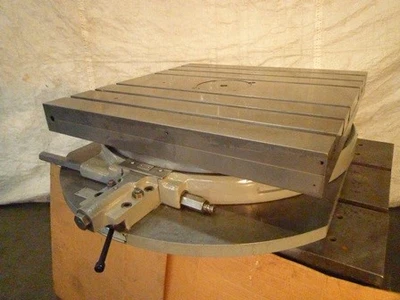

USED 1970 Lucas AIRLIFT

36" Width 36" Length Lucas AIRLIFT ROTARY TABLE

36"X36" LUCAS PLAIN AIR LIFT ROTARY TABLE

NEW: 1970

SPECIFICATIONS:

WORKING SURFACE OF TABLE .............. 36"X36"

PARALLEL TEE SLOTS .................... 6

90 DEGREE LOCK BOLT POSITIONS ......... 4

DIAMETER BASE PLATE ................... 36"

CENTER HOLE ........................... 1"

OVERALL HEIGHT ........................ 9-3/4"

TABLE WORK PIECE CAPACITY (NEW) ....... 16,000 LBS.

WEIGHT APPROXIMATELY .................. 3,000 LBS.

FREE TURNING WITH AIR LIFT

MANUAL CLAMPING

360 DEGREE TABLE GRADUATIONS, 1/2 DEGREE INCREMENTS

FOR MORE INFORMATION: Call David at 973-497-7570
