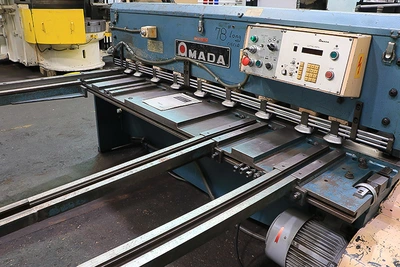

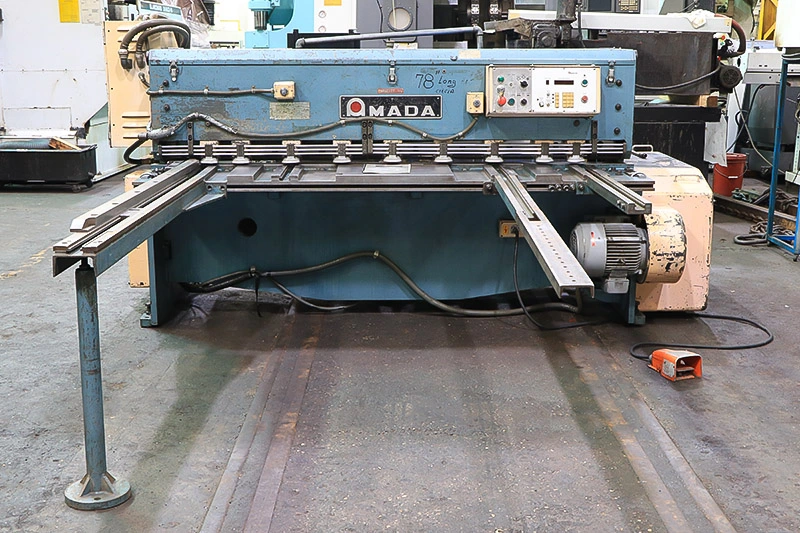

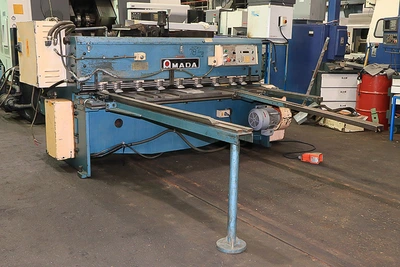

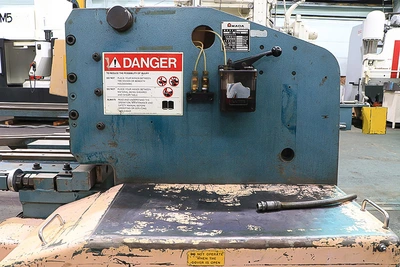

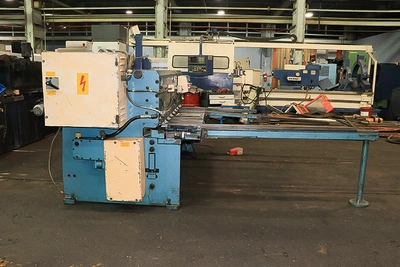

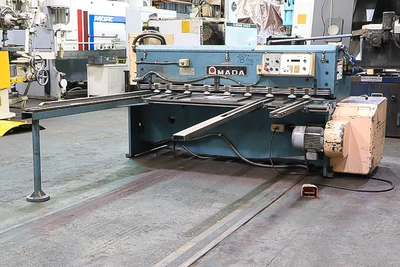

USED 1983 Amada M-2060

0.25" Cap. 78.74" Width Amada M-2060 SHEAR

1/4" x 6' AMADA MECHANICAL SHEAR

MODEL M-2060      S/N 2600432     NEW 1983

MAX. CUTTING LENGTH & CAPACITY ......... 78.74" x .236" THICKNESS

BLADE LENGTH ........................... 90.5"

GAP DEPTH .............................. 2.56"

RAKE ANGLE ............................. 1 DEGREE 28'

STROKES PER MINUTE ..................... 60 SPM

NUMBER OF HOLDDOWN UNITS ............... 9

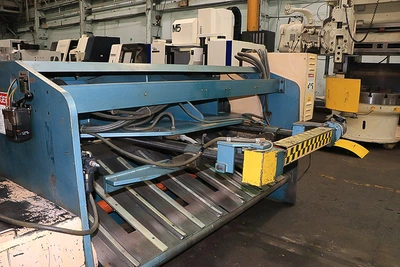

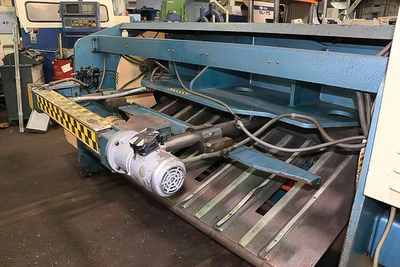

BACKGAUGE -

 MOVEMENT RANGE ........................ .39 - 39.37"

 SPEED ................................. 34.25" / MIN.

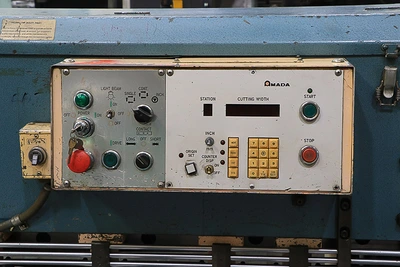

 POSITION INDICATION ................... mm/INCH DIGITAL READOUT

MOTOR SPECS: ........................... 230/460 volt / 3 Phase / 60 Hz

MACHINE DIMENSIONS ..................... 126" L-R x 75" F-B x 60" H

MACHINE WEIGHT ......................... 10,340 LBS.

EQUIPPED WITH:

- PROGRAMMABLE BACKGAUGE

- FOOT PEDAL

- SQUARING ARM

- (2) SUPPORT ARMS
