20 Ton 12" Stroke Pressmaster CFP20T HYDRAULIC PRESS

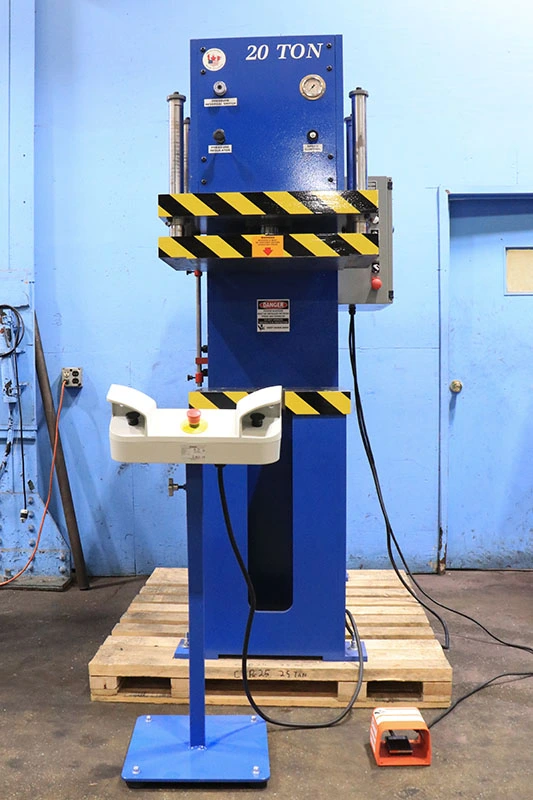

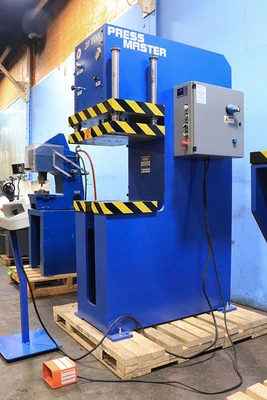

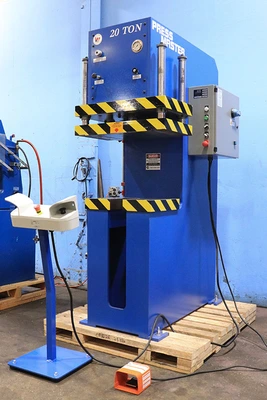

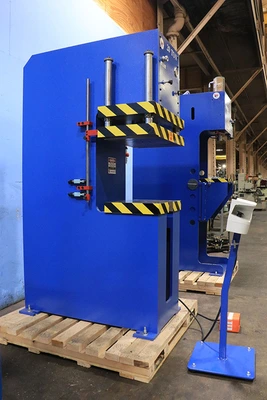

20 TON PRESSMASTER C-FRAME HYDRAULIC PRESS

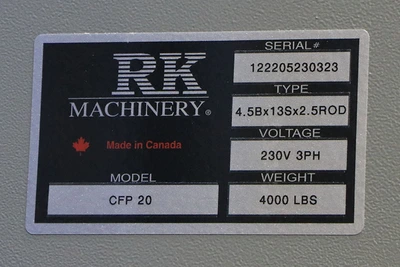

MODEL CFP-20T S/N 122205230323
COMPLETELY REMANUFACTURED BY PRESSMASTER
WITH ALMOST ALL INTERNAL COMPONENTS REPLACED
PRACTICALLY LIKE NEW PRESSES
TONS OF FORCE ......(MAX).................... 20 TONS
SPEED (IPM) ........(APPROACH/pressing)...... 172/51
RETURN SPEED ................................ 248

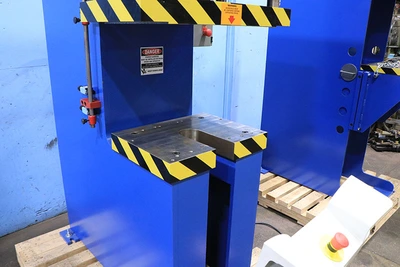

TABLE ..............(LR X FB)................ 20" X 12"
U-SLOT WIDTH ................................ 3"
DAYLIGHT .................................... 18"
STROKE ADJUSTABLE ........................... 12"
THROAT ...................................... 10"
FLOOR TO TABLE .....(FRONT TO BACK).......... 42"
HEIGHT (OVERALL)............................. 86"
CLEARANCE ................................... 7"
WIDTH ....................................... 22.5"
UPPER PLATEN .......(LR X FB)................ 14" X 7"
MOTOR HP @ 1760 RPM ......................... 10 HP
AMPS 230 VOLTS .............................. 28.4 AMP
AMPS 460 VOLTS .............................. 14.2 AMP
AMPS 575 VOLTS .............................. 11.4 AMP
CURRENTLY SET UP AT 160 VOLT, 14 AMPS, 3 PH, 60 CYCLE
STANDARD FEATURES:

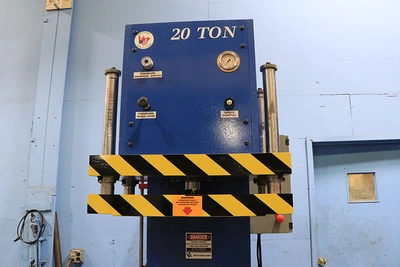

- PRESSURE GAUGE
- PRESSURE REGULATOR
- DISTANCE REVERSE SWITCH
- RAM TRAVEL IS GUIDED BY PRECISION-GROUND GUIDE RODS
- ADJUSTABLE STROKE CONTROL
- JOG MODE USED FOR SIMPLIFYING SETUPS

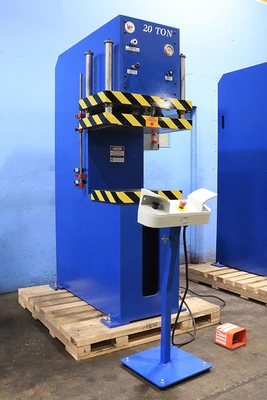

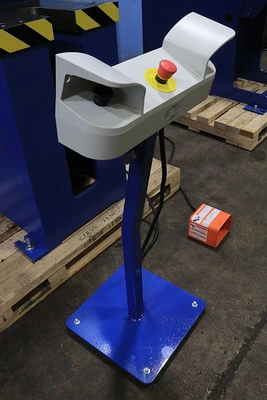

- DUAL PALM BUTTONS
- FOOT PEDAL
- ISOLATION PADS

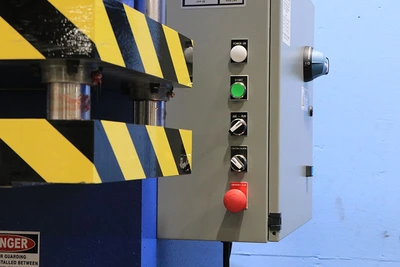

- PROGRAMMABLE CONTROL SYSTEM (PCS)
- LOW SPEED TEFC BALDOR ELECTRIC MOTOR
- MFG. IN NORTH AMERICA
FOR MORE INFORMATION: Call Rick at 973-497-7560
