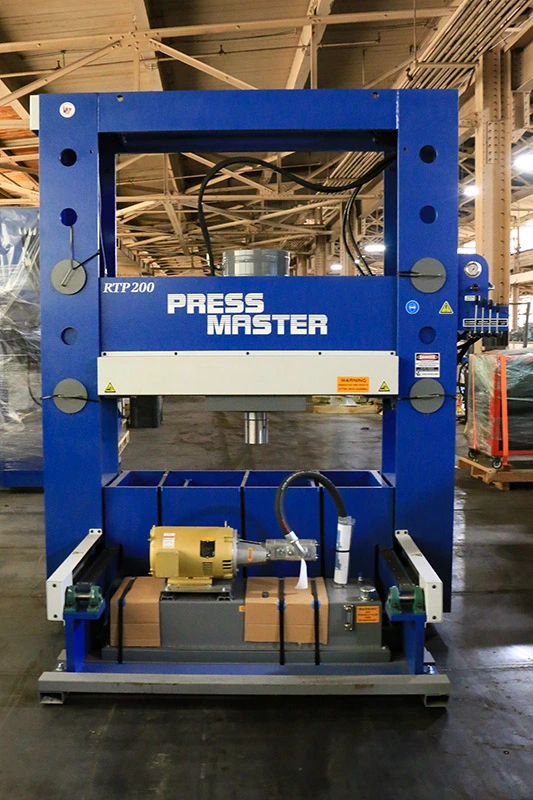

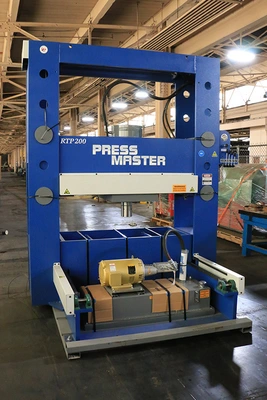

NEW Pressmaster RTP-200

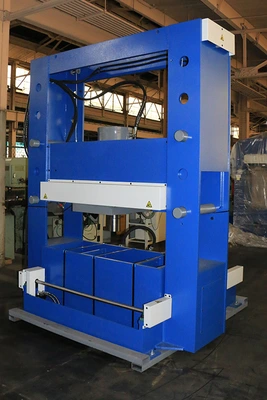

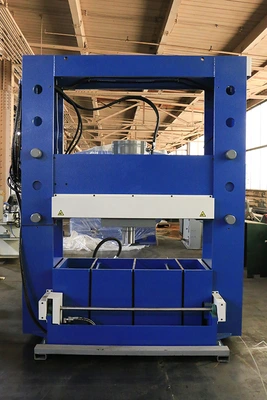

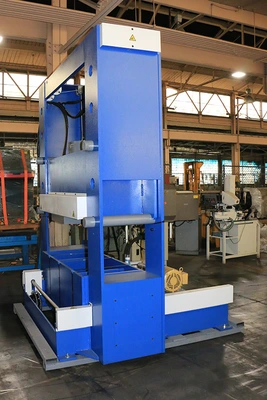

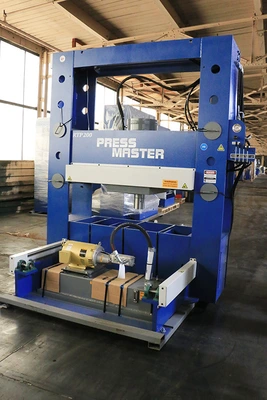

200 Ton 20" Stroke Pressmaster RTP-200 H-FRAME HYDRAULIC PRESS, Roll-In Table Press

200 TON PRESSMASTER ROLL-IN TABLE

FULL 4 AXIS POWERED STRAIGHTENING PRESS

RATED CAPACITY ........................... 200 TONS

WIDTH BETWEEN UPRIGHTS ................... 60"

DEPTH BETWEEN POSTS ...................... 20-1/4"

MAXIMUM RAM TO TABLE ..................... 32"

STROKE ................................... 20"

CYLINDER TRAVEL .......................... 27-3/4"

TABLE TRAVEL ............................. 28-1/4"

FLOOR TO TABLE TOP ....................... 26-3/4"

CYLINDER BORE SIZE ....................... 12"

PRESSING SPEED ........................... 6 INCH/MIN

ADVANCE SPEED ............................ 24 INCH/MIN

RETURN SPEED ............................. 29 INCH/MIN

WEIGHT ................................... 9,000#

SHIPPING DIMENSIONS:

 LENGTH .................................. 80"

 WIDTH ................................... 100"

 HEIGHT .................................. 111"

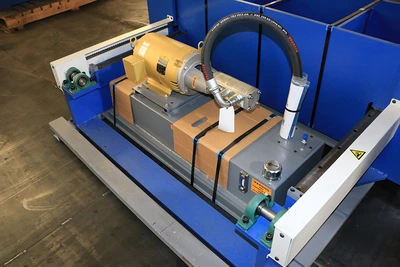

MOTOR SPECS: 10 HP, 230/460 VOLT, THREE PHASE

             (OTHER VOLTAGES AVAILABLE)

STANDARD FEATURES:

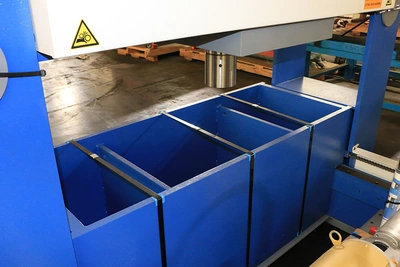

- POWERED MOVABLE TABLE FOR EASE OF LOADING & POSITIONING WORKPIECE UNDER CYLINDER

- POWERED MOVABLE WORKHEAD FOR OFF-CENTER WORK ALLOWS OPERATOR TO POSITION THE CYLINDER FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER

- HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF HEAD ASSEMBLY

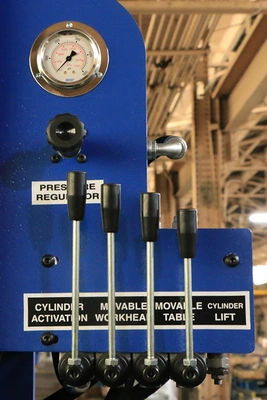

- CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK

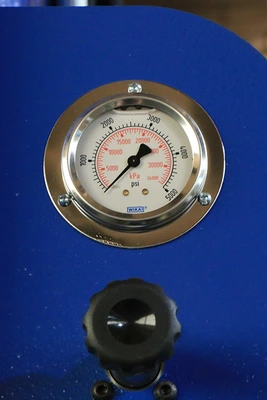

- PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE

AVAILABLE OPTIONS:

- SET OF V-BLOCKS ............................ $1,700

- STOP / START & EMERGENCY STOP .............. $1,000

- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000

- SIDE SAFETY GUARD ..............(PER SIDE).. $  750

- FOOT PEDAL ................................. $4,500

- PRESS PLATE ................................ $4,600

- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND

LEXAN GUARDING ............................... $9,500

- HANDHELD REMOTE CONTROL .................... $9,500

FOR MORE INFORMATION: Call Rick at 973-497-7560
