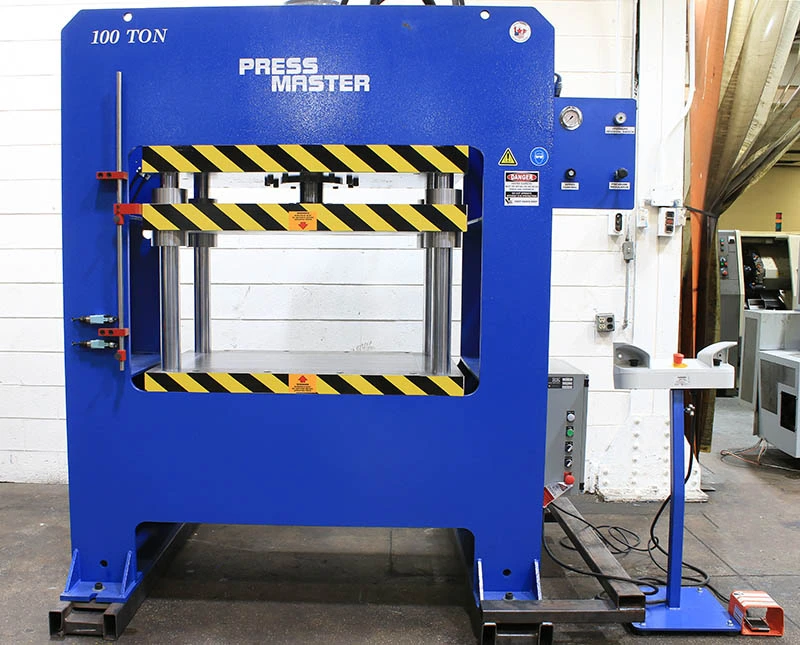

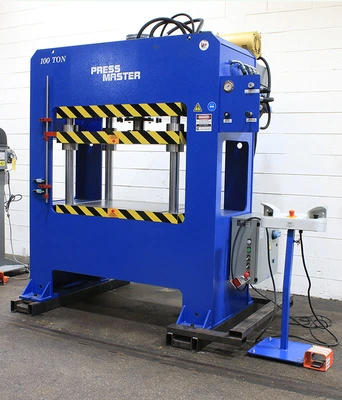

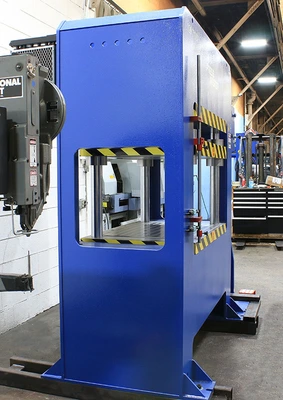

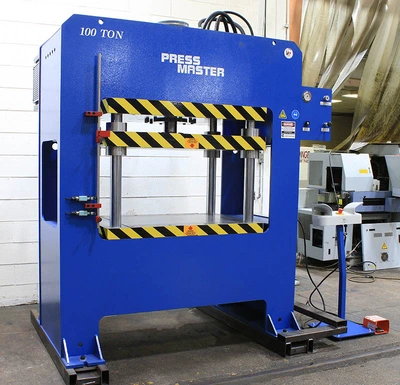

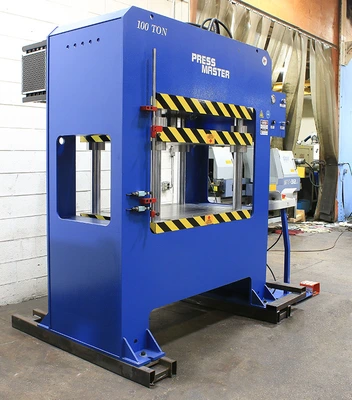

NEW Pressmaster 4PP-100

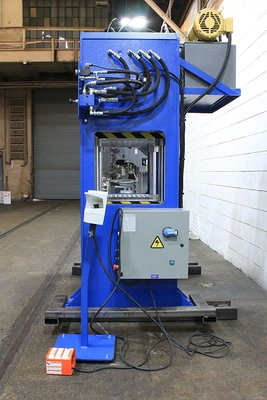

100 TON PRESSMASTER HYDRAULIC FOUR-POST PRESS

MODEL 4PP-100

TONS OF FORCE ........................ 100 TONS

RAM SPEED (APPROACH) .................  85 IPM

          (PRESS) ....................  10 IPM

          (RETURN) ................... 106 IPM

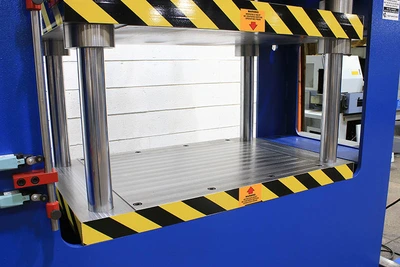

TABLE ..............(L-R X F-B)....... 34" X 30"

UPPER PLATEN (L-R).................... 34"

UPPER PLATEN (F-B).................... 30"

DAYLIGHT ............................. 22"

STROKE ADJUSTABLE .................... 15"

FLOOR TO TABLE ....................... 33-1/2"

FRONT TO BACK......................... 56-1/2"

HEIGHT (OVERALL)...................... 92"

WIDTH ................................ 71-1/2"

WEIGHT ............................... 9,800 LBS.

SHIPPING DIMENSIONS .................. 60" X 86" X 102"

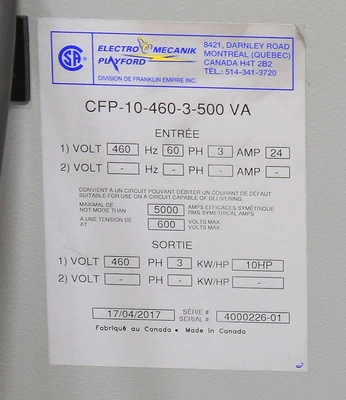

MOTOR HP @ 1760 RPM .. 10 HP 230/460/575 VOLTS, 3 PH, 60 Hz.

STANDARD FEATURES:

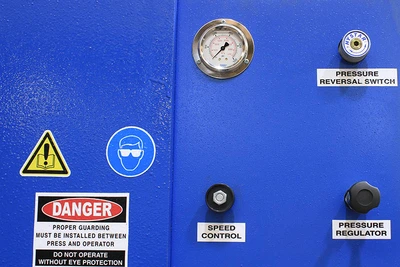

- PRESSURE GAUGE

- PRESSURE REGULATOR

- ADJUSTABLE STROKE CONTROL

- PRESSURE REVERSAL SWITCH

- ADJUSTABLE SPEED CONTROL

- AIR COOLED INDUSTRIAL OIL COOLER

- RAM TRAVEL IS GUIDED BY 4 PRECISION-GROUND CHROMED RODS

- JOG MODE USED FOR SIMPLIFYING SETUPS

- DUAL CONTROL WITH YOUR CHOICE OF USING:

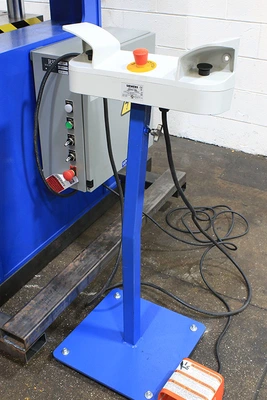

   (1) MOVEABLE PEDESTAL C/W DUAL ELECTRIC PALM BUTTONS & EMERGENCY STOP

OR (2) PALM BUTTONS

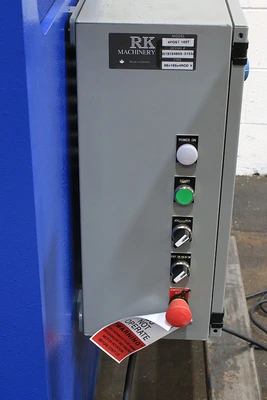

- PLC PROGRAMMABLE CONTROL SYSTEM

- 10 HP LOW SPEED ELECTRIC MOTOR

- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY, AND AVAILABLE THROUGHOUT NORTH AMERICA

- ONE YEAR WARRANTY ON ALL PARTS

- MFG. IN NORTH AMERICAN FROM US & CANADIAN COMPONENTS

AVAILABLE OPTIONS:

- T-SLOTTING ........ (PER LINEAR INCH) ................. $

- ABB HMI PROGRAMMABLE CONTROL REPLACING STANDARD CONTROL ......... $

Example of HMI capabilities:

Product 1

- Ram down to 10"

- Dwell for 3min.

- Ram up 5" inches and wait.

Product 2

- Ram down to 8.5"

- Dwell for 4min.

- Wait 30sec

- Press again for 2min

- Ram up 6" inches and wait.

FOR MORE INFORMATION: Call Rick at 973-497-7560
