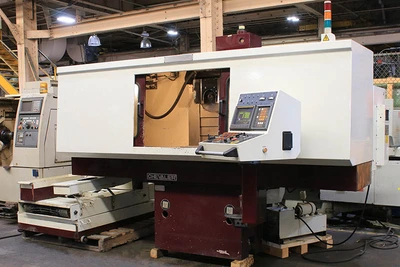

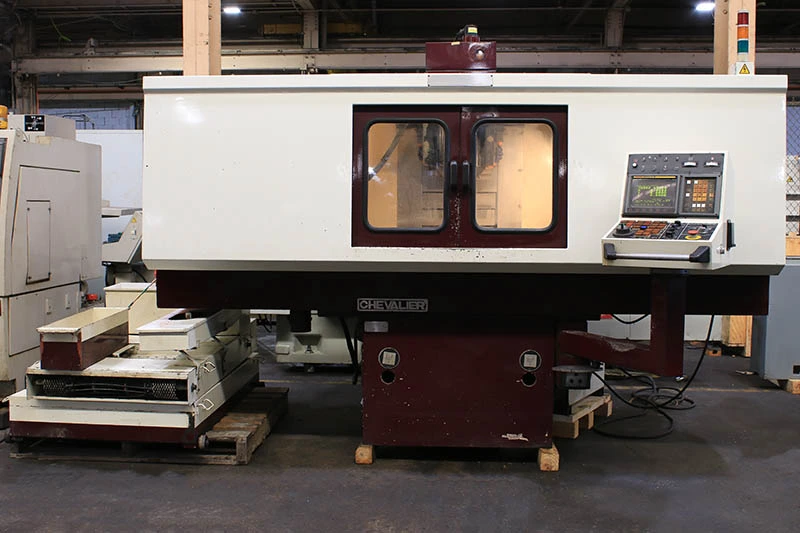

USED 2000 Chevalier FSG-B818CNC

8" Width 18" Length Chevalier FSG-B818CNC SURFACE GRINDER, FANUC OM CNC, COLUMN TYPE, 10 H.P., BALLSCREWS

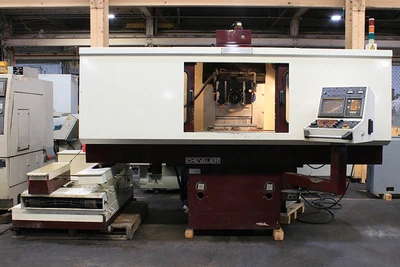

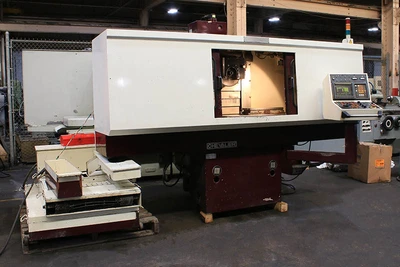

  8" X 18" CHEVALIER CNC COLUMN TYPE SURFACE GRINDER,

  ALL THREE AXES ARE BALLSCREW DRIVEN,

  WITH FANUC OMC 3-AXIS CNC CONTROL & AC SERVO MOTORS

* PROFILE, SURFACE, FORM, STEP, INDEX & CREEPFEED *

MODEL: FSG-B818CNC    S/N: K1896001     NEW: 2000

SPECIFICATIONS:

TABLE SIZE:                               8" X 18"

MAX DIST FR TABLE TO SPINDLE CENTERLINE:  19"

CROSS TRAVEL, MAX                         11"

COLUMN FEED INFINITELY VARIABLE           0 TO 13' FPM

T-SLOT SIZE X NUMBER:                     15/32" X 1

MAXIMUM TABLE LOAD:                       440LBS

TABLE SPEED - INFINITELY VARIABLE:        0.032 to 49' FPM

MAXIMUM LONGITUDINAL TRAVEL:              25 1/2"

WHEELHEAD  FEED - INF VARIABLE:           0-20IPM

GRINDING SPEED:                           500 to 3,500 RPM

POWER RATING:                             10 HP

GRINDING WHEEL:                           12" x 1- 1/4" x 3"

MACHINE WEIGHT:                           8,700 LBS.

ACTUAL DIMS OF MACHINE:                   118" X 92"W X 93"H

EQUIPPED WITH:

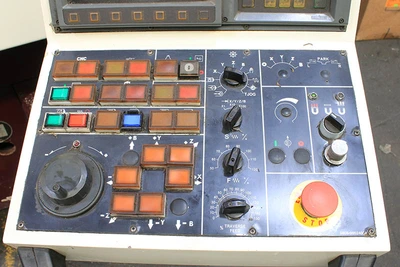

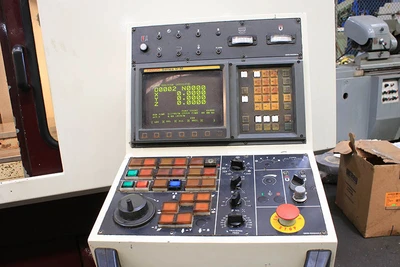

FANUC OMC 3-AXIS CNC CONTROL

FANUC RED CAP AC SERVO MOTORS

-FOUR STANDARD GRINDING CYCLES: CRISS-CROSS, SURFACE,

  PLUNGE AND PITCH MODES WITH AUTOMATIC WHEEL DRESSING AND

  COMPENSATION. THIS MAKES THE MACHINE HIGHLY CAPABLE

  TO DO PROFILE (CONTOUR) GRINDING, CREEPFEED GRINDING,

  FORM GRINDING AND STEP GRINDING WITH AUTO WHEEL DRESS

  WITH COMPENSATION.

10 H.P. SPINDLE MOTOR/3/50-60/230-460 VOLTS

YASKAWA "616PC5" VARISPEED DRIVE FOR THE SPINDLE

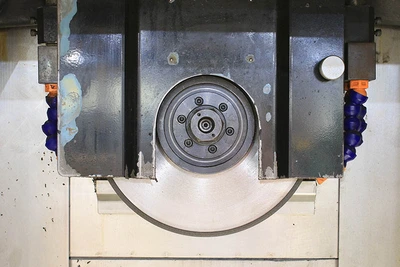

MACHINE HAS A 12" DIAMOND GRINDING WHEEL ON IT

PRECISION BALLSCREWS ON CROSSFEED, ELEVATING AND TABLE

AC SERVO MOTOR DRIVE ON ALL 3 AXES FOR CREEPFEED GRINDING

EXTREMELY RIGID SPINDLE THAT ARE SUPPORTED BY SIX ANGULAR

  CONTACT BALL BEARINGS.

THE COLUMN TRAVERSES ON PRECISION ROLLER BEARINGS ON

  HARDENED AND GROUND GUIDEWAYS.

T-SHAPE DESIGN MACHINE BASE GIVES IT THE RIGIDITY

 FOR HEAVY DUTY OPERATIONS.

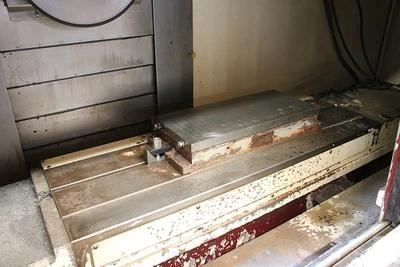

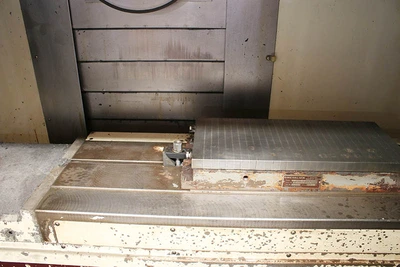

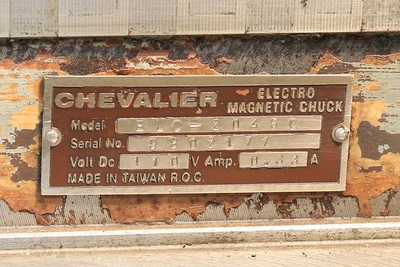

8" x 18" ELECTRO-MAGNETIC CHUCK

CHUCK CONTROL BUILT-IN TO THE CONSOLE, VARIABLE HOLD INTENSITY

LARGE COOLANT SYSTEM WITH PAPER FILTRATION

FULL ENCLOSURE

MACHINE IS PRESENTLY WIRED FOR 3ph/50-60Hz/230 VOLTS

SPECIAL NOTE:

THIS MACHINE RUNS BEAUTIFULLY.  THE SPINDLE IS SUPER QUIET.

LINK TO VIDEO: https://youtu.be/CYFbzKuZFSQ

** EXCEPTIONAL (ORIGINAL) CONDITION & APPEARANCE **

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
