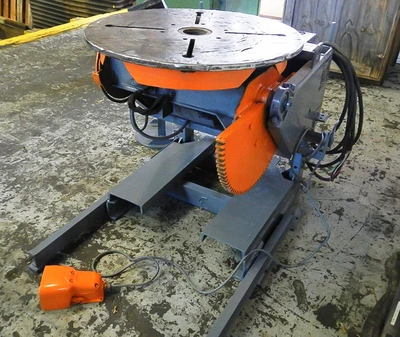

USED 1969 Ransome 10-P

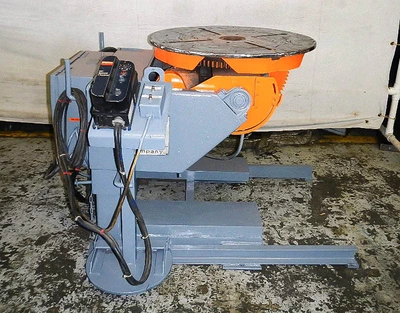

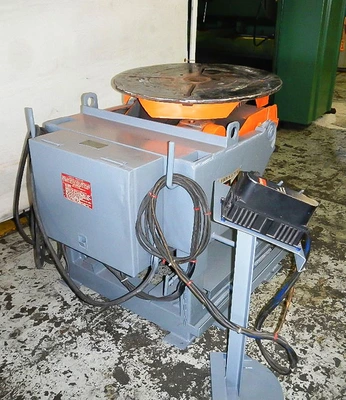

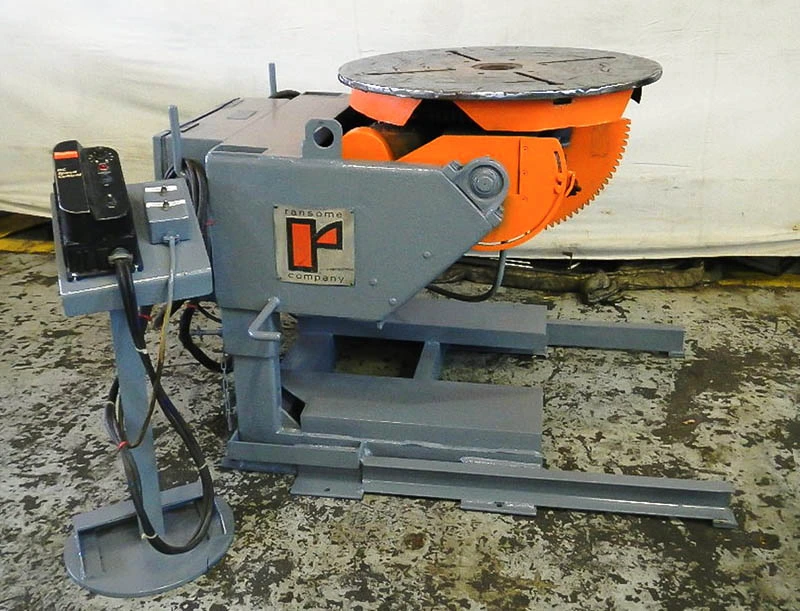

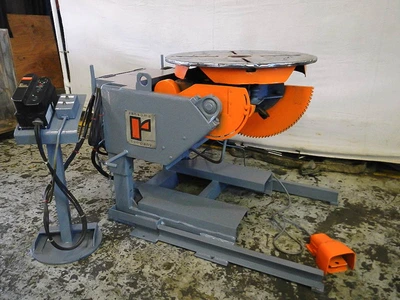

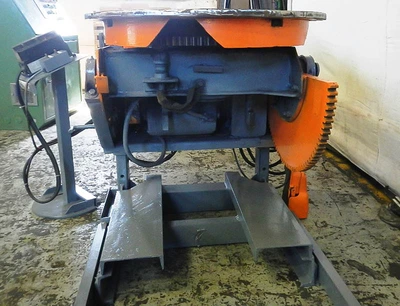

1000Lb Cap. Ransome 10-P WELDING POSITIONER, Powered Tilt and Rotation

 1,000 LB. RANSOME WELDING POSITIONER

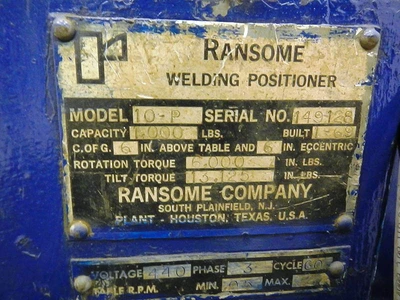

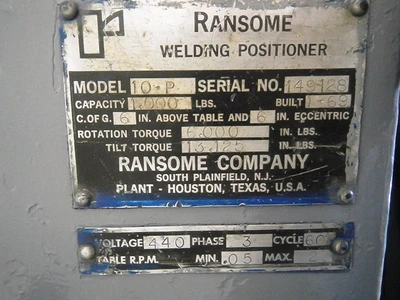

MODEL 10-P          S/N 149128          YEAR 1969

Capacity ................................ 1,000 lbs

Rotation torque ......................... 6,000 in. lbs.

Tilt Torque ............................. 13,125 in. lbs

Table diameter .......................... 30"

Table RPM min. .......................... 0.5

Table RPM max. .......................... 2

Tilt range .............................. 0 - 135 degrees

Vertical height adjustment .............. 18" (powered)

Motor ................................... 230 / 460 / 3ph

Dimensions 52" x 42" x 40" high

Weight 1,500 lbs

Machine is equipped with

- Power tilt & rotation

- Remote foot pedal

- Manual elevation adjustment

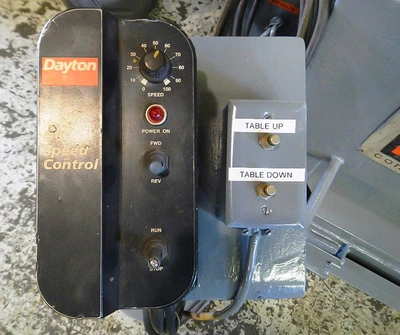

- Pedestal mounted variable speed control

*PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION

** Located in our Harrison,NJ Warehosue **

FOR MORE INFORMATION: Call Rick at 973-497-7560
