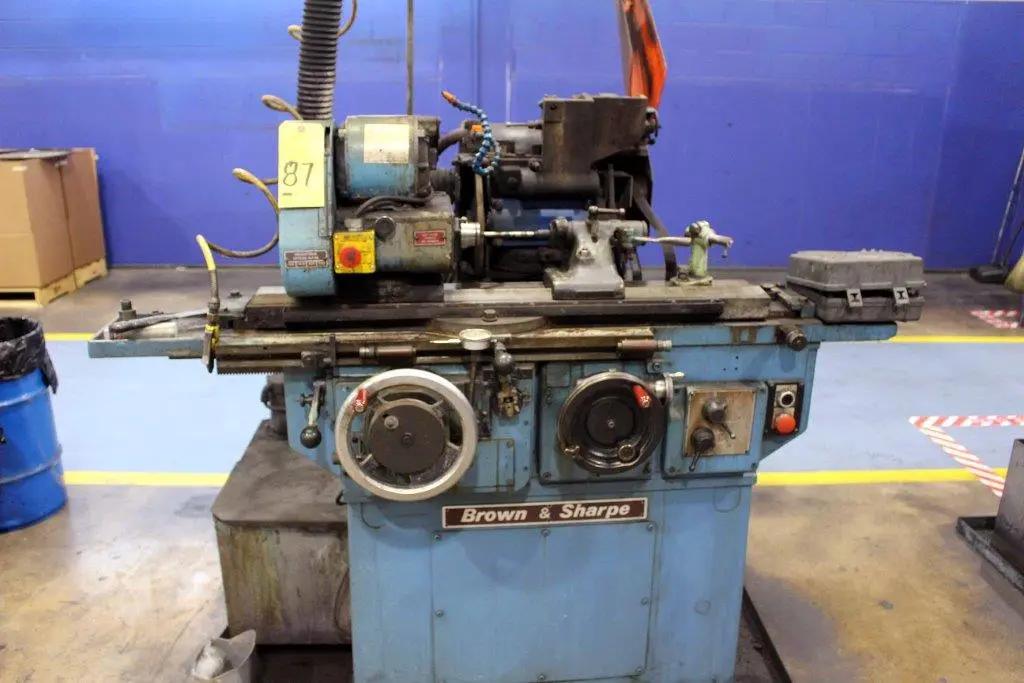

USED 1981 Brown & Sharpe 814U

8" Swing 14" Centers Brown & Sharpe 814U OD GRINDER, SWING DOWN I.D. AVAIL. POWER TABLE

    BROWN & SHARPE "PRECISION"

UNIVERSAL O.D./I.D. CYLINDRICAL GRINDER

MODEL:  814U VALUEMASTER

S/N: 525-8144-2971

NEW: 1981

  CAPACITY:

- GRINDS WORK UP TO ..................... 8" DIAMETER

- GRINDS LENGTH ......................... 14"

- DISTANCE BETWEEN CENTERS .............. 24"

  WHEELHEAD:

- GRINDING WHEEL SIZE ......... 10", 7" OR 5" DIAMETER

- GRINDING WHEEL SPEEDS (3) ... 2730, 3600 & 5150 RPM

- WHEELHEAD TRAVEL ...................... 8-3/8"

- WHEELHEAD SWIVELS, LEFT & RIGHT ....... 110°

  SWIVEL TABLE:

- ANGULAR SETTING TO LEFT & RIGHT ....... 90°

- FINE SCREW ADJ. FOR SETTING TAPERS

    UP TO ............................... 3" PER FT.

- TABLE TRAVEL .......................... 22"

- TRAVEL PER REV. OF HANDWHEEL .......... 1/4" SLOW

                                          6-1/4" FAST

  HEADSTOCK:

- SWIVELS LEFT & RIGHT ................. 100 DEGREES

- SPINDLE SPEEDS (4) ................... 128 TO 540 RPM

- APPROX. FLOOR SPACE ............... 68" x 55" x 65"H

- APPROX. WEIGHT ....................... 2,900 LBS.

EQUIPPED WITH:

SWING DOWN I.D. GRINDING ATTACHMENT WITH SPINDLE

POWER TABLE TRAVERSE (OPTION)

HAS ADDITIONAL TABLE SWIVEL FEATURE, FROM THE CENTER,

 FOR LARGE ADJUSTMENT OF 90°

DOUBLE ENDED WHEEL SPINDLE, LEFT & RIGHT

PRESENTLY SET-UP WITH 10" O.D. GRINDING WHEEL

MACHINE CAN BE USED WITH 10", 7" OR 5" DIA. WHEELS

DUAL LIVE/DEAD HEADSTOCK SPINDLE

FINE CROSS FEED KNOB (.0001" ON WORK DIA.)

ANTI-FRICTION BEARING WHEELHEAD SPINDLE

TABLE MOUNTED WHEEL DRESSER

COOLANT PUMP & PIPING

1 H.P. 3/60/230-460 VOLT WHEELHEAD MOTOR

1/6 H.P. WORKHEAD MOTOR

MACHINE IS PRESENTLY WIRED FOR 460 VOLTS

  ** EXCELLENT CONDITION & APPEARANCE **

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
