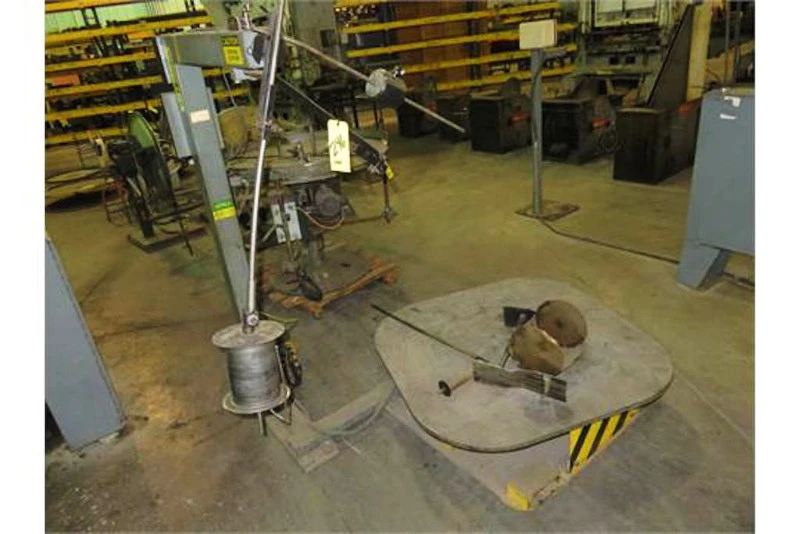

USED 1995 CoilMate CM6048

6000Lb Cap. 48" Width CoilMate CM6048 UNCOILER, Pallet Decoiler

COILMATE MODEL PALLET UNCOILER

MODEL CM6048         S/N 3354          NEW 1995

Capacity ......................... 6,000 lbs.

Max OD ........................... 48"

Platform size .................... 48"

Material rating .................. .065" @ 6"

Speed ............................ 0 - 23 rpm (variable)

Coil stack height ................ up to 37"

Coil to platform height .......... 13"

Motor 3/4 hp DC drive

Voltage 110V

Dimensions 68" x 65" x 88" high

Weight 750 lbs

Machine is equipped with

- Rotating platform

- Dancer arm w/ potentiometer

- Variable speed by DC regenerative drive

- Control system

*PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION

** Located in our Harrison,NJ Warehosue **

FOR MORE INFORMATION: Call Rick at 973-497-7560
