12 Ton 12" Stroke Pressmaster CFP-12 HYDRAULIC PRESS, Brand New Design

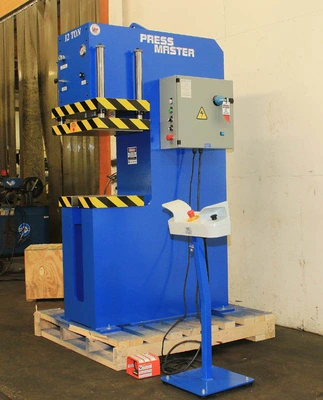

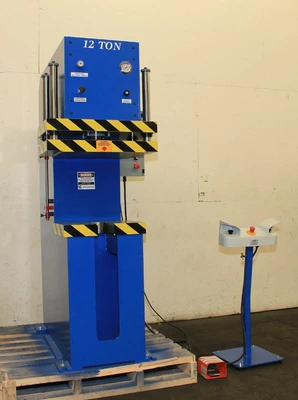

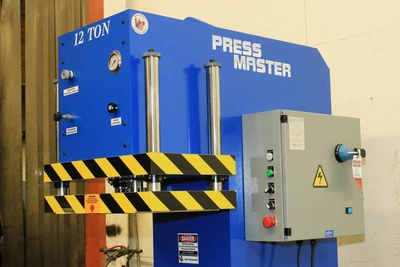

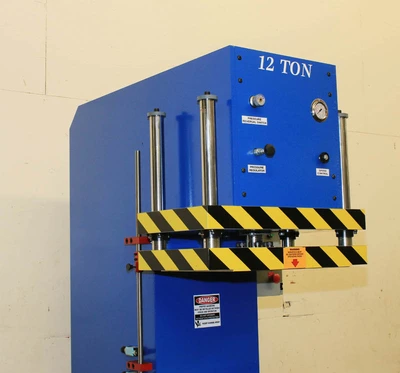

12 TON PRESSMASTER C-FRAME HYDRAULIC PRESS
MODEL CFP-12 BRAND NEW
TONS OF FORCE ......(MAX).............. 12 TONS
APPROACH SPEED ........................ 186 IPM
PRESS SPEED ........................... 44 IPM
RETURN SPEED .......................... 269 IPM

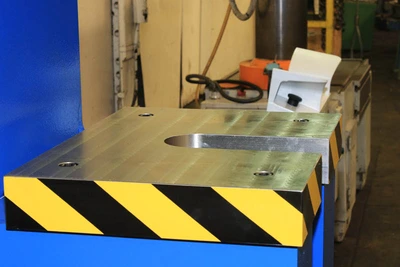

TABLE ..............(LR X FB).......... 21" X 16"
DAYLIGHT .............................. 18"
MAX. STROKE ADJUSTABLE ................ 12"
THROAT ................................ 11"
U-SLOT OPENING ........................ 4"
FLOOR TO TABLE ........................ 36"
FRONT TO BACK ......................... 46"
HEIGHT (OVERALL) ...................... 87"
CLEARANCE ............................. 6"
WIDTH ................................. 26"
UPPER PLATEN .......(LR X FB).......... 21" X 16"
MOTOR HP @ 1750 RPM ................... 5 HP
VOLTAGE AVAILABLE ..................... 230v / 3 PH
STANDARD FEATURES:

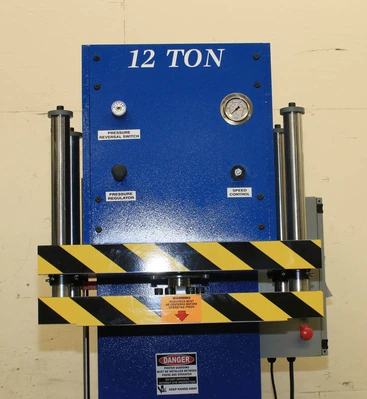

- PRESSURE GAUGE
- PRESSURE REGULATOR
- ADJUSTABLE SPEED CONTROL

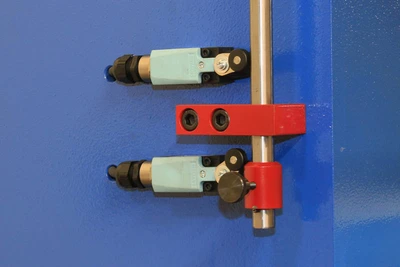

- ADJUSTABLE STROKE CONTROL
- PRESSURE REVERSAL SWITCH

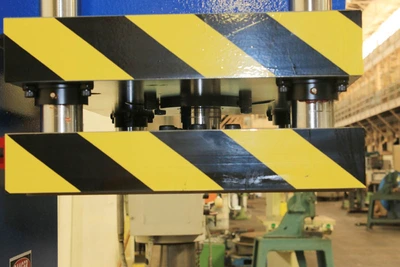

- RAM TRAVEL IS GUIDED BY 4 PRECISION-GROUND CHROMED RODS
- JOG MODE USED FOR SIMPLIFYING SETUPS

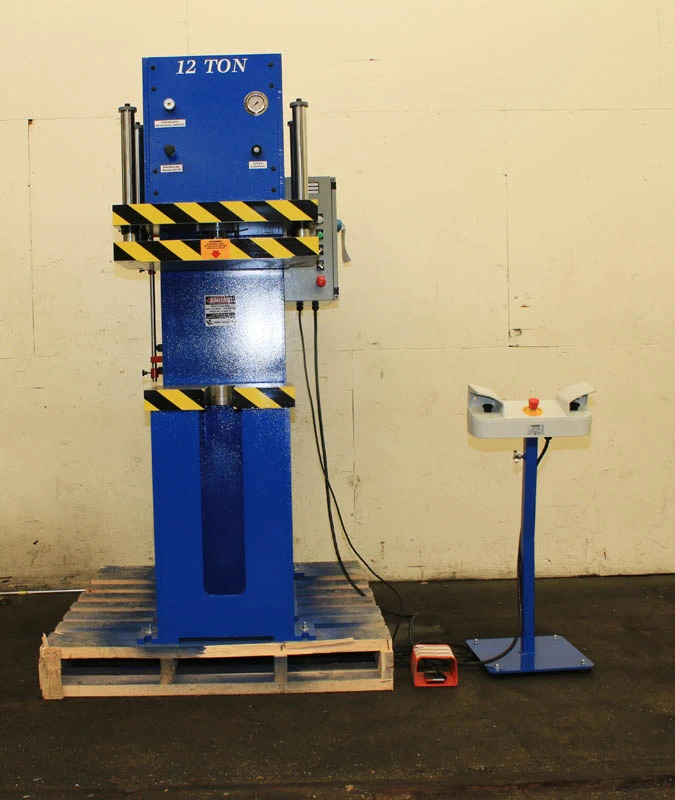

- DUAL CONTROL-YOUR CHOICE OF USING:

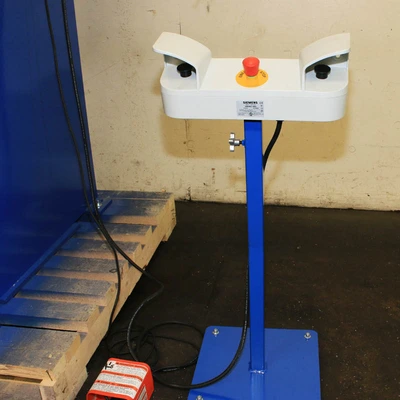

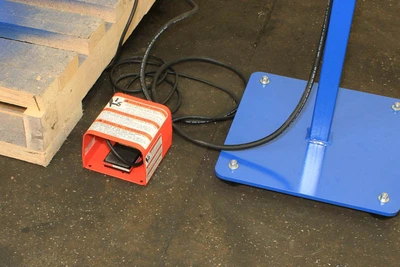

(1) MOVEABLE PEDESTAL C/W DUAL ELECTRIC PALM BUTTONS & EXTRA EMERGENCY STOP OR (2) FOOT PEDAL
- P.L.C. PROGRAMMABLE CONTROL SYSTEM
- QUALITY BALDOR MOTOR, LOW SPEED
- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY, AND AVAILABLE THROUGHOUT NORTH AMERICA
WEIGHT .................... 4,000#
SHIPPING DIMENSIONS ....... 54"L x 50"W x 94"H
AVAILABLE OPTIONS:
- FULL LIGHT CURTAIN GUARDING AROUND THREE SIDES ... $
- T-SLOTTING .......... (PER LINEAR INCH............ $
- AIR COOL INDUSTRIAL OIL COOLER ................... $
FOR MORE INFORMATION: Call Rick at 973-497-7560
