NEW Pressmaster CFP-25

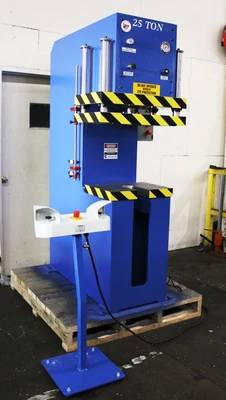

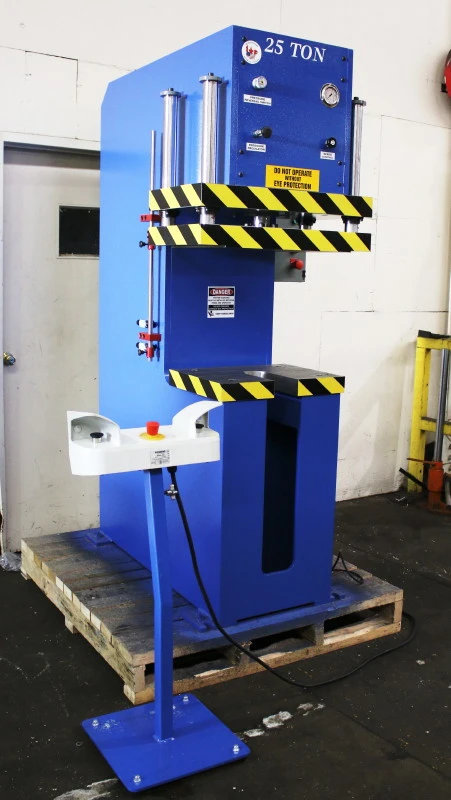

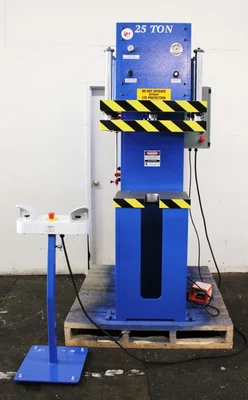

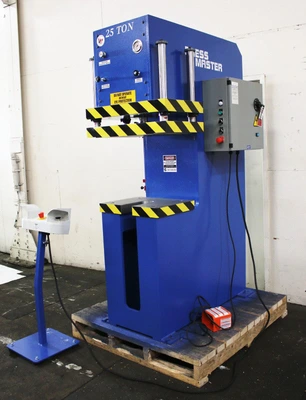

25 TON PRESSMASTER C-FRAME HYDRAULIC PRESS

MODEL CFP-25     BRAND NEW

TONS OF FORCE ......(MAX)........... 25 TONS

APPROACH SPEED ..................... 143 IPM

PRESS SPEED ........................ 21 IPM

RETURN SPEED ....................... 191 IPM

TABLE ..............(LR X FB)....... 21" X 16"

DAYLIGHT ........................... 17"

MAX. STROKE ADJUSTABLE ............. 12"

THROAT ............................. 11"

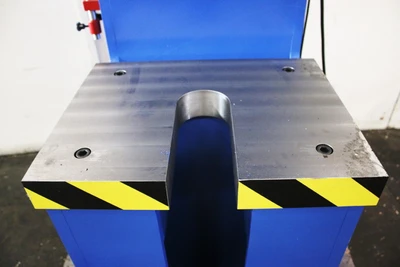

U-SLOT OPENING ..................... 4"

FLOOR TO TABLE ..................... 36"

FRONT TO BACK....................... 46"

HEIGHT (OVERALL).................... 87"

CLEARANCE .......................... 6"

WIDTH .............................. 26"

UPPER PLATEN .......(LR X FB)....... 21" X 16"

MOTOR HP @ 1750 RPM ................ 5 HP

VOLTAGE AVAILABLE ... 230 / 460 / 575 / 3 PH /60 Hz

WEIGHT .................... 4,000#

SHIPPING DIMENSIONS ....... 54"L x 50"W x 94"H

STANDARD FEATURES:

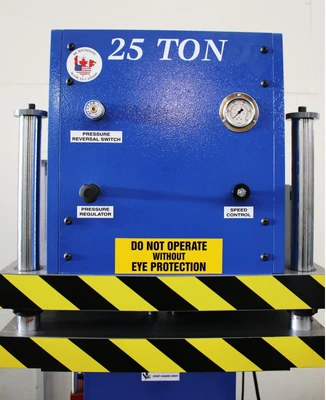

- PRESSURE GAUGE

- PRESSURE REGULATOR

- ADJUSTABLE SPEED CONTROL

- ADJUSTABLE STROKE CONTROL

- PRESSURE REVERSAL SWITCH

- RAM TRAVEL IS GUIDED BY 4 PRECISION-GROUND CHROMED RODS

- JOG MODE USED FOR SIMPLIFYING SETUPS

- DUAL CONTROL-YOUR CHOICE OF USING:

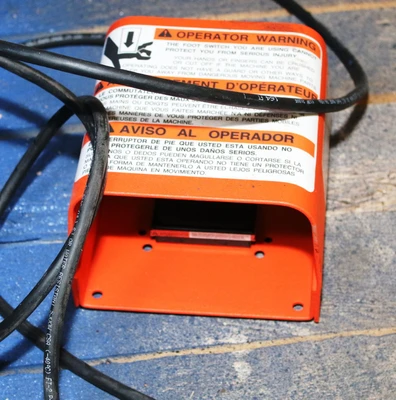

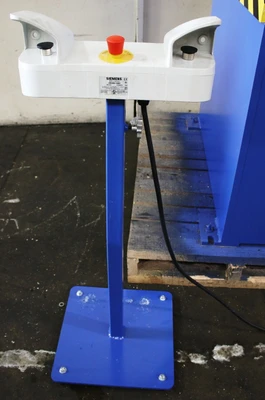

(1) MOVEABLE PEDESTAL C/W DUAL ELECTRIC PALM BUTTONS & EXTRA EMERGENCY STOP OR (2) FOOT PEDAL

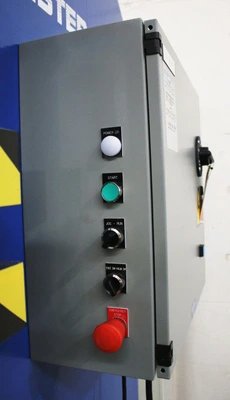

- P.L.C. PROGRAMMABLE CONTROL SYSTEM

- QUALITY BALDOR MOTOR, LOW SPEED

- AIR-COOLED INDUSTRIAL OIL COOLER

- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY, AND AVAILABLE THROUGHOUT NORTH AMERICA

- FULL ONE YEAR WARRANTY ON ALL PARTS

AVAILABLE OPTIONS:

- FULL LIGHT CURTAIN GUARDING ON 3 SIDES ..... $5,200

- FULL GUARDING ON 3 SIDES ................... $3,100

- T-SLOTTING ......... (PER LINEAR INCH) ..... $25

FOR MORE INFORMATION: Call Rick at 973-497-7560
