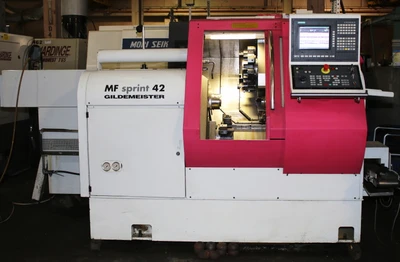

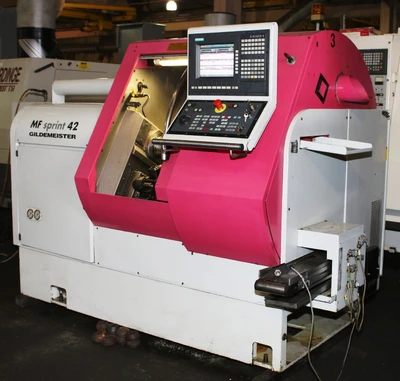

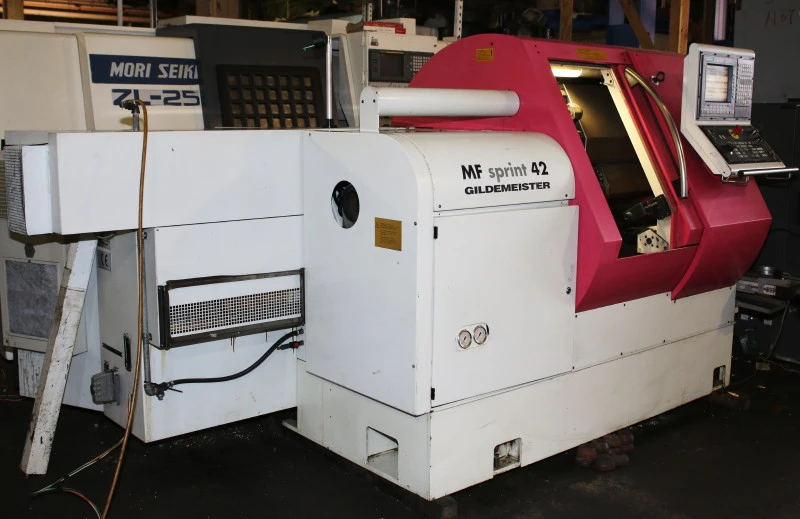

USED 2000 Gildemeister MF Sprint 42

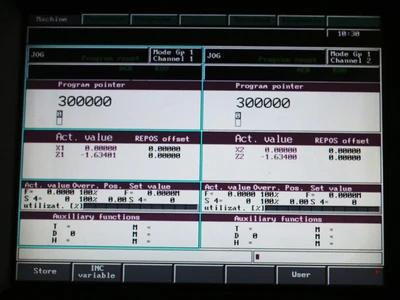

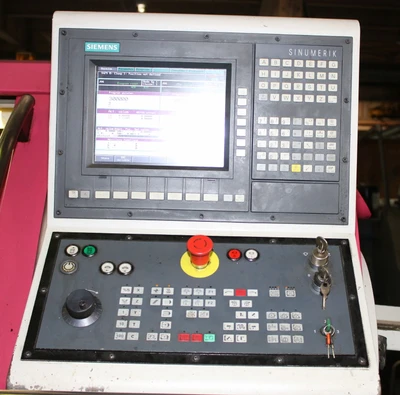

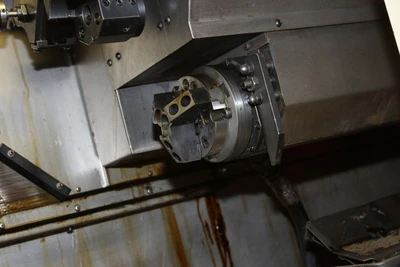

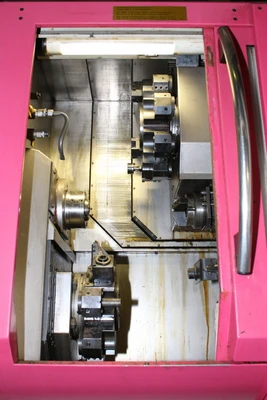

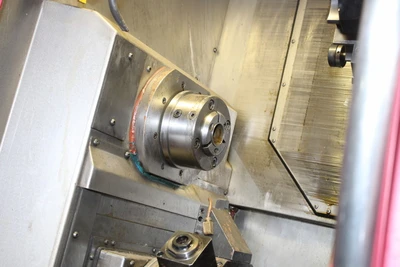

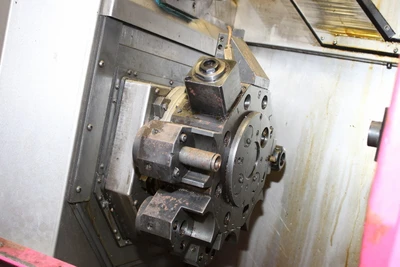

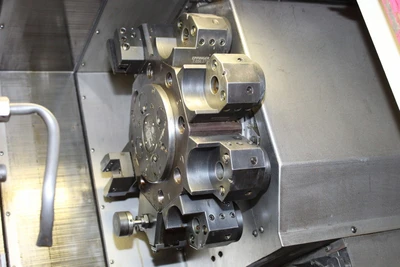

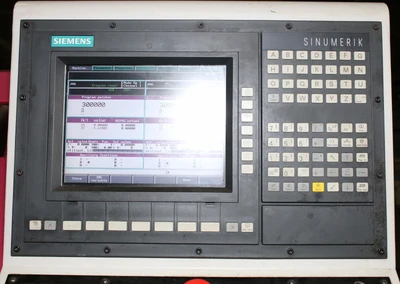

GILDEMEISTER MF SPRINT 42 MULTI-AXIS CNC TURNING CENTERNEW: 2000 SPECIFICATIONS:MAIN SPINDLE:BAR DIAMETER ................... 1.654" (42mm)SPINDLE HOLE DIAMETER .......... 2.205"MAIN DRIVE:MAX. DRIVE RATING .............. 25.5/18.8 HPROTATIONAL SPEED RANGE ......... 31-6300 RPMMAX. TORQUE .................... 133/99 ft-lbfSPEED OF C-AXIS ................ 120 RPMC-AXIS TORQUE .................. 133 ft/lbfSLIDE 1:X-AXIS TRAVEL .................. 6.102"Z-AXIS TRAVEL .................. 11.024"RAPID TRAVERSE RATE X/Z ........ 73.82 ft/minSLIDE 2:X-AXIS TRAVEL .................. 3.228"Z-AXIS TRAVEL .................. 5.118"RAPID TRAVERSE RATE X/Z ........ 73.82 ft/minTOOL HOLDER:NUMBER OF TOOLS ................ 8SHANK DIAMETER ................. 1.181"NUMBER OF DRIVEN STATIONS ...... 4COUNTER SPINDLE:CLAMPING DIA. WITH COLLET ...... 1.654" (42mm)CLAMPING DIA. WITH 3 JAW CHUCK . 1.654"MAX. DRIVE RATING .............. 10.2/6.2 HPMAX. ROTATIONAL SPEED .......... 5000 RPMDIMENSIONS AND WEIGHT:TOTAL LENGTH w/CHIP CONVEYOR ... 138"TOTAL DEPTH w/SWITCH CABINET ... 65"APPROX WEIGHT .................. 11,025 LBS  EQUIPPED WITH: - SIEMENS SINUMERIK 840C CNC CONTROL - FMB TURBO MAGAZINE BARLOADER - 8 POSITION UPPER AND LOWER TURRETS w/4 LIVE STATIONS EACH - PARTS CONVEYOR - CHIP CONVEYOR - ALL AVAILABLE LIVE AND STATIC TOOLHOLDERS - ALL AVAILABLE MANUALS

FOR MORE INFORMATION: Call Mike at 973-497-7540
