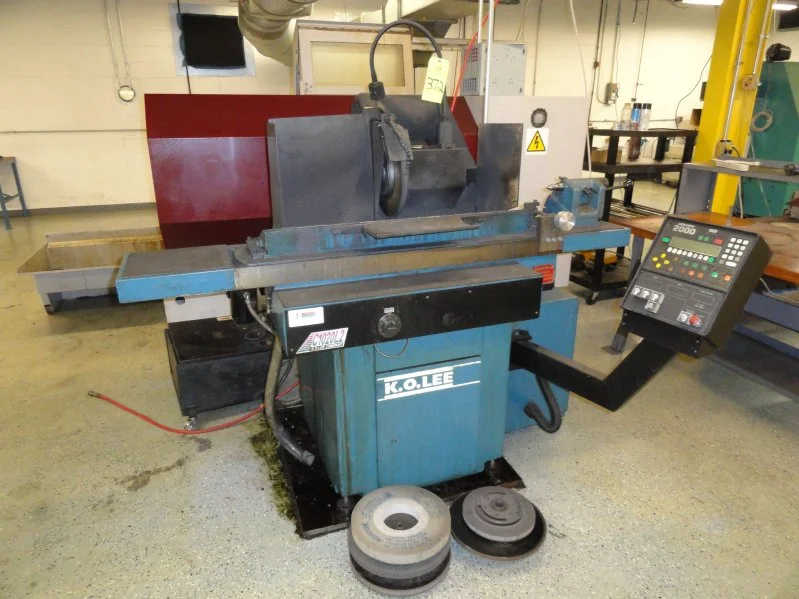

USED 1997 K.O. Lee C1020 L2

10" Swing 20" Centers K.O. Lee C1020 L2 OD GRINDER, LEEMATIC 2000 CONTROL

  10" X 20" K.O. LEE (MADE IN USA)

PLAIN "SUPER-PRECISION" CYLINDRICAL GRINDER

  ** LEEMATIC 2000 CNC CONTROL FOR TABLE

     TRAVERSE& INFEED **

MODEL: C1020 L2      S/N: S80BS2576-2-97    NEW: 1997

  CAPACITY:

SWING ........................................... 10"

DISTANCE BETWEEN CENTERS ........................ 20"

TABLE SWIVELS ............................ +/- 10 DEG

MAXIMUM LONGITUDINAL TABLE TRAVEL ............... 24"

FEED RATE .......................... 0.1" TO 150" IPM

  WORK HEAD:

SWIVEL ...................................... 135 DEG

SPINDLE SPEEDS, INF. VARIABLE FROM .... 35 TO 700 RPM

HOLE THRU SPINDLE ........................... 1.3" ID

CENTER TAPER .................................. #5 MT

  CROSSFEED:

FEED RATE ........................... 0.1" TO 75" IPM

MAXIMUM TRAVEL ............................... 7-1/2"

HANDWHEEL INDEX GRADUATED ................... 0.0001"

CONTROL RESOLUTION ......................... 0.00002"

REPEATABILITY ...........................=/- 0.0001"

  WHEELHEAD:

GRINDING WHEEL SIZE .......... 14" X 1-1/2" X 5" BORE

MOTOR .......................................... 5 HP

  APPROX. MACHINE WEIGHT ...................... 3,450 LBS

APPROX. FLOOR SPACE REQUIRED FOR OPERATION .. 96" X 75"

  EQUIPPED WITH:

LEEMATIC 2000 (PENDANT MOUNTED) CONTROL ALLOWING

  PUSH-BUTTON CONTROL OF BOTH TABLE& INFEED SERVO-MOTOR

  AXIS. BOTH AXIS ARE BALLSCREW DRIVEN WITH CLOSED LOOP

  FEEDBACK FOR ACCURACY. BUILT-IN PROGRAMS INCLUDE

  CYLINDRICAL, STEP, SHOULDER & PLUNGE GRINDING CYCLES.

  IN ADDITION, FULL IN-CYCLE WHEEL DRESSING WITH

  AUTOMATIC WHEEL DRESS COMPENSATION IS PROVIDED.

CAST IRON CONSTRUCTION

WORKHEAD & TAILSTOCK

COOLANT SYSTEM

  ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

  *** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) ***

FOR MORE INFORMATION: Call Andy at 973-497-7600
