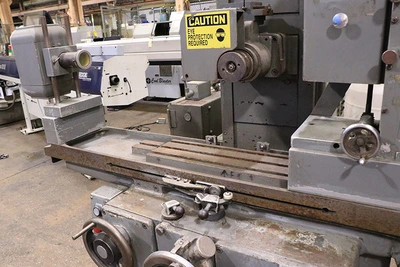

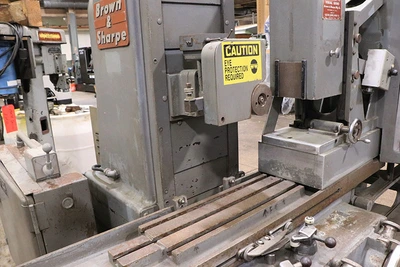

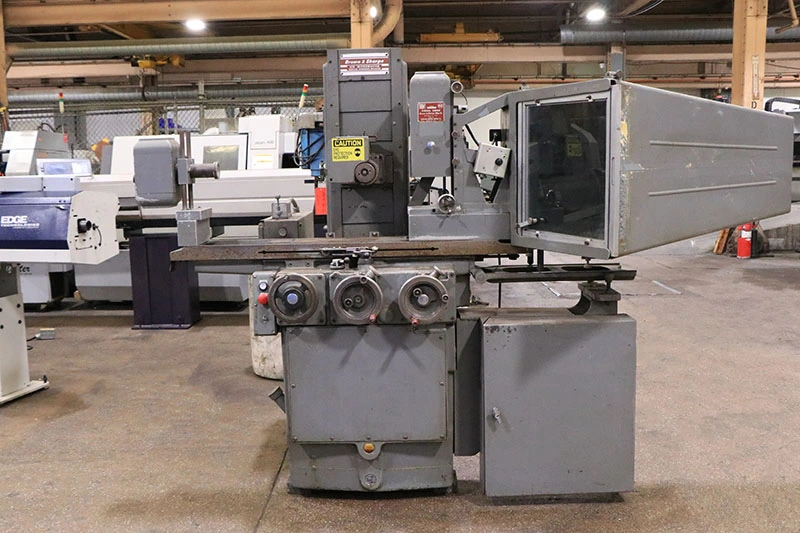

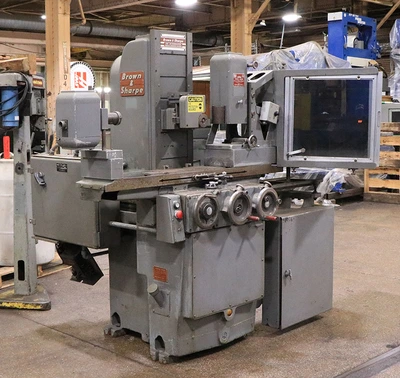

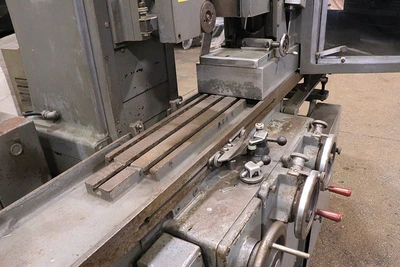

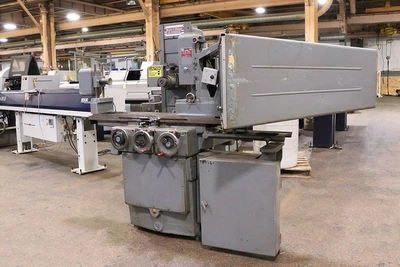

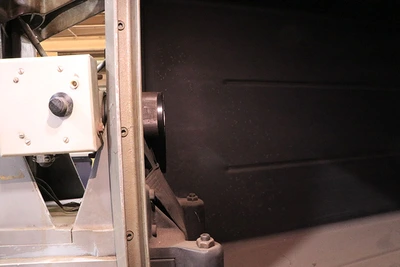

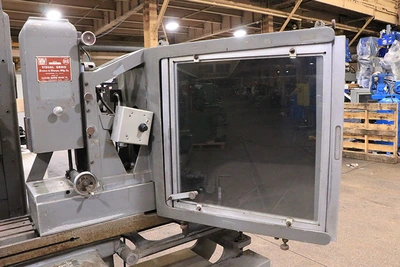

USED 1968 Brown & Sharpe 618 MICROMASTER

6" Width 18" Length Brown & Sharpe 618 MICROMASTER VISUAL SURFACE GRINDER, BOX TYPE DUST COLLECTOR

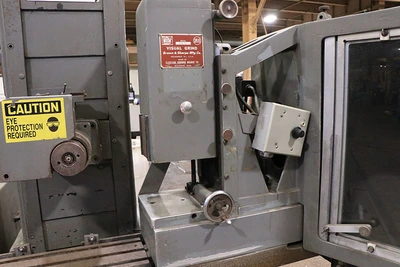

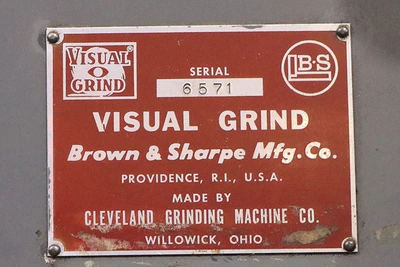

6" X 18" BROWN & SHARPE 'VISUAL GRIND" SURFACE GRINDER S/N: 523-6181-2658      NEW: 1966 WIDTH AND LENGTH GROUND ...................... 6" X 18"HEIGHT OF WORK GROUND WITH 8" WHEEL ............... 15" GRINDING WHEEL SIZE ................ 8" X 1/2" X 1-1/4" MAXIMUM LONGITUDINAL TRAVEL ....................... 22" CROSS FEED TRAVEL .................................. 7" CROSS HANDWHEEL, GRADUATED TO READ TO ......... 0.0002" CROSS FINE FEED KNOB, GRADUATED TO READ TO .... 0.0001" VERTICAL TRAVEL OF SPINDLE .................... 15-3/4" VERTICAL MOVEMENT OF SPINDLE PER HANDWHEEL REV... 0.05" VERTICAL HANDWHEEL, GRADUATED TO READ TO ...... 0.0002" VERTICAL FINE FEED KNOB, GRADUATED TO READ TO . 0.0001" APPROXIMATE MACHINE WEIGHT .................. 4,000 LBS    B& S "VISUAL GRIND" SYSTEM -TRUE IMAGE OPTICAL PROJECTION SYSTEM -VISUAL CONTROL OVER ALL GRINDING OPERATIONS -WATCH QUALITY CONTROL IN PROGRESS -GRIND TO ANY DRAWING ON THE SCREEN OR EVEN THE WORKPIECE   ITSELF.-STANDARD SQUARE CHART ASSEMBLY  -VARIABLE LIGHT INTENSITY CONTROL-10X LENS   EQUIPPED WITH:HAND FEEDSFINE FEED KNOBS FOR CROSS & VERTICAL FEEDS (.0001" GRAD.) FORM GRINDING UNIT ON TABLESET-UP FOR DRY FRINDING B & S "SUPER-PRECISION" SPINDLE 3/60/220-440 VOLT ELECTRICS   SPECIAL NOTE:MACHINE WAS USED WITH A "OPTI-DRESS" MODEL "E" WHEEL FORMING UNIT, IT HAS BEEN SOLD SEPARATELY FROM THE MACHINE. ** VERY GOOD CONDITION& APPEARANCE  - ORIGINAL PAINT **** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
