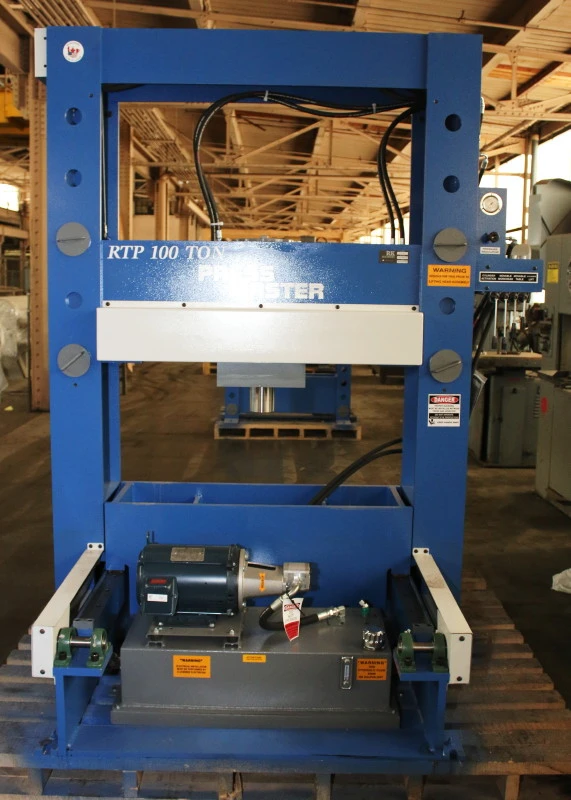

USED Pressmaster RTP-100T

100 Ton 12" Stroke Pressmaster RTP-100T H-FRAME HYDRAULIC PRESS, w/4 Axis Powered Hyd Roll-In Table & Workhead

 100 TON PRESSMASTER ROLL-IN TABLE

FULL 4 AXIS POWERED

STRAIGHTENING PRESS

RATED CAPACITY ......................... 100 TONS

WIDTH BETWEEN UPRIGHTS ................. 48"

DEPTH BETWEEN POSTS .................... 13-1/4"

MAXIMUM RAM TO TABLE ................... 32"

STROKE ... ............................. 16"

TABLE TRAVEL ........................... 23-1/4"

FLOOR TO TABLE TOP ..................... 24.75"

CYLINDER BORE SIZE ..................... 9"

ROD .................................... 4"

PRESSING SPEED ......................... 19 INCH/MIN

RETURN SPEED ........................... 24 INCH/MIN

MOTOR SPECS: 10 HP, 230/460 VOLT, THREE PHASE

             (OTHER VOLTAGES AVAILABLE)

STANDARD FEATURES:

- VARIABLE RAM SPEED IS FINGER TIP CONTROLLED THE MORE THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED. THIS ALLOWS THE OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK

- PRESSURE REGULATOR TO CONTROL THE AMOUNT OF PRESSURE REQUIRED

- ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT PRESSING ACTION

- HYDRAULIC POWERED MOVABLE TABLE ALLOWS FOR EASY LOADING AND UNLOADING OF HEAVY WORKPIECES

- HYDRAULIC POWERED MOVEABLE WORKHEAD FOR OFF-CENTER WORK

- HYDRUALIC POWERED LIFT FOR VERTICAL DISPLACEMENT OF HEAD AND CYLINDER.

- OPEN SIDES TO FACILITATE WORK ON LONG PIECES

- PANEL MOUNTED GLYCERINE FILLED GAUGE

- SAFETY VALVE PROTECTS AGAINST OVERLOADS

- FLAT RAM NOSE CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT THE PRESS TO A SPECIFIC JOB

- LOW SPEED. QUIET OPERATION

- HIGH-QUALITY LOW-SPEED BALDOR MOTOR

- 15 GALLON OIL RESERVOIR

AVAILABLE OPTIONS:

- SET OF V-BLOCKS ............................ $1,000

- STOP / START & EMERGENCY STOP .............. $1,000

- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000

- SIDE SAFETY GUARD ..............(PER SIDE).. $  750

- FOOT PEDAL ................................. $4,500

- PRESS PLATE ................................ $2,000

- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND

LEXAN GUARDING ............................... $9,500

- HANDHELD REMOTE CONTROL .................... $9,500

- 60" BETWEEN THE POSTS ...................... $6,500

FOR MORE INFORMATION: Call Rick at 973-497-7560
