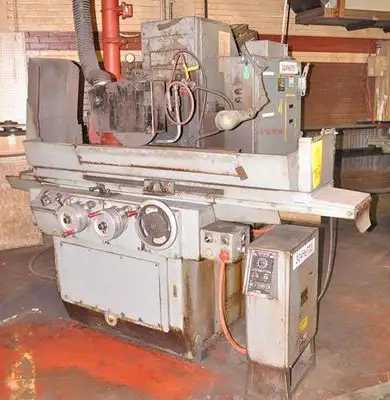

USED 1983 Brown & Sharpe 1030 MICROMASTER

10" Width 30" Length Brown & Sharpe 1030 MICROMASTER SURFACE GRINDER, HYD. X-Y AXIS, FINE FEEDS, EMC, COOLANT

10" X 30" BROWN & SHARPE "SUPER-PRECISION"
(MADE IN USA) HYDRAULIC SURFACE GRINDER

MODEL: #1030 MICROMASTER
S/N: 523-1030-2325
NEW: 1983

WORKTABLE SIZE.............................. 10" X 30"
GRINDS WORK TO HEIGHT OF............ 18" (W/14" WHEEL)
WHEEL SIZES........................ 14" X 1- 1/2" X 5"
DIRECT DRIVE SPINDLE MOTOR............ 5 HP - 1800 RPM
LONGITUDINAL TABLE SPEED ................ 10 - 125 FPM
AUTO CROSSFEED PER TABLE REVERSAL ...... 0.010 - .500"
POWER WHEEL TRUING ........................... 10" IPM
CROSS HANDWHEEL, GRAD. ....................... 0.0002"
RAPID TRAVERSE POSITIONING.................... 150 IPM
RAPID VERTICAL POWER POSITIONING............... 40 IPM
VERTICAL HANDWHEEL, GRAD. .................... 0.0002"
FINE FEED KNOB (GRAD.) FOR VERTICAL FEED ..... 0.0001"
APPROX. MACHINE WEIGHT ..................... 6,000 LBS

  EQUIPPED WITH:
HYDRAULIC LONGITUDINAL & CROSS FEEDS
POWER RAPID WHEELHEAD POSITIONING (UP & DOWN)
14" GRINDING WHEEL
10" x 30 FINE-DIVISION ELECTRO-MAGNETIC CHUCK
"ELECRO-MATIC" 300 WATT NEUTROFIER CONTROL
  W/VARIABLE HOLD CONTROL
FINE FEED KNOBS FOR BOTH CROSS & VERTICAL HANDWHEELS
  WITH .0001" GRAD.
HANDWHEELS ARE DUAL INCH & METRIC
OVER-THE-WHEEL DRESSER
COOLANT SYSTEM
AUTO LUBRICATION
5 H.P. 3/60/230-460 VOLT BROWN & SHARPE SUPER-PRECISION
  DIRECT DRIVE SPINDLE
OIL COOLER UNIT W/FAN

 * EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) *
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE  **

FOR MORE INFORMATION: Call Andy at 973-497-7600
