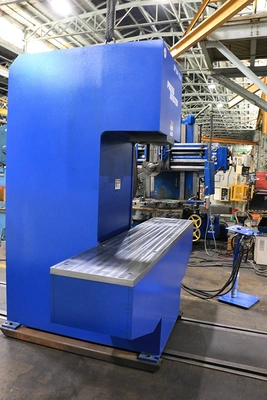

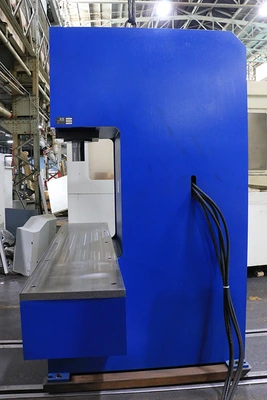

NEW Pressmaster SP-100

100 Ton 12" Stroke Pressmaster SP-100 STRAIGHTEN PRESS

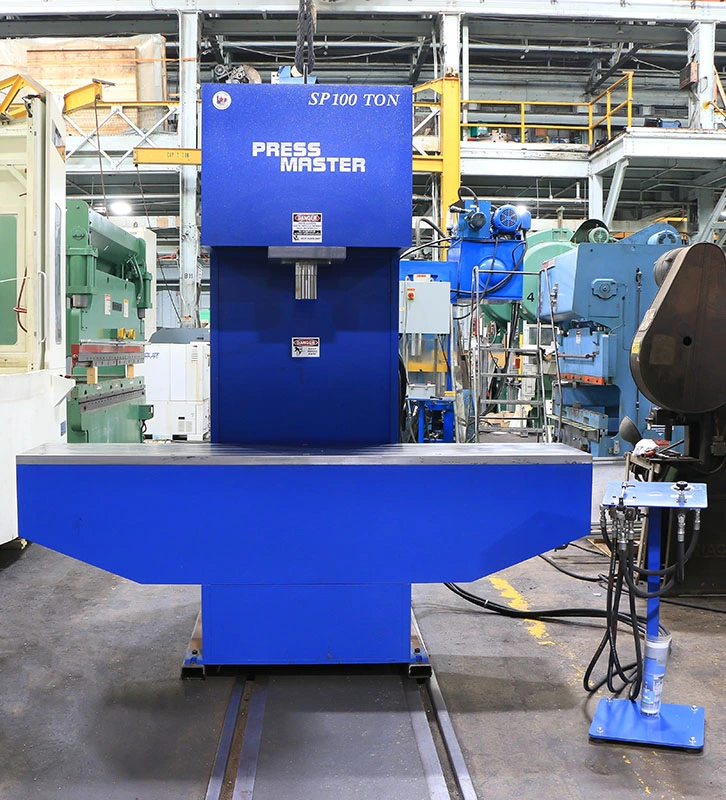

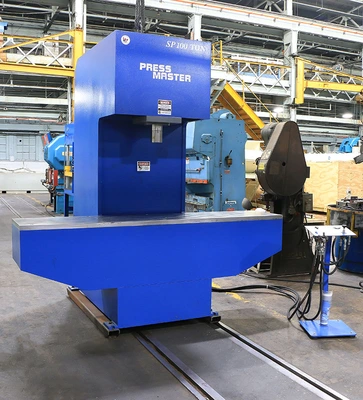

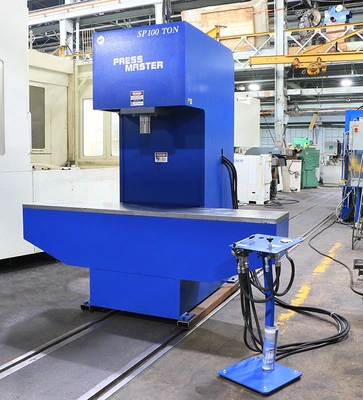

100 TON PRESSMASTER HYD. STRAIGHTENING PRESS

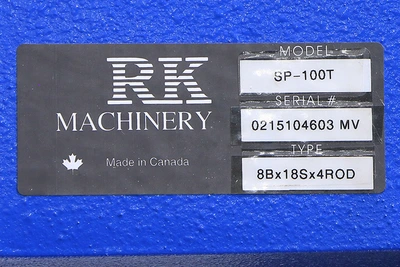

MODEL SP-100T

RATED CAPACITY .............................. 100 TONS

PRESSING SPEED .............................. 20 IPM

ADVANCE SPEED ............................... 20 IPM

RETURN SPEED ................................ 26 IPM

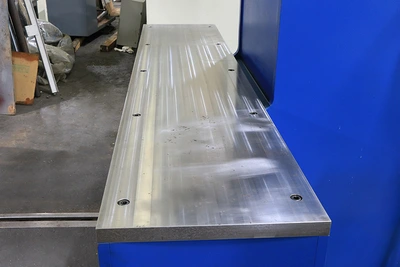

TABLE WIDTH ................................. 96"

TABLE DEPTH ................................. 20"

FULL STROKE ................................. 18"

THROAT DEPTH ................................ 12"

DAYLIGHT .................................... 27"

FLOOR TO TABLE .............................. 35"

MOTOR ....................................... 10 HP

STANDARD FEATURES:

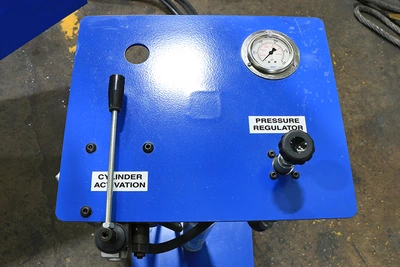

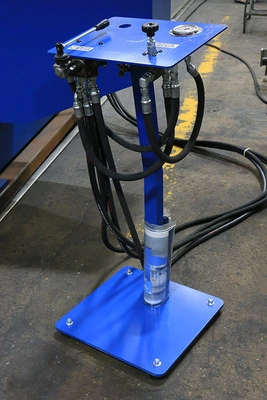

- CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND

LEVER IS ENGAGED, THE MORE THE RAM MOVEMENT IS ACCELERATED, THIS

ALLOWS THE OPERATOR TO MATCH THE SPEED TO THE TASK.

- ELECTRIC-HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT

PRESSING ACTION

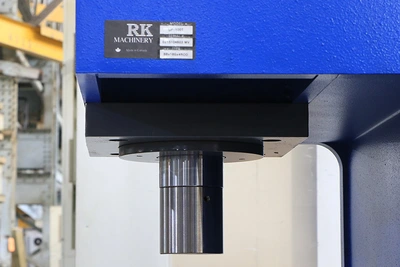

- FLAT RAM NOSE CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT

THE PRESS TO A SPECIFC JOB.

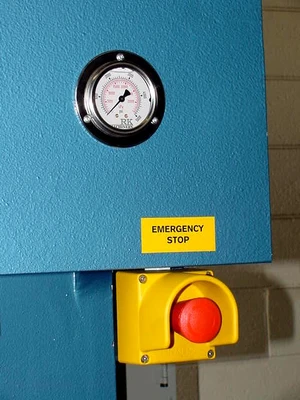

- PRESSURE GAUGE

- PRESSURE REGULATOR, LIMITS RAM PRESSURE

- HIGH CAPACITY 40 GALLON HYDRAULIC OIL RESERVOIR.

- LOW SPEED BALDOR ELECTRIC MOTOR 230/460 3 PHASE

- LOW SPEED PUMP FOR QUIET DEPENDABLE OPERATION

- LOW PRESSURE HYDRAULIC SYSTEM, MAINTAINS LOWER OIL TEMPERATURES

RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION.

- ONE YEAR WARRANTY

- MFG. IN NORTH AMERICA - ALL HYDRAULIC AND MECHANICAL PARTS ARE

STANDARD IN THE INDUSTRY AND AVAILABLE THROUGHOUT NORTH AMERICA.

OPTIONS:

- STROKE CONTROL W/FOOT PEDAL ............. $

- FOOT PEDAL .............................. $

- SINGLE PHASE MOTOR ...................... $

- SPEED CONTROL ........................... $

- HAND HELD REMOTE ........................ $

DIMENSIONS: 60" X 96" X 106"

WEIGHT: 12,800 LBS.

FOR MORE INFORMATION: Call Rick at 973-497-7560
