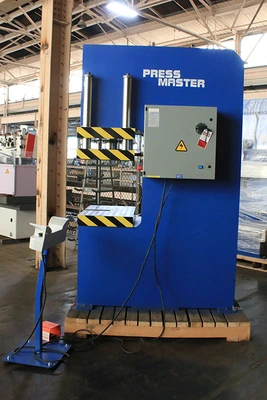

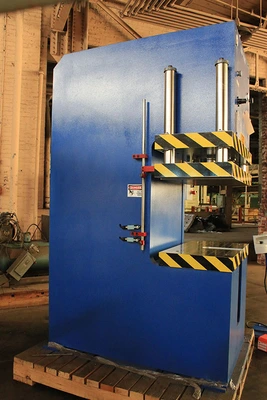

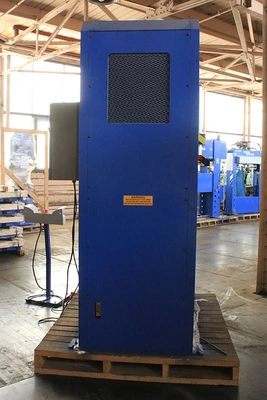

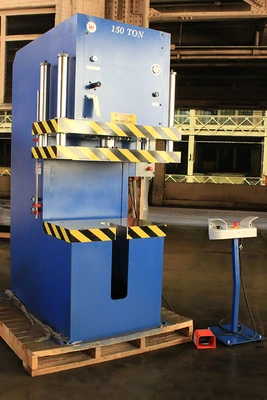

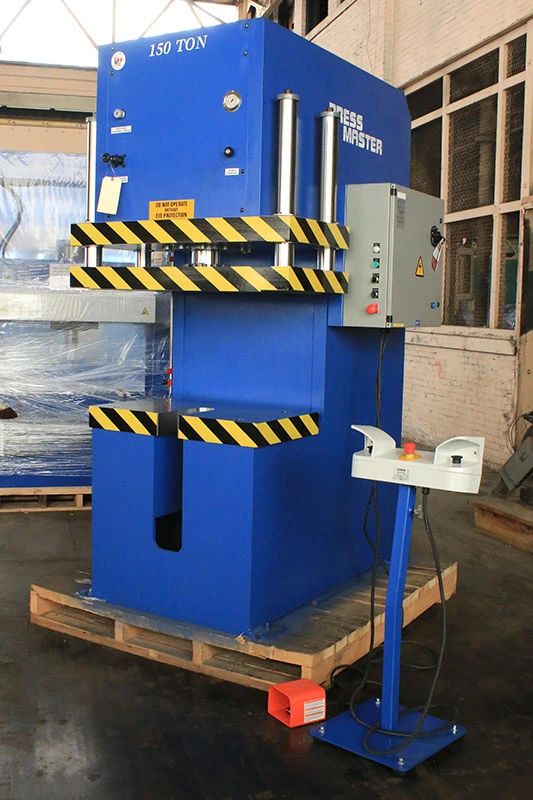

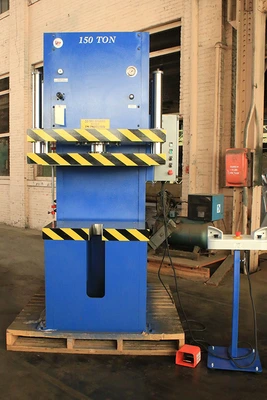

150 Ton 15" Stroke Pressmaster CFP-150 HYDRAULIC PRESS, New Design
150 TON PRESSMASTER HYDRAULIC
C-FRAME PRESS
MODEL CFP-150T BRAND NEW
RATED CAPACITY .............................. 150 TONS
APPROACH SPEED .............................. 80 IPM
PRESSING SPEED .............................. 9 IPM
RETURN SPEED ................................ 101 IPM

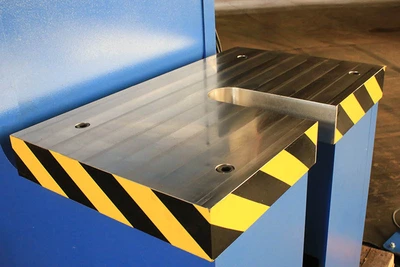

TABLE WIDTH ................................. 34"
TABLE DEPTH ................................. 20"
U-SLOT WIDTH ................................ 4"
DAYLIGHT .................................... 20-1/2"
FULL STROKE ................................. 15"
THROAT ...................................... 13"
TABLE HEIGHT ................................ 34-1/2"
TOTAL DEPTH ................................. 58"
TOTAL HEIGHT ................................ 102"
TOTAL WIDTH ................................. 39"
UPPER PLATEN WIDTH .......................... 34"
UPPER PLATEN DEPTH .......................... 20"
MOTOR ....................................... 15 HP
AVAILABLE VOLTAGES ............ 230/460/575 / 3 PH / 60 Hz
STANDARD FEATURES:

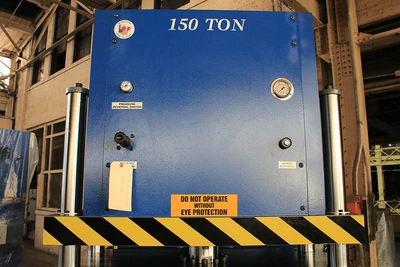

- PRESSURE GAUGE
- PRESSURE REGULATOR
- ADJUSTABLE SPEED CONTROL
- ADJUSTABLE STROKE CONTROL
- PRESSURE REVERSAL SWITCH

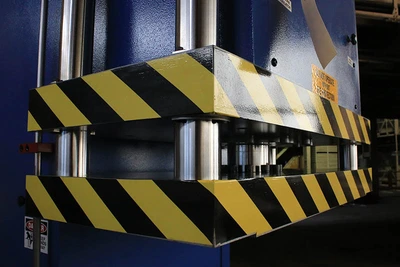

- RAM TRAVEL IS GUIDED BY FOUR PRECISION-GROUND GUIDE RODS
- JOG MODE USED FOR SIMPLIFYING SETUPS

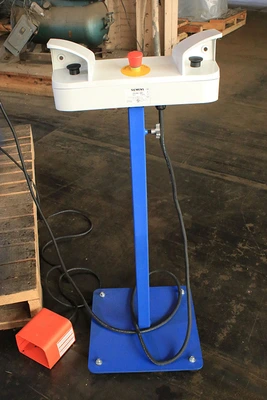

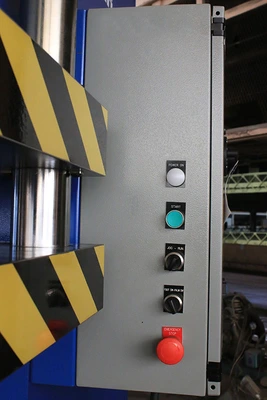

- DUAL CONTROL - YOUR CHOICE OF USING MOVABLE PEDESTAL C/W DUAL ELECTRIC PALM BUTTONS WITH EXTRA EMERGENCY STOP OR FOOT PEDAL
- PROGRAMMABLE CONTROL SYSTEM (PLC)
- LOW SPEED BALDOR ELECTRIC MOTOR
- AIR COOLED INDUSTRIAL OIL COOLER
- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY AND AVAILABLE THOUGHOUT NORTH AMERICA
- ONE YEAR WARRANTY
- MFG. IN NORTH AMERICA
SHIPPING DIMENSIONS ........... 64" L X 58" W X 110" H
APPROX. WEIGHT ................ 13,400
AVAILABLE OPTIONS:
- FULL LIGHT CURTAIN GUARDING ON 3 SIDES ..... $
- T-SLOTTING ......... (PER LINEAR INCH) ..... $
FOR MORE INFORMATION: Call Rick at 973-497-7560
