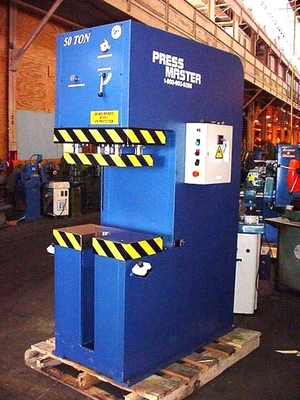

50 Ton 15" Stroke Pressmaster CFP-50 HYDRAULIC PRESS
50 TON PRESSMASTER C-FRAME HYDRAULIC PRESS
MODEL CFP-50 BRAND NEW - STILL IN CRATE
TONS OF FORCE ......(MAX).................... 50 TONS
APPROACH SPEED .............................. 140 IPM
PRESS SPEED ................................. 17 IPM
RETURN SPEED ................................ 210 IPM
TABLE ..............(LR X FB)................ 34" X 20"
DAYLIGHT .................................... 20.5"
MAX. STROKE ADJUSTABLE ...................... 15"
THROAT ...................................... 13"
U-SLOT OPENING .............................. 4"
FLOOR TO TABLE .............................. 34.5"
FRONT TO BACK................................ 58"
HEIGHT (OVERALL)............................. 102"
CLEARANCE ................................... 6"
WIDTH ....................................... 31"
UPPER PLATEN .......(LR X FB)................ 34" X 20"
MOTOR HP @ 1750 RPM ......................... 10 HP
VOLTAGE AVAILABLE: 230/ 460/ 575/ 3 PH. 60 HZ
WEIGHT .......................... 6,600#
SHIPPING DIMENSIONS ............. 66"L x 52"W x 96"H
STANDARD FEATURES:
- PRESSURE GAUGE
- PRESSURE REGULATOR
- ADJUSTABLE SPEED CONTROL
- ADJUSTABLE STROKE CONTROL
- PRESSURE REVERSAL SWITCH
- RAM TRAVEL IS GUIDED BY 4 PRECISION-GROUND CHROMED RODS
- JOG MODE USED FOR SIMPLIFYING SETUPS
- DUAL CONTROL-YOUR CHOICE OF USING:
(1) MOVEABLE PEDESTAL C/W DUAL ELECTRIC PALM BUTTONS & EXTRA EMERGENCY STOP OR (2) FOOT PEDAL
- P.L.C. PROGRAMMABLE CONTROL SYSTEM
- QUALITY BALDOR MOTOR, LOW SPEED
- AIR-COOLED INDUSTRIAL OIL COOLER
- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY, AND AVAILABLE THROUGHOUT NORTH AMERICA
- FULL ONE YEAR WARRANTY ON ALL PARTS
AVAILABLE OPTIONS:
- FULL LIGHT CURTAIN GUARDING ON 3 SIDES ..... $
- T-SLOTTING .......... (PER LINEAR INCH) .... $
FOR MORE INFORMATION: Call Rick at 973-497-7560
