100 Ton 15" Stroke Pressmaster CFP-100 HYDRAULIC PRESS, New Design

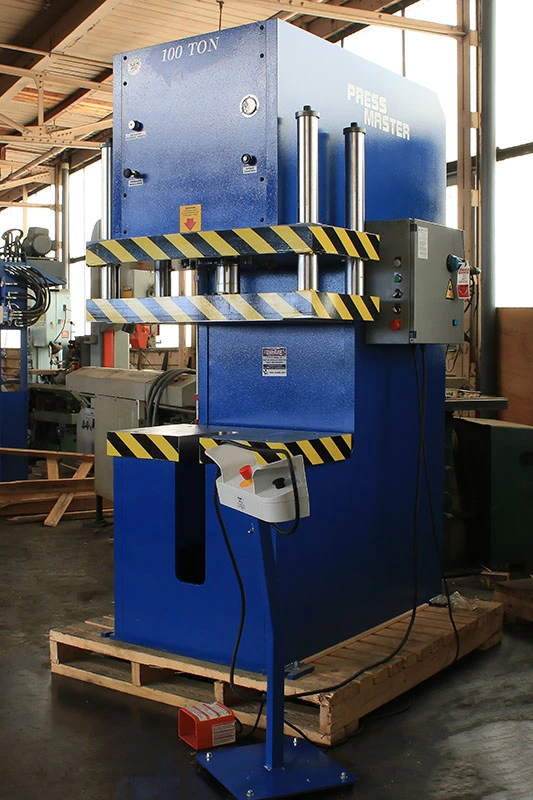

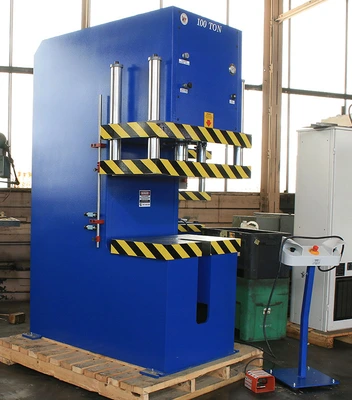

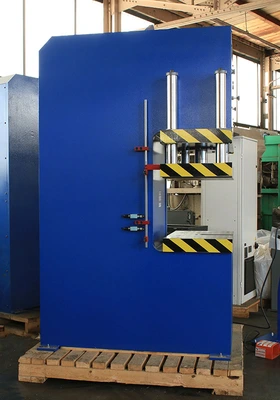

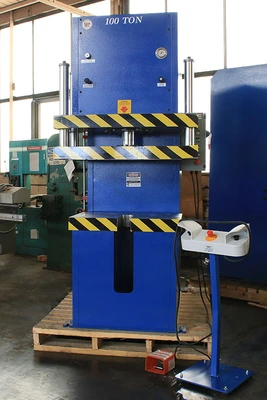

100 TON PRESSMASTER HYDRAULIC C-FRAME PRESS
MODEL CFP-100 BRAND NEW
RATED CAPACITY .............................. 100 TONS
SPEED (APPROACH) ............................ 80 IPM
(PRESSING) ............................ 10
(RETURN) .............................. 106

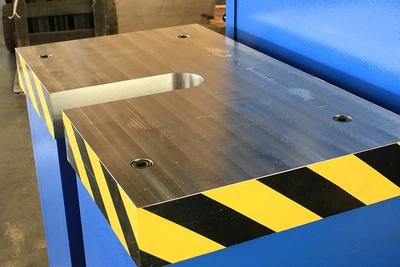

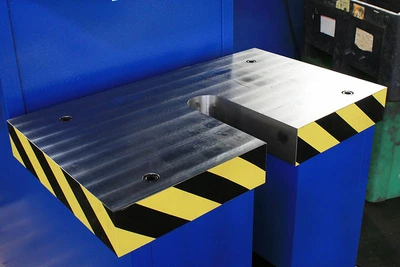

TABLE WIDTH ................................. 34"
TABLE DEPTH ................................. 20"
U-SLOT WIDTH ................................ 4"
DAYLIGHT .................................... 20.5"
FULL STROKE ................................. 15"
THROAT ...................................... 13"
TABLE HEIGHT ................................ 34.5"
TOTAL DEPTH ................................. 58"
TOTAL HEIGHT ................................ 102"
TOTAL WIDTH ................................. 38"
CLEARANCE ................................... 6"

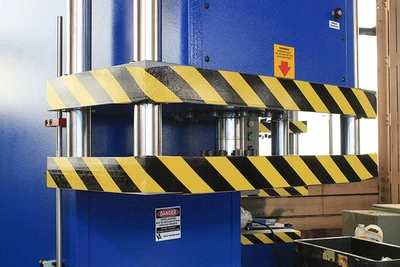

PLATEN WIDTH ................................ 34"
PLATEN DEPTH ................................ 20"
MOTOR ....................................... 10 HP
AVAILABLE VOLTAGES ........ 230/460/575 / 3 PH / 60 Hz.
DIMENSIONS ................. 64"L X 59"W X 110"H
WEIGHT ..................... 11,600#
STANDARD FEATURES:

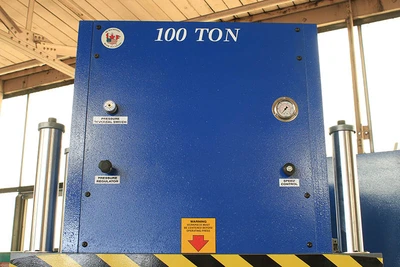

- PRESSURE GAUGE
- PRESSURE REGULATOR
- ADJUSTABLE SPEED CONTROL
- ADJUSTABLE STROKE CONTROL
- PRESSURE REVERSAL SWITCH
- RAM TRAVEL IS GUIDED BY PRECISION-GROUND GUIDE RODS
- JOG MODE USED FOR SIMPLIFYING SETUPS

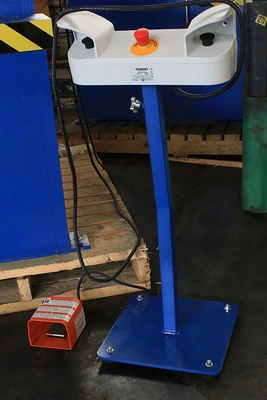

- DUAL CONTROL - YOUR CHOICE OF USING (1) MOVABLE PEDESTAL C/W DUAL ELECTRIC PALM BUTTONS AND EXTRA EMERGENCY STOP (2) FOOT PEDAL.

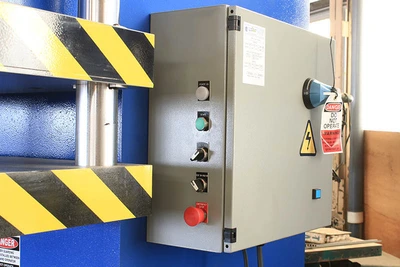

- PLC PROGRAMMABLE CONTROL SYSTEM
- QUALITY BALDOR LOW SPEED MOTOR
- AIR COOLED INDUSTRIAL OIL COOLER
- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY, AND AVAILABLE THROUGHOUT NORTH AMERICA.
- ONE YEAR WARRANTY
- MANUFACTURED IN NORTH AMERICA
AVAILABLE OPTIONS:
- FULL LIGHT CURTAIN GUARDING ON 3 SIDES ......... $
- T-SLOTTING .......... (PER LINEAR INCH) ........ $
FOR MORE INFORMATION: Call Rick at 973-497-7560
