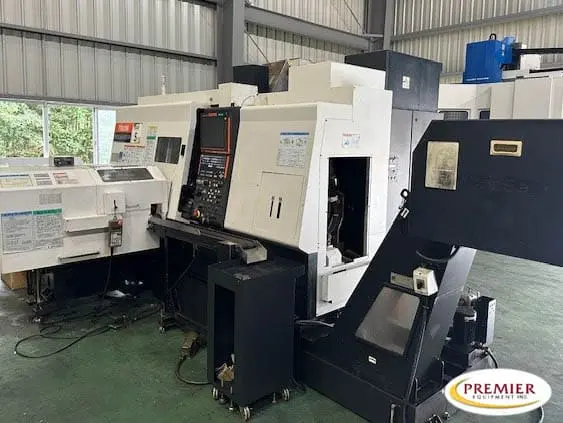

Mazak Integrex 100-IVS CNC Turning / Milling Center with Sub-Spindle & Y-Axis / Integrex 1004S
Maximum Swing……………………… 21.46″
NOTE: Tool eye body may limit max. swing.
Maximum Swing using Y-axis………….. 16.22″-21.46″
Mazimum Swing over Cross Slide………. 13.86″
Maximum Cutting Diameter: Chucking…… 21.46″
Maximum Cutting Length……………… 29.65″
Maximum Distance Between Chuck Faces…. 31.18″
MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose………………………. A2-5
Spindle Bore………………………. 2.4″
Maximum Bar Work…. ……………… 1.6″
Spindle Speed……………………… 6,000 RPM
Spindle Index (Programmable)………… 0.0001 Deg.
Spindle Horsepower (Cont./30 Mins.)….. 10/15 HP (AC)
Mazatrol Matrix Control
CutFeeder
Chip Conveyor
