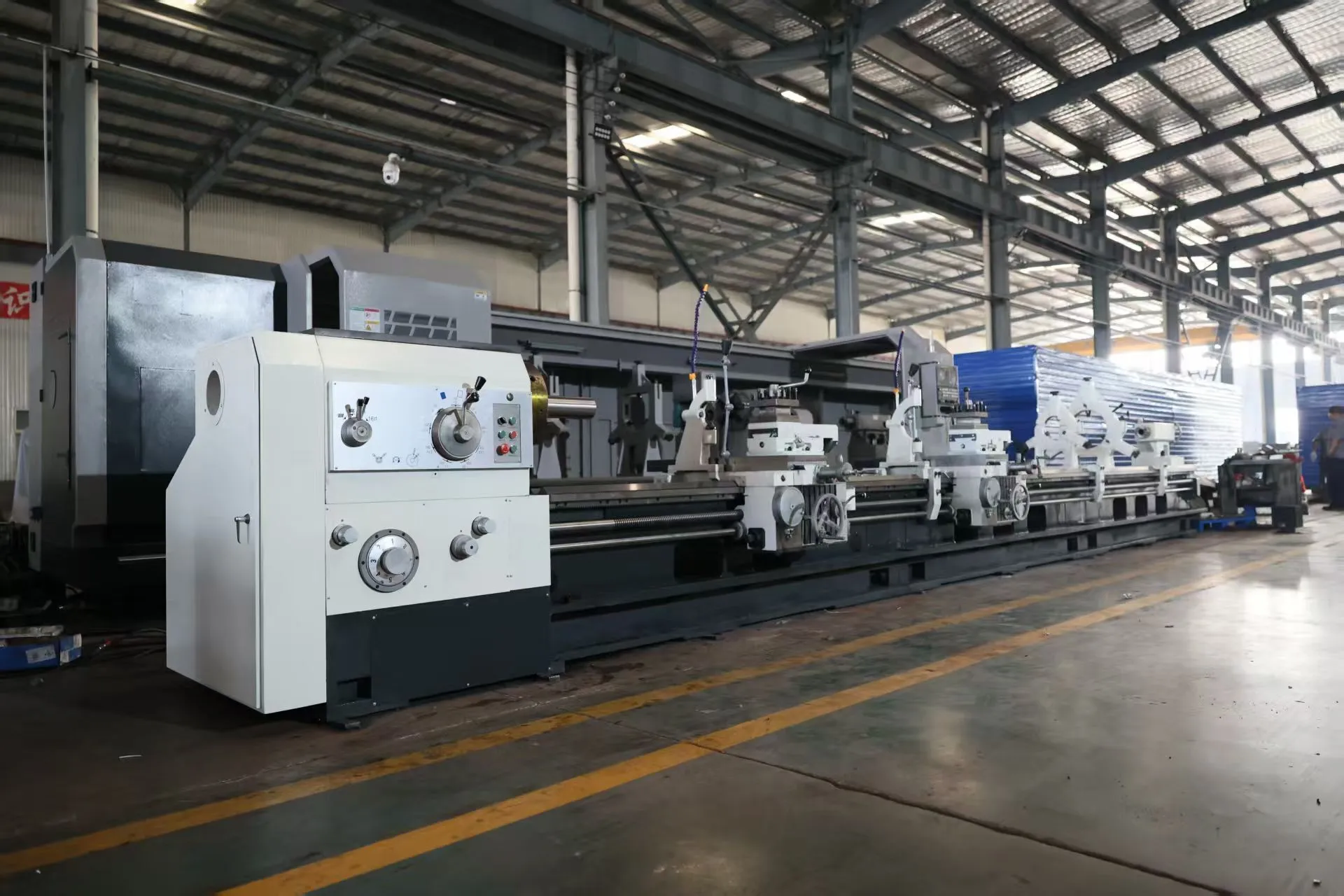

NEW Macturn SP61180
Overview
Great Lathe at a great price.
The entire bed is cast from high-quality high-strength cast iron, offering excellent
rigidity and precision.
The guide rail surfaces undergo super-frequency quenching treatment, resulting in
high hardness and long service life.
Gears in the headstock are carburized and precision-ground, ensuring high accuracy
and low noise operation.
Specs
Max.swing over bed:800mm
Max.swing over cross slide:480mm
Max.length of work-piece:8000mm
Max. processing length at once:7750mm
Guideway width:600mm
Max. load capacity:4T
Spindle center height:400mm
Spindle bore:130mm
Spindle taper hole:Metric 140
Spindle forward speed steps:21 kinds
Spindle reversal speed steps:12 kinds
Spindle forward speed range:3.15～315r/min
Spindle speed reversal range:3.5～291 r/min
Power of spindle motor:15KW
Z/X axis feed grade:56kinds
Z axis feed rate per spindle rotation:0.1～12mm/r
X axis feed rate per spindle rotation:0.05～6 mm/r
Feed rate of the tool holder per rotation of the
spindle:0.025～3mm/r
Carriage raid traverse speed:3740 mm/min
Cross slid raid traverse speed:1870 mm/min
Metric thread grade/range:44kinds/1-120mm
Inch thread grade/range;31kinds/28～1/4T.P.I
Module thread grade/range:45kinds/0.5-60mm
DP thread grade/range:38kinds/1/2～56DP T.P.I
Traverse of cross slide:520mm
Max. Traverse of turret:200mm
Tailstock quill Diameter:120mm
Tailstock quill Travel:290mm
Tailstock Taper:MT6
No.of tool stations:Four-position tool post
Tool shank size:32×32mm
Chuck:K11-400 manual 3-jaw chuck
Overall dimension:10200×1750×6000mm
Equipped With
Price does not include.
2nd Saddle
4 Jaw Chuck
Splash or chip guards
