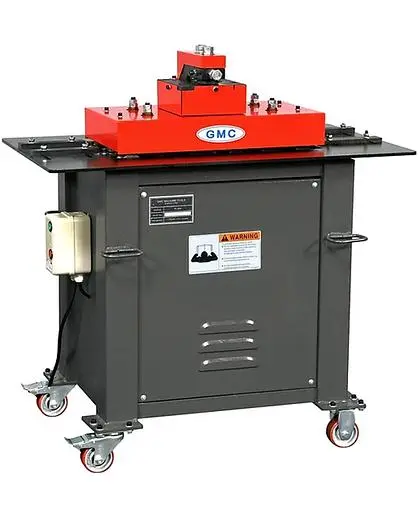

Product: Lockformers
Capacity: 20 GA - 16 GA
Double Seam Lock: 20 GA - 16 GA
Drive Cleat Lock: 24 GA - 22 GA
Power Flange 1/4": 20 GA - 16 GA
Depth of Pocket: 1/2"
Feeding Speed: 23 FPM
Main Motor: 5 1/2 HP, 3 Phase, 10 AMP, 220 VAC
Dimensions (approx): 43" x 27" x 48"H
Weight (approx): 628 lbs.
Equipped with:
Standard Pittsburgh Attachment # PA-16E
Power Flange Attachment # FA-16E
Drive Cleat Roll # DCR-16E,
Double Seam Roll # DSR-16E
Optional Equipment:
RAR-16E Right Angle Roll Set for PL-16E ..... $795.00
Features:
16 gauge capacity: The PL-16E can handle sheet metal up to 16 gauge, making it suitable for a wide range of applications.
Creates tight, interlocking joints between two pieces of sheet metal
Made with high-quality materials and construction for durability and longevity
Maintenance-friendly design: The machine is designed for easy maintenance, with quick-access panels that allow for easy cleaning and lubrication.
Backed by a 1-year parts warranty for peace of mind
Compact and portable design for easy storage and transport
Compatible with a variety of Lockformer accessories and attachments for added versatility and functionality
ISO 9001 certified
3 HP Heavy Duty AC main motor, 220V, 3 phase
Standard Pittsburgh Attachment
Standard Round Power Flange Attachment, Double Seam Roll and Drive Cleat Roll (power flange attachment can only do radius parts)
ACME side can be operated at same time
Heavy duty caster wheels for easy moving
