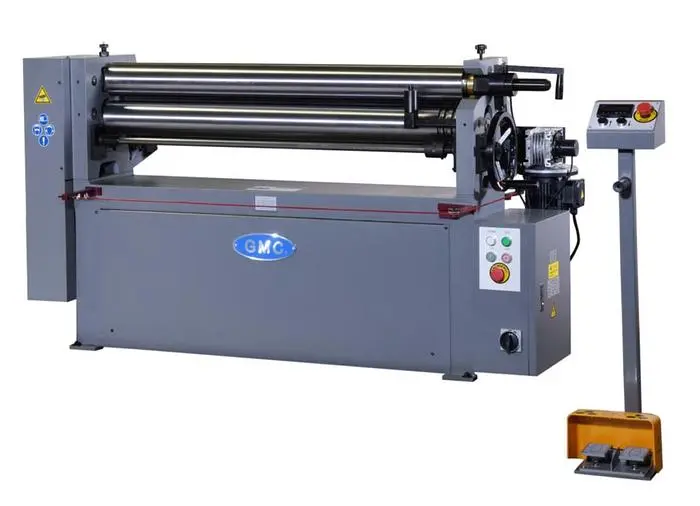

NEW GMC MACHINE TOOLS PBR-0810E

Product: Plate Roll, Electric
Max Bending Length: 8'
Capacity: 10 Ga (Mild Steel), 14 Ga (Stainless Steel), 1/4" (Soft Aluminum)
Roll Diameter: 6"
Min Bending Diameter: 8"
Pre-bend: 0.12"
Rolls Speed (ft/min): 17
Rolls Opening: 0.5"
Main Motor: 4HP
Weight: 4,550 lbs
Overall Dimensions: 132" x 35" x 56"H

Standard Features:
SO 9001 certified
Taiwan machines
All (3) rolls are hardened rolls, up to 50-52 HRC
3-rollers are driven to perform high accuracy
Adjustable cone attachment included
3/8”, ½” and 5/8” grooves on rollers
One wheel one-side operated for bending roll
One wheel one-site operated for pinch roll (E model is powered)
Heavy duty casting frame
Heavy duty all steel welded construction
1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
Quiet running operation
Easy swing-out top roller
Safety line all around the machine for emergency stop
All rolls run forward and reverse
Safety type forward/reverse foot pedal
Power source 220V, (option: 440V, 3 phase)
One year industrial warranty for parts

Standard Equipment:
Adjustable cone attachment
3/8”, ½” and 5/8” grooves on rollers
All (3) hardened rolls
Removable safety foot pedal
Operation & parts manual
Orange color front cover is optional.
E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs
