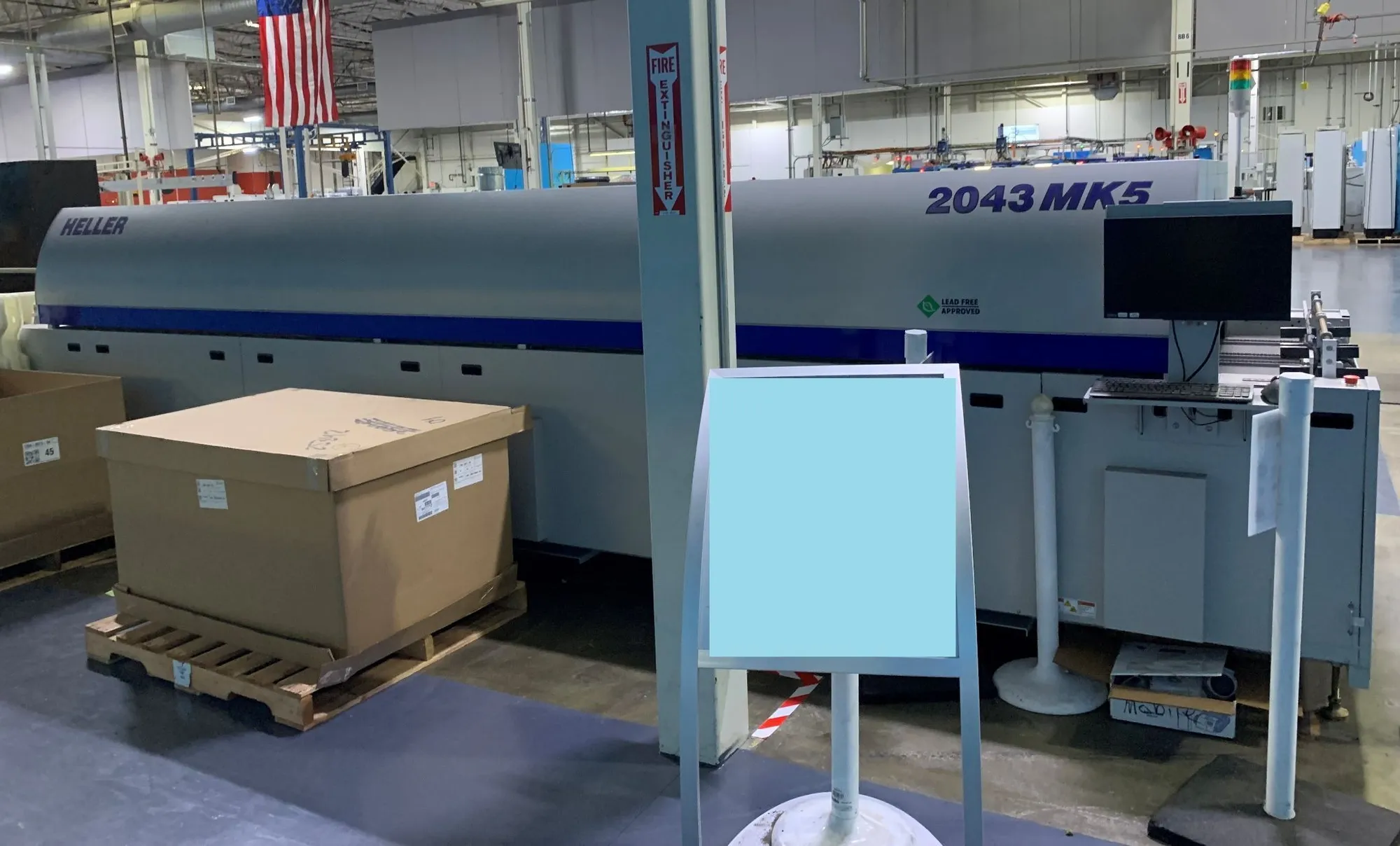

USED 2023 HELLER INDUSTRIES 2043 MARK 5

HELLER INDUSTRIES 2043 MK5 REFLOW OVEN, NEW: 2023

OVEN LENGTH: 267.72"
PROCESS GAS OPTIONS: AIR, NITROGEN, FORMIC ACID, FORMING GAS
HEATED ZONES: CONVECTION: 10 TOP/10 BOTTOM IR: 3 TOP
HEATED LENGTH (CONVECTION/TOTAL): 128.7"/169"
COOL ZONES:3 TOP (BOTTOM OPTION)
MAX. WORKING TEMPERATURE (CONVECTION/IR): STANDARD: 662°F - 752°F. OPTION: 752°F - 896°F
MIN. VACUUM: STANDARD: 10 TORR, OPTION: <10 TORR
MAX. BOARD SIZE: 19.6"(L) x 17.7"(W) x 1"(H)
CLEANROOM OPTION: DOWN TO CLASS 1000

HOURS: 1,283
