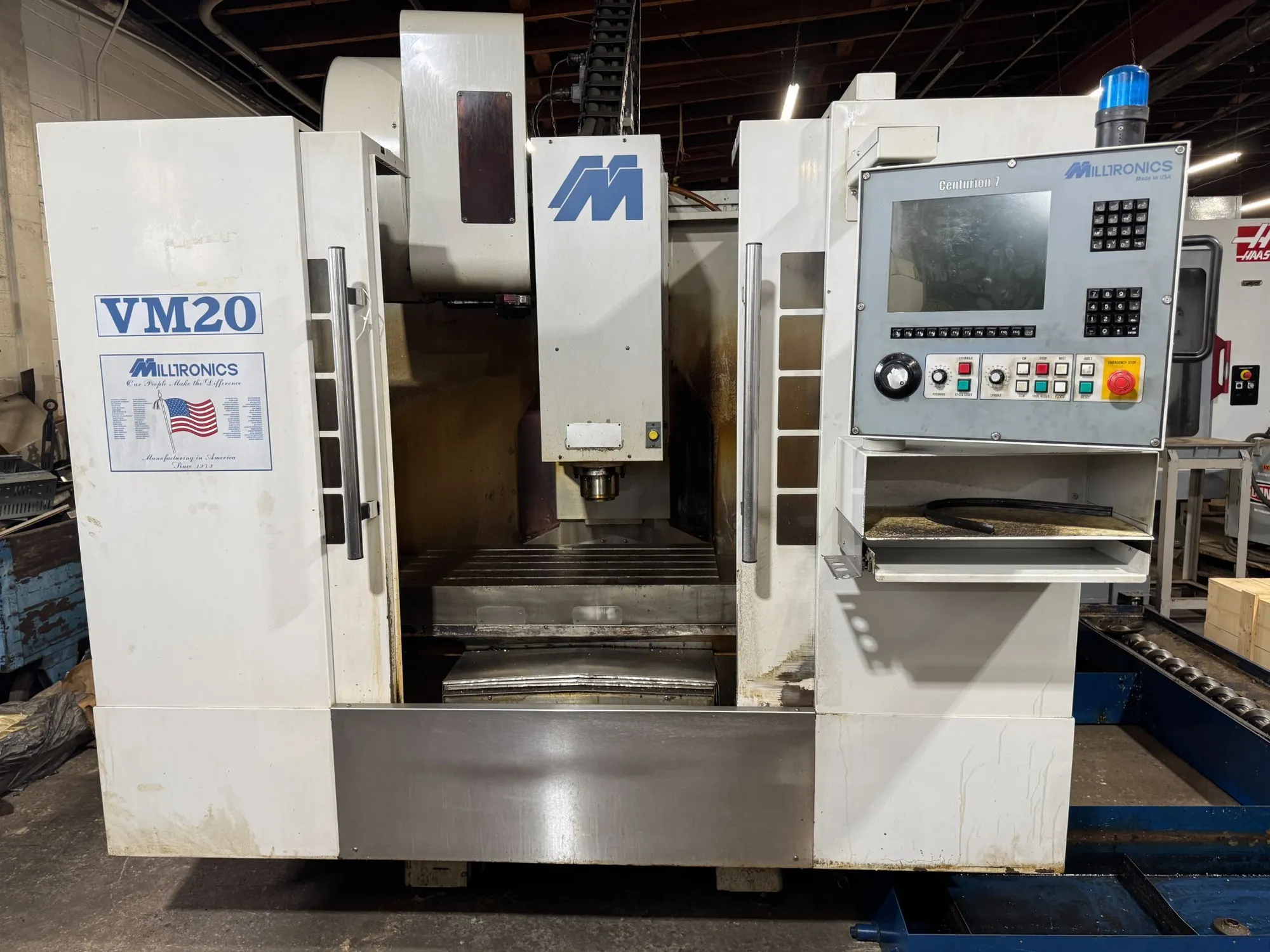

MILLTRONICS VM20 CNC Milling Machine, 2005 model, used condition.
| Control | CNC (Centurion 7) | CNC (Centurion 7) |
| Dimensions | 120" x 92" x 108"H | 120" x 92" x 108"H |
| Weight | 10000 lbs | 10000 lbs |
2005 Milltronics VM20 vertical Machining Center
Coolant Threw Spindle
Stock# R847
Model# VM20
Serial# 8971
Year 2005
Control Centurion 7
Table Dimensions 34.5" x 20"
X Axis Travel 40 inches
Y Axis Travel 20 inches
Z Axis Travel 26 inches
Spindle to Table Distance 4" - 30"
Spindle Center to Column Distance 21 inches
Rapid Traverse Rate (X,Y,Z) 1,000 IPM
Maximum Spindle Speed 8,000 RPM
Power 24 HP230/3/60
Spindle Taper CaT 40
ATC 24 Tool
Chip Pan with coolant pump & Spindle Pump
Chip Auger
Books
Shipping Dimensions 120" x 92" x 108"H Approx.
Shipping Weight 10000 Lbs
