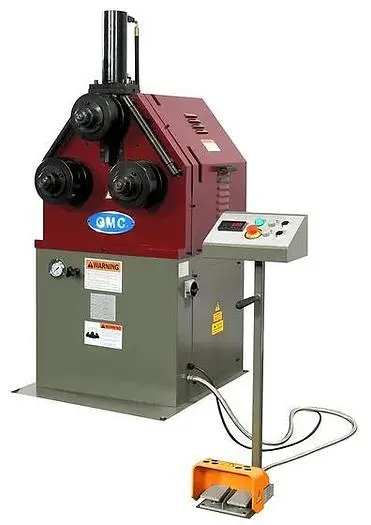

NEW GMC MACHINE TOOLS PRB-55H-3

Diameter of Roll: 7.5"
Diameter of Roller Shaft: 2"
Roll Adjustment: Hydraulic
Roller Speed: 16 RPM
Motor: 3 HP, 220 VAC, 3 Phase (Optional 440VAC)

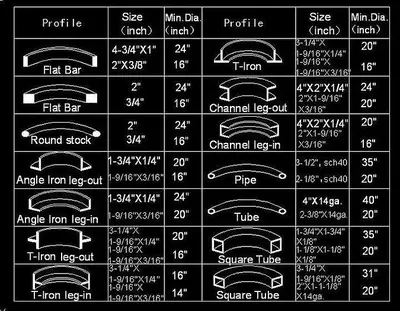

Pipe Capacity: 2" schedule 40 / Min. Dia. 24"
Tube Capacity: 2-1/2”x14 Ga. (wall) / Min. Dia. 24”
Solid Round Tube: 2”x2”x3/16” (wall) / Min. Dia. 24”
Solid Square Tube: 1-3/8”x1-3/8” / Min. Dia. 24”
Solid Flat Bar: 4”x9/16” (wall) / Min. Dia. 36” or 2-3/8”x3/8” (wall) / Min. Dia. 20”
Angle Flat Bar: 2-3/4”x2”x3/8” (wall) / Min. Dia. 47”
Angle Iron Leg-In: 2”x3/16”(wall) / Min. Dia. 28”
Angle Iron Leg-Out: 2”x3/16”(wall) / Min. Dia. 20”
T-Iron Leg-In: 2”x3/16” (wall) / Min. Dia. 28”
T-Iron Leg-Out: 2”x3/16” (wall) / Min. Dia. 20”
Channel Leg-In: 3-1/8”x1-3/4”x3/16” / Min. Dia. 26”
Channel Leg-Out: 3-1/8”x1-3/4”x3/16” / Min. Dia. 24”
Weight (approx): 1,120 lbs.
Dimensions (approx): 40 x 35 x 65"H

Standard Features:
ISO 9001 certified
2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube x 3/16" wall
Easy to operate in two positions; vertically and horizontally on its back
DRO -Digitally displays your exact position and ensures repeatability
Heavy Duty 3HP AC main motor

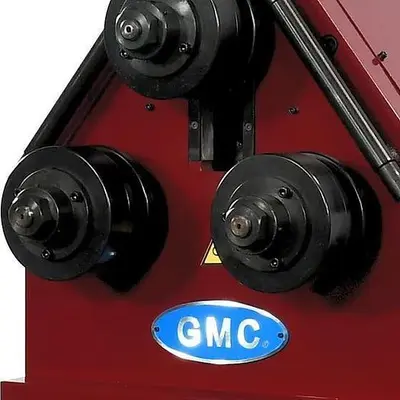

1 - Top forming roll (hydraulic driven)
2 - Driven bottom rolls
Robust, all steel and welded framework
Quiet, compact, hydraulic system that ensures precision and improves productivity
Adjustable pressure control valve
1-year parts only warranty and lifetime tech support (by video and phone)

Equipped with:
One set of universal combination rollers can do most works except pipes &  round tubes (will need special dies)
Digital Readout (ensures repeatability and digitally displays your exact position)
Left and right guide rollers (easily adjustable)
Foot pedal (controls forward and reverse)
Digital Readout (digital display)
4 - metal support legs for horizontal position

Optional Equipment:
Optional roller sets for pipe & round tubing, any size, one set (3 rolls) -call for pricing
Optional anti-twisting attachment -call for pricing
