Diameter of Roll: 7.5"
Diameter of Roller Shaft: 2"
Roller Speed: 16 RPM
Motor: 3 HP, 220 VAC, 3 Phase (Optional 440VAC)
Pipe Capacity: 2" schedule 40 / Min. Dia. 24"
Tube Capacity: 2-1/2”x14 Ga. (wall) / Min. Dia. 24”
Solid Round Tube: 2”x2”x3/16” (wall) / Min. Dia. 24”
Solid Square Tube: 1-3/8”x1-3/8” / Min. Dia. 24”
Solid Flat Bar: 4”x9/16” (wall) / Min. Dia. 36” or 2-3/8”x3/8” (wall) / Min. Dia. 20”
Angle Flat Bar: 2-3/4”x2”x3/8” (wall) / Min. Dia. 47”
Angle Iron Leg-In: 2”x3/16”(wall) / Min. Dia. 28”
Angle Iron Leg-Out: 2”x3/16”(wall) / Min. Dia. 20”
T-Iron Leg-In: 2”x3/16” (wall) / Min. Dia. 28”
T-Iron Leg-Out: 2”x3/16” (wall) / Min. Dia. 20”
Channel Leg-In: 3-1/8”x1-3/4”x3/16” / Min. Dia. 26”
Channel Leg-Out: 3-1/8”x1-3/4”x3/16” / Min. Dia. 24”
Weight (approx): 1,050 lbs.
Dimensions (approx): 40 x 35 x 65"H
Standard Features:
ISO 9001 certified
2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube
Heavy Duty 3HP AC main motor

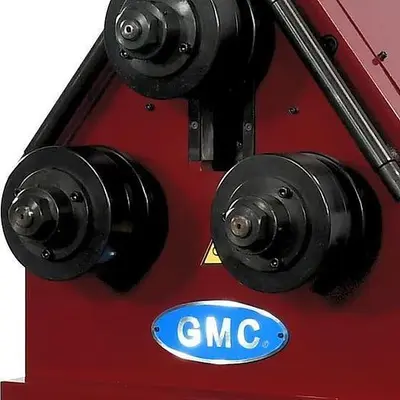

1 top forming roll (manually driven)
2 driven bottom rolls
Robust, all steel and welded framework
1-year parts only warranty and lifetime tech support by video and phone
Equipped with:
One set of universal combination rollers can do most works except pipes & round tubes (will need special dies)
Left and right guide rollers (easily adjustable)
Foot pedal (controls forward and reverse
Optional Equipment:
Optional roller sets for pipe & round tubing, any size, one set (3 rolls) -call for pricing
Optional anti-twisting attachment -call for pricing
