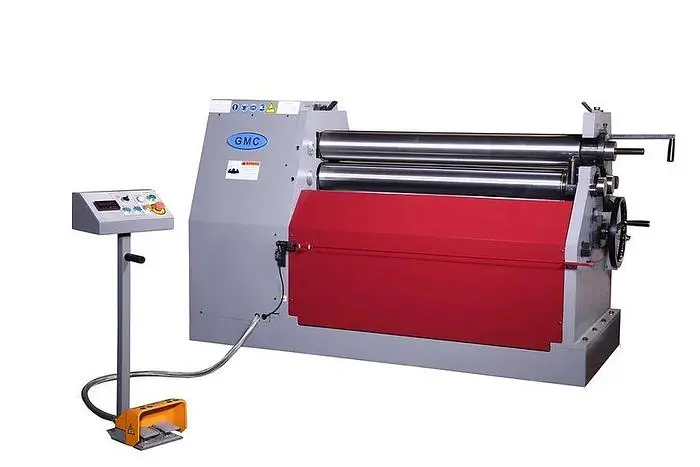

NEW GMC MACHINE TOOLS HBR-0808

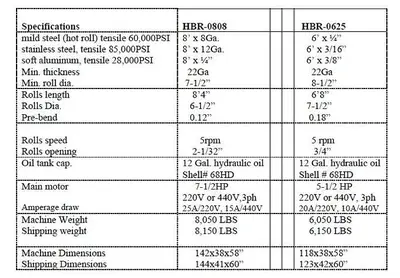

Specs
Product: Plate Roll, Hydraulic
Roll Length: 96""
Capacity: 8 ga. (Mild Steel), 12 ga." (Stainless Steel)
Minimum Roll Diameter: 7 1/2"
Number of Rolls: 3
Rolls Diameter: 6 1/2"
Pre-Bend: 0.12"
Rolls Speed: 3.5 RPM
Rolls Opening: 2 1/32"
Oil Tank Capacity: 12 Gallons
Main Motor: 7.5 HP
Machine Dimensions: 142" x 38" x 58"
Machine Weight: 8150 lbs.
Equipped With
Standard Included Equipment
LED indicator for bending roll position
Safety line all around the machine for emergency stop
Removable safety foot pedal and tool box
Cone attachment (to make cone parts)
(3) grooves 3/8”, ½”, 5/8” on roll for bending wire
ISO 9001 certified
All three rollers are driven
All three rollers are hardened, up to 50-52 HRC
Easy swing –out top roller
Standard cone attachment installed
1 each LED indicator for bending roll position
Safety line all around the machine for emergency stop
Heavy Duty all steel welded machine construction
German Hydraulic logic system centrally located and quiet
Bending roll is hydraulic powered up/down & tilting adjustment
Planetary reduction gear and pump
All three rolls are made of high grade alloy steel
All rolls run forward and reverse
Safety type foot pedal control
Overload protection and disconnect switch
One year industrial warranty for parts
