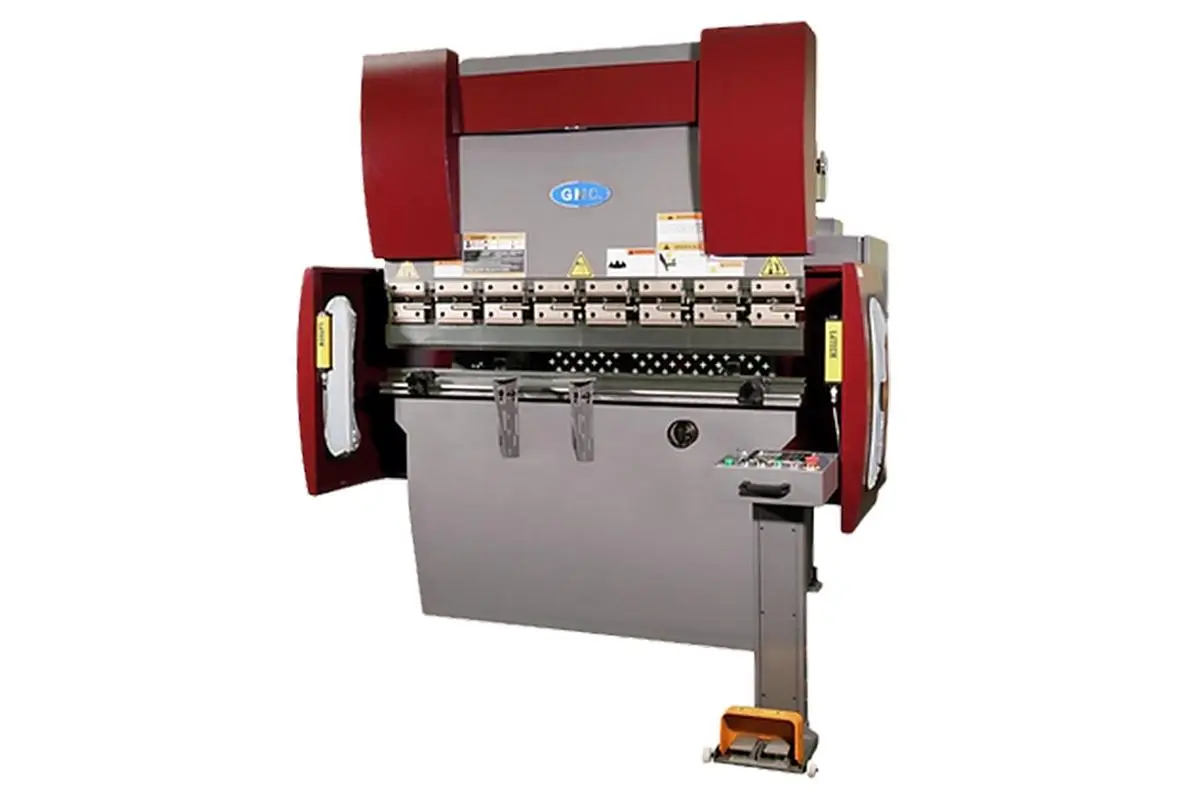

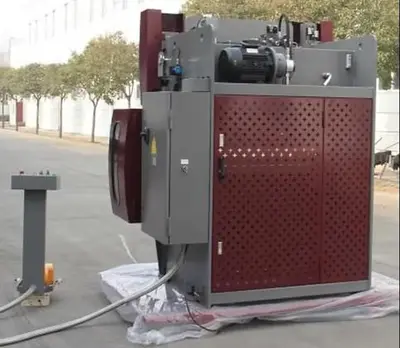

NEW GMC MACHINE TOOLS HPB-3305
Overview
Specs
Product: Press Brake
Capacity: 33 Tons
Max Bending Length: 63"
Distance Between Housings: 51"
Stroke: 4"
Table Width: 6"
Distance Between Table and Ram: 13.25"
Throat: 8"
Back Gauge Distance: 21"
Back Gauge Repeatability: .008"
X-Axis Repeatability: .008"
Approach Speed: 3.5 IPS
Working Speed: 0.39 IPS
Return Speed: 2.75 IPS
Main Motor: 5.5 HP, 3 Phase, 25 Amp, 220V
Hydraulic Oil: 20 Gallons
Dimensions (approx): 91" x 56" x 87"
Weight (approx): 5,350 Lbs.
Equipped With
Equipped with:
Estun E21, 2 Axis Controller
( 2 ) 24” front support arms

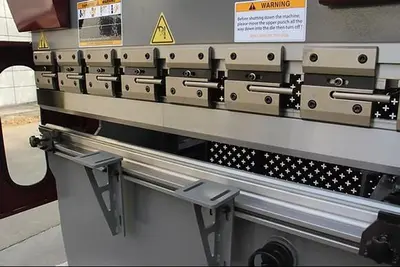

Quick release segmented ( American Style Tooling ) punch holder
Full Length Gooseneck Punch HRC 50 Full Length Vee Die with 6 assorted sizes HRC 50,1”,3/4”,5/8”, ½”, 3/8”, ¼”
Lntech Light Curtain System
Side and Back Safety Fence
Movable Foot Pedal with E21 screen, control panel ,and E-stop meet OSHA safety standard
Standard Features:
ISO 9001 certified
Meet OSHA and CE safety standard
Easy-to-use programmable Estun E21 control
Easy programming, stores 40 programs
Estun E21 control keep a piece count for large production run
Japan Yaskawa drive
Precision ball screws for 24” back gauge
Germany Rexroth hydraulic system
Schneider electrical components
All steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
Safety type foot pedal with E21 screen, control panel and E-stop switch
Safety 24V low voltage & overload protection
One year industrial warranty for par
