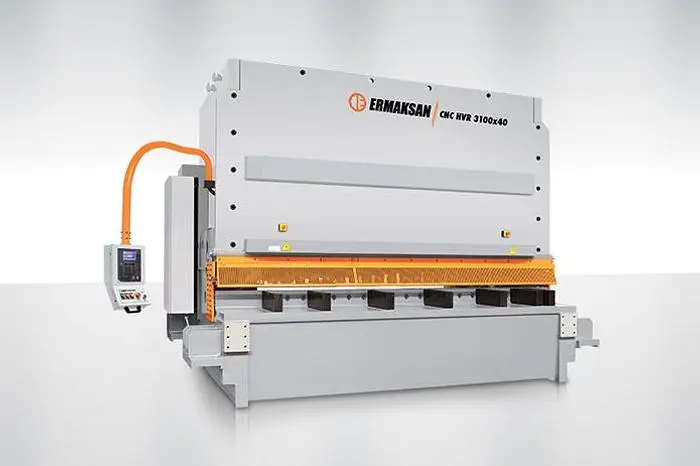

NEW ERMAKSAN HVR 3100-10

Overall Cutting Length: 161.5"
Maximum Cutting Capacity: 3/8" Mild Steel; 1/4" Stainless Steel
Speed: 12-22 SPM
Number of Hold Downs: 14
Holddown Type: Hydraulic
Cutting Angle: 0.02 - 2 Degrees
Blade Gap Adjustment: 0.02 - 0.5"
Throat Depth: 13.8"
Pressure: 26.4 Tons
Back Gauge Range: 39.37"
Back Gauge Speed: 4.33 IPS
Main Motor: 30 HP
Oil Capacity: 68.7 Gallons
Dimensions: 240" x 90" x 97"H
Dimensions w/Squaring & Support Arms: 240" x 125" x 97"H
Weight: 33,300 lbs.

Equipped With:

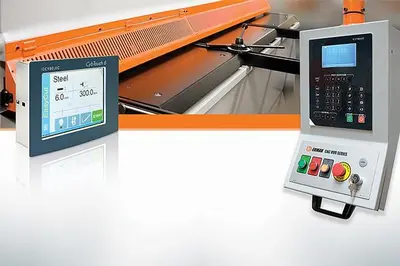

Ermaksan Touch Screen Controller
Automatic Blade Gap Adjustment
Safety Light Curtain
39" Squaring Arm

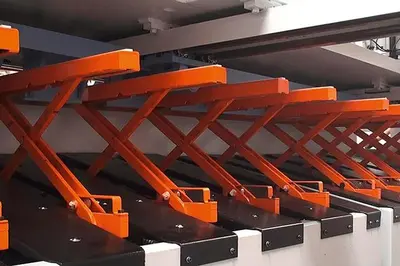

(2) Support Arms Foot Pedal
