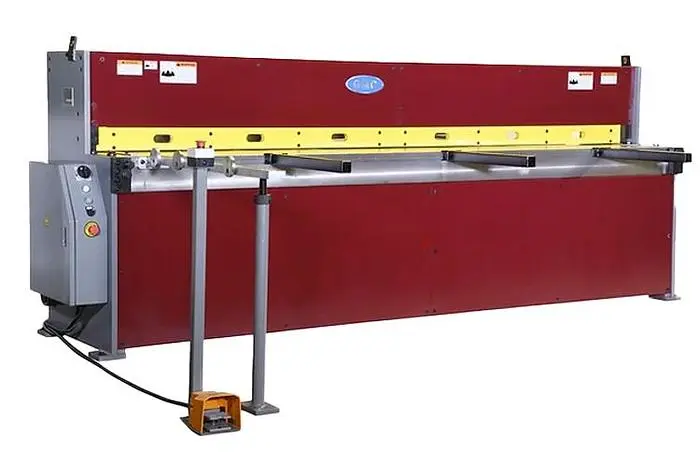

Product: Shears, Hydraulic
Overall Cutting Length: 120"
Maximum Cutting Capacity: Mild Steel 10’ x 14Ga. / Stainless Steel 10’ x 18 Ga / Soft Aluminum 10' x 10 Ga
Minimum Capacity: 26 Ga.
Blade Length: 10' 1"
Strokes Per Minute: 14-18
Throat: 16"
Working Height: 30.5"
Front Support Arm: 24"
Back Gauge Range: 26"
Rake of Upper Blade: 1.5 degrees
Oil Tank Capacity: 20 Gallson
Main Motor: 5-1/2 HP 220V/440V, 3PHASEe (Optional: 440V 3-Phase)
Overall Dimensions: 139 x 35 x 52"H
Weight (approx.): 5200 lbs.
Standard Features:
Taiwan machines
ISO 9001 certified
HD all steel construction for maximum rigidity
German logic quiet Rexroth hydraulic system
Adjustable stroke from 16-20 strokes per minute
60” long squaring arm with inch / mm scale
Spring hold-downs
High grade carbon/chrome alloy steel blades and hardened to 62 hrc,
2-edge indexable upper blade and 2-edge indexable bottom blade
Full length with full view finger guard
Front supports and (2) side gauges
Safety type foot pedal control
Jog, single continuous auto operation modes
One year warranty for parts
Standard Equipment:
26” manual back gauge with inch/metric dual scale & one side operated hand wheel
60” long squaring arm with inch / mm scale
2 each 24” front support arms
2 each 14” Side gauges with inlaid inch/metric dual scale
Spring independent hold-downs
Full length finger guard
Removable safety foot
